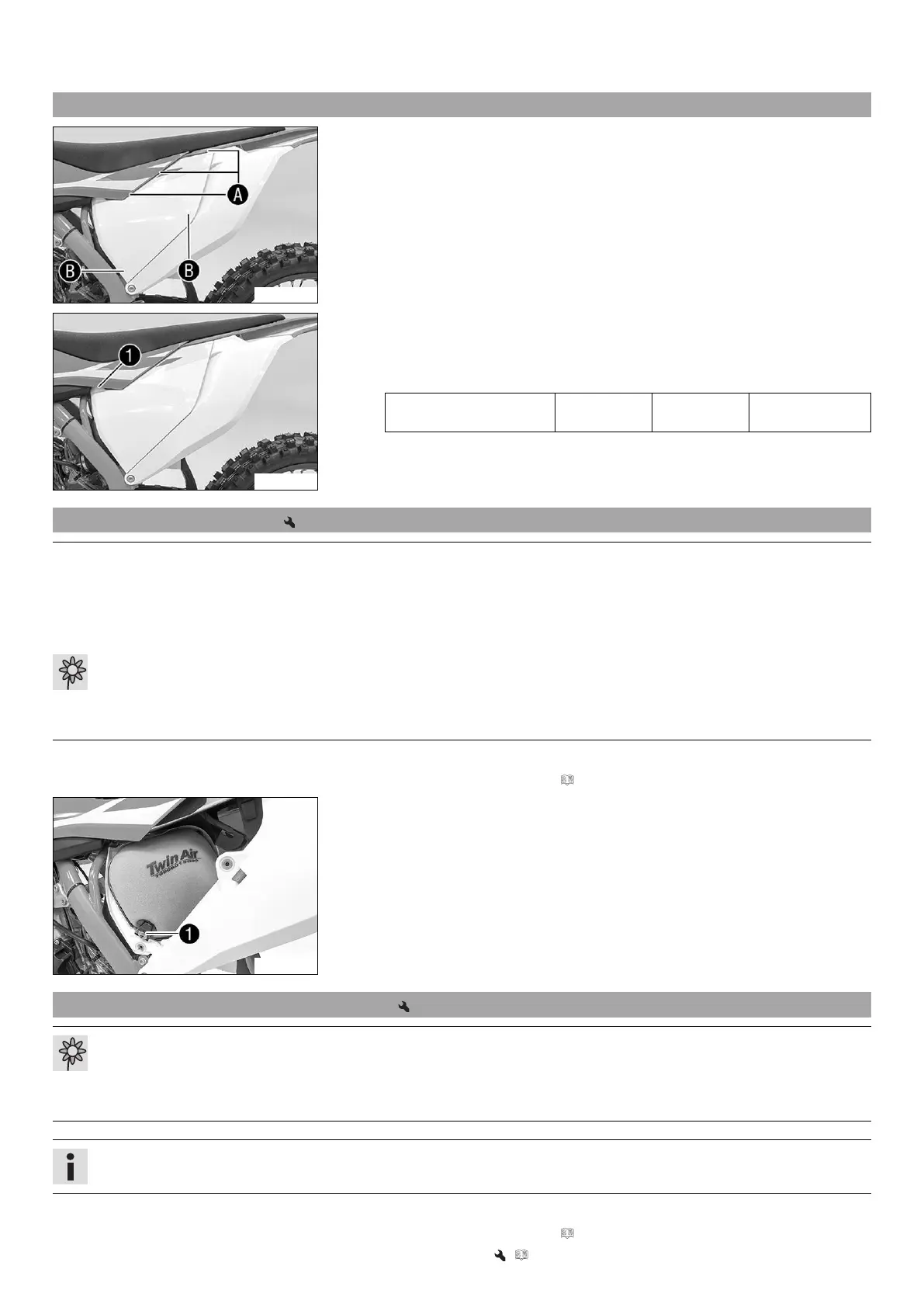

11 SERVICE WORK ON THE CHASSIS 49
11.23 Installing the air filter box cover
A00009-12
–
Insert the air filter box cover in area
A
and clip it into area
B
.
A00009-10
Condition
The air filter box cover is secured.
–
Mount and tighten screw
1
.
Guideline
Screw, air filter box cover EJOT PT
®
K60x20-Z
3 Nm
(2.2 lbf ft)
EJOT PT screw
(0017060204)
11.24 Removing the air filter
Note
Engine damage Unfiltered intake air has a negative effect on the service life of the engine.
Dust and dirt will enter the engine without an air filter.
– Never start to use the vehicle without an air filter.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regu-
lations.
Preparatory work
– Remove the air filter box cover. ( p. 48)
A00011-10
Main work
–
Detach retaining tab
1
. Remove air filter with air filter support.
– Take off air filter from air filter support.
11.25 Cleaning the air filter and air filter box
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regu-
lations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
Preparatory work
– Remove the air filter box cover. ( p. 48)
– Remove the air filter. ( p. 49)
