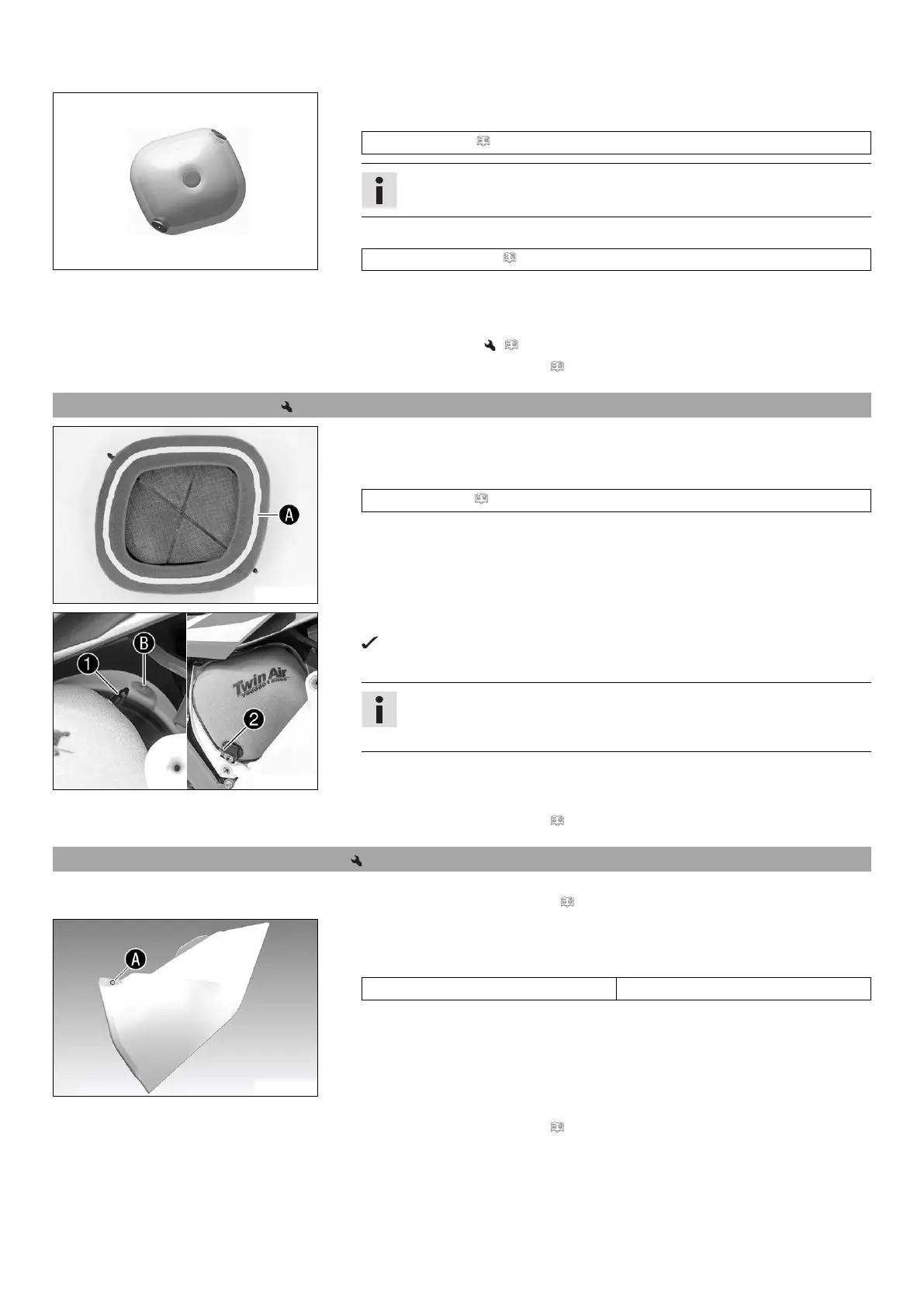

11 SERVICE WORK ON THE CHASSIS 50
K00518-01
Main work
– Wash the air filter thoroughly in special cleaning liquid and allow it to dry properly.
Air filter cleaner ( p. 105)
Info
Only squeeze the air filter to dry it; never wring it out.
– Oil the dry air filter with a high quality filter oil.
Oil for foam air filter ( p. 105)
– Clean the air filter box.
– Clean the intake flange and check it for damage and tightness.
Finishing work
– Install the air filter. ( p. 50)
– Install the air filter box cover. ( p. 49)
11.26 Installing the air filter
102178-10
Main work
– Mount the clean air filter on the air filter support.
–
Grease the air filter in area
A
.
Long-life grease ( p. 105)
A00032-10
–
Insert the air filter and position the top retaining pin
1
in bushing
B
.
The air filter is correctly positioned.
–
Secure the bottom retaining pin with holding tab
2
.
Info
If the air filter is not mounted correctly, dust and dirt may enter the engine
and result in damage.
Finishing work
– Install the air filter box cover. ( p. 49)
11.27 Securing the air filter box cover
Preparatory work
– Remove the air filter box cover. ( p. 48)
S00846-10
Main work
–
Drill a hole at marking
A
.
Guideline
Diameter 6 mm (0.24 in)
Finishing work
– Install the air filter box cover. ( p. 49)
