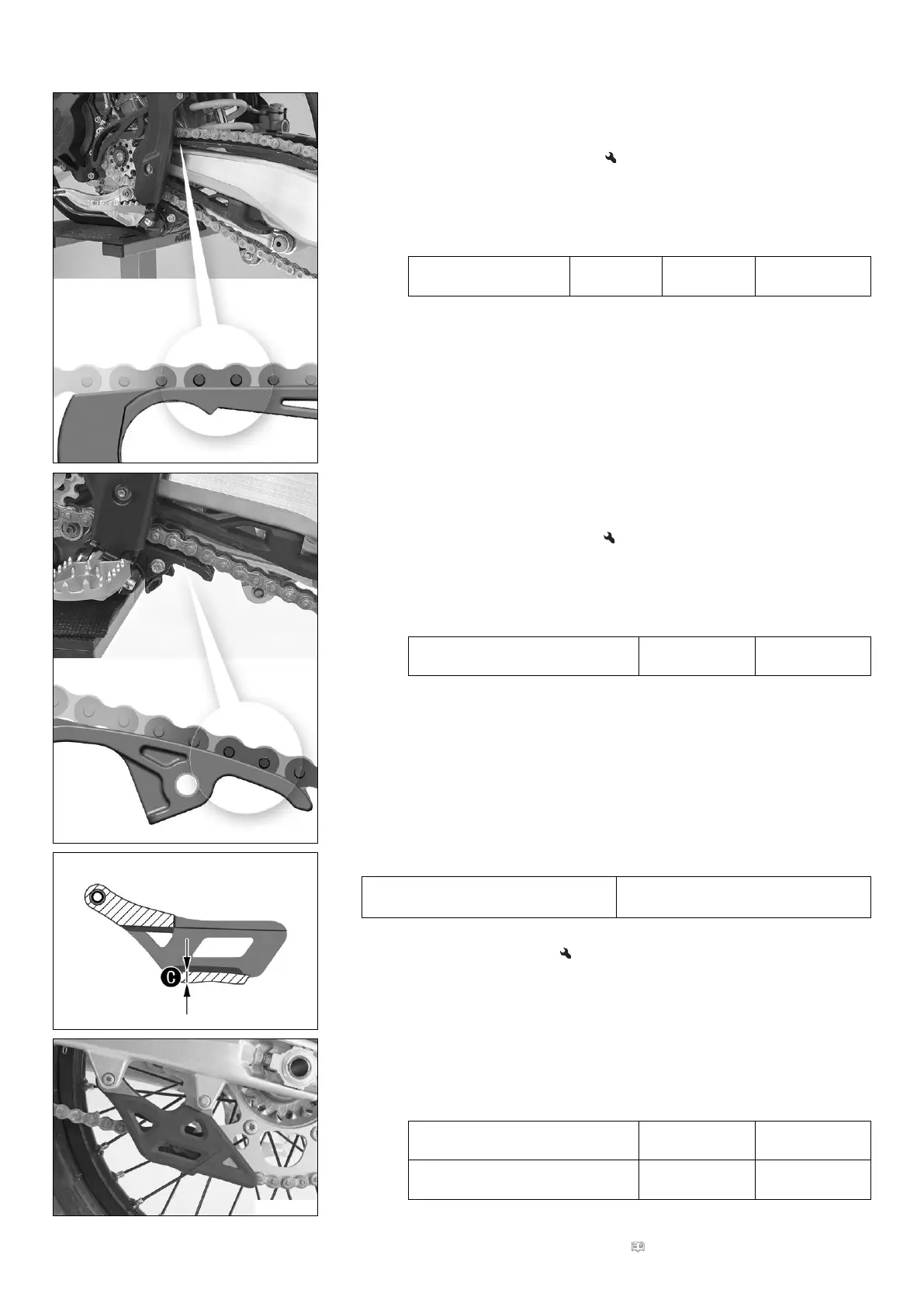

11 SERVICE WORK ON THE CHASSIS 57
M01166-10
– Check the chain sliding guard for wear.
» If the lower edge of the chain pins is in line with or below the chain sliding
guard:
– Change the chain sliding guard.
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the screws on the chain sliding guard.
Guideline
Screw, chain sliding
guard
M6 6 Nm
(4.4 lbf ft)
Loctite
®
243™
S01250-01
– Check the chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or below the chain sliding
piece:
– Change the chain sliding piece.
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the screw on the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
402421-10
–
Check the chain guide with a slide gauge for dimension
C
.
Minimum thickness
C
of the chain
guide
6 mm (0.24 in)
» If the measured value is less than the specification:
– Change the chain guide.
102192-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
Remaining nuts, chassis M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 38)
