MAINTENANCE WORK ON FRAME AND ENGINE 127

B00212-10

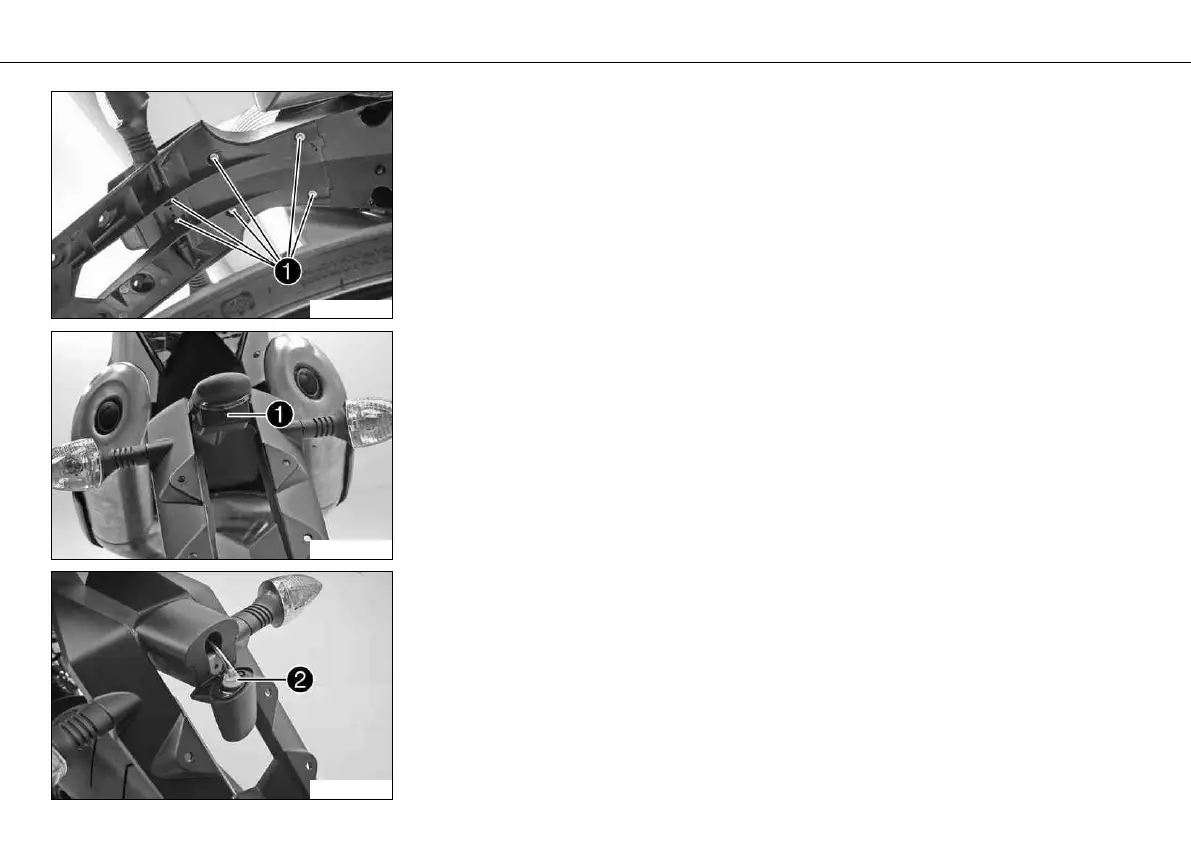

– Position the license plate holder.

– Mount and tighten screws .

B00214-10

(Super Duke R)

– Remove screw .

B00215-10

– Carefully pull holder  out of the license plate lamp.
