ELECTRICAL SYSTEM 124

B00638-10

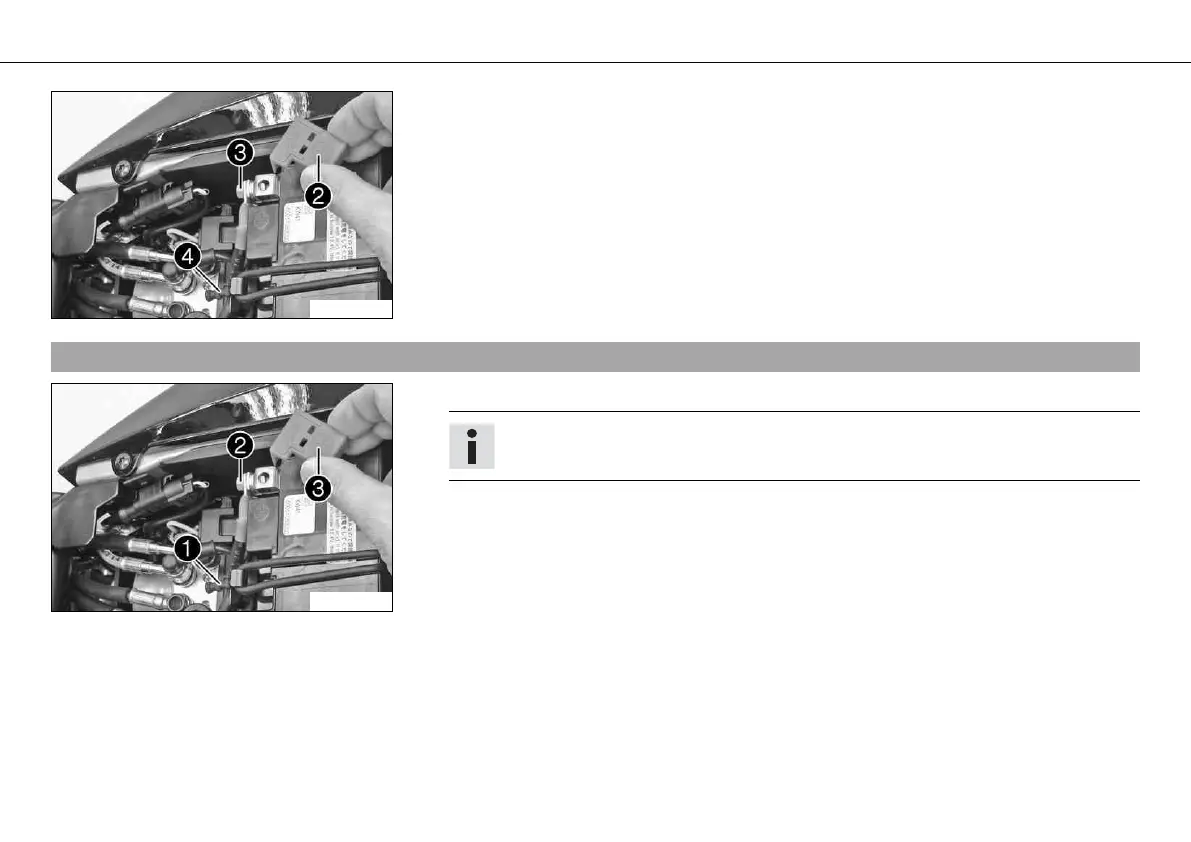

– Remove positive terminal cover .

– Disconnect the positive (plus) cable  of the battery.

– Detach rubber band .

– Pull the battery up and out of the battery rack.

13.2Installing the battery x

B00638-11

– Position the battery in the battery rack.

Info

The terminals of the battery must face in the direction of travel.

– Attach rubber band .

– Reconnect the positive (plus)  cable of the battery.

– Position positive terminal cover .
