SERIAL
NUMBE
RS
28
4.3

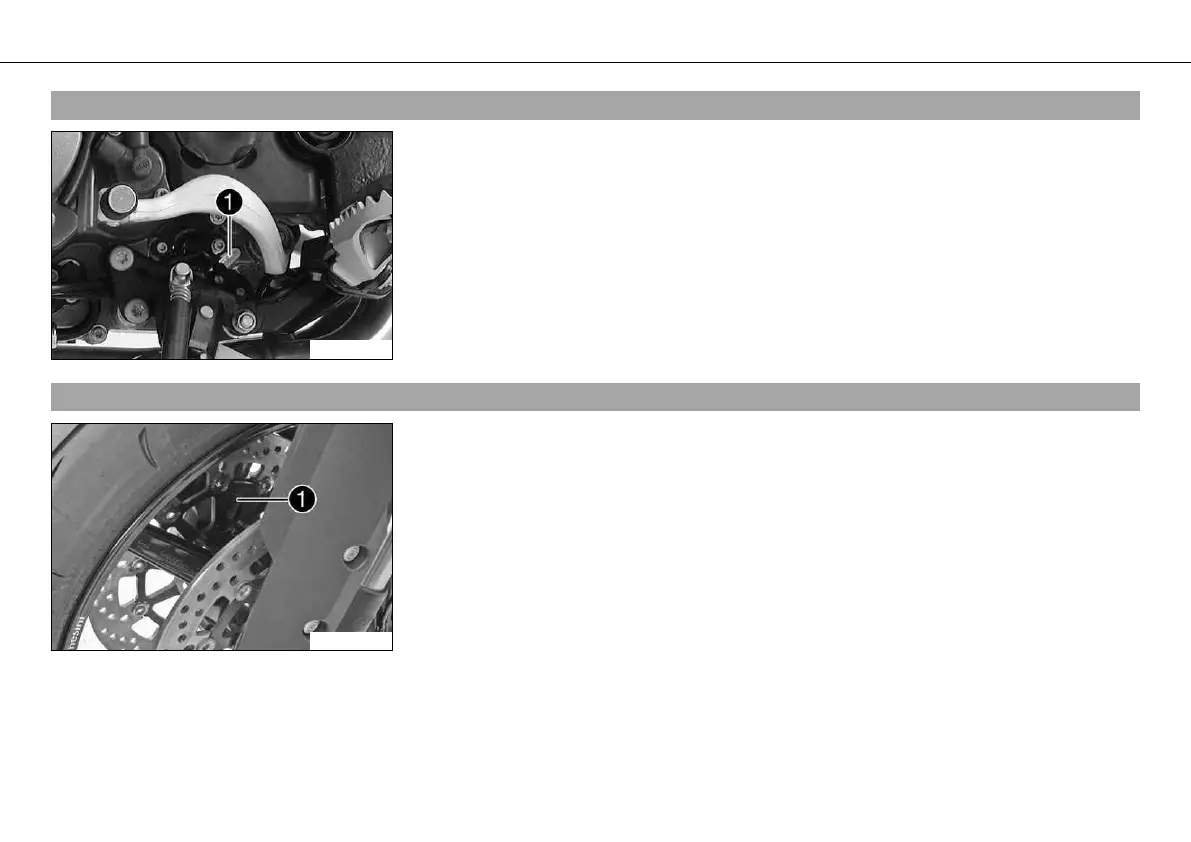

Engine
number
B00120-10
The
engine
number
is
stamped
on
the
left
side
of
the
engine
under
the
engine
sprocket.
4.4
Fork
part
number
B00606-10
The
fork
part
number
is
stamped
on
the
inner
side
of
the
fork
stub.
29
31
Table of Contents
Table of Contents
5
Means of Representation
