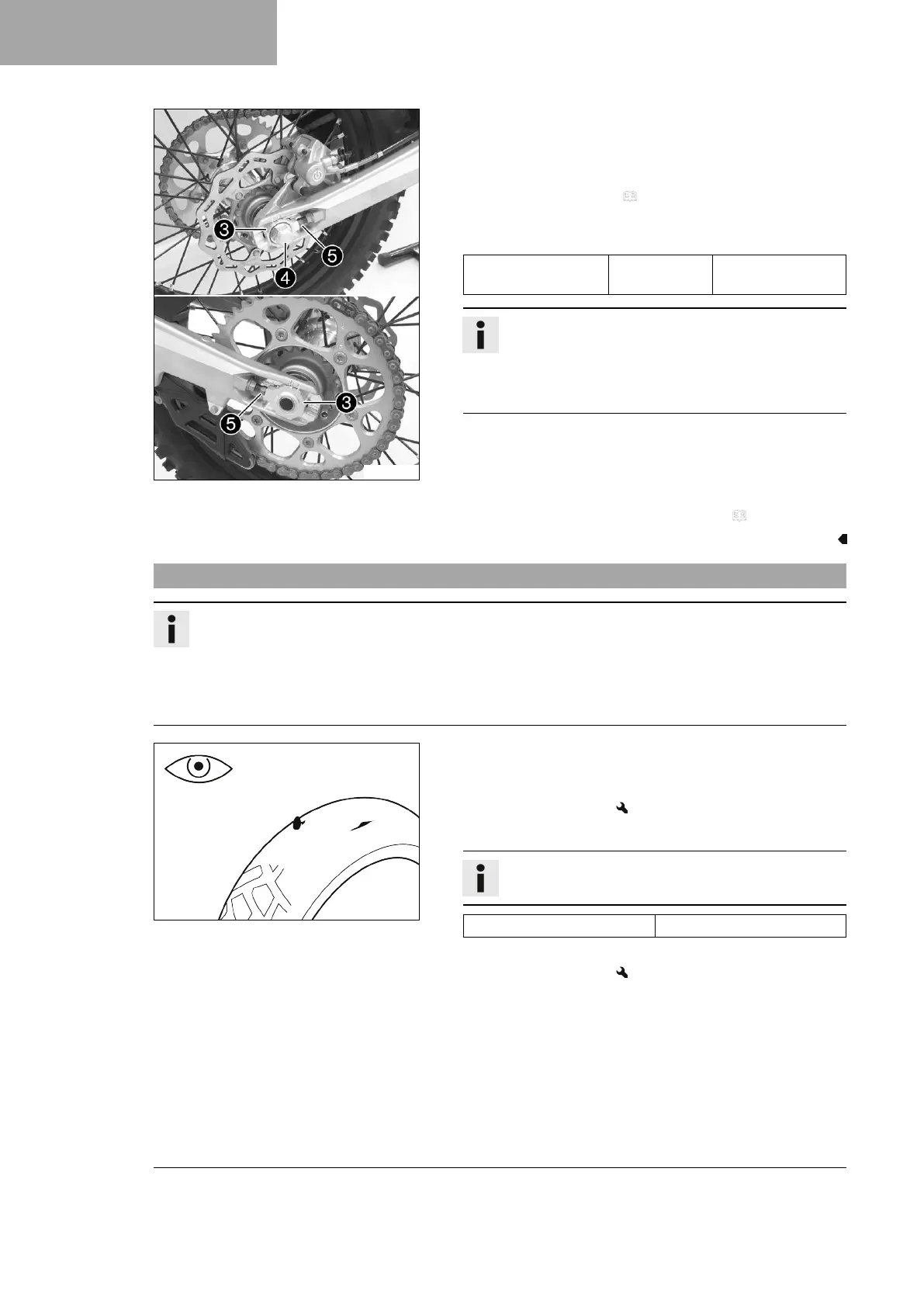

14 WHEELS, TIRES
106
V00368-10
–
Position chain adjuster
3
. Mount nut
4
, but do not tighten
it yet.
–
Make sure that chain adjusters
3
are fitted correctly on
adjusting screws
5
.
– Check the chain tension. ( p. 81)
–
Tighten nut
4
.
Guideline
Nut, wheel spindle,
rear
M22x1.5 80 Nm (59 lbf ft)
Info
The wide adjustment range of the chain adjusters
(32 mm (1.26 in)) enables different secondary ratios
with the same chain length.
Chain adjusters
3
can be turned by 180°.
– Operate the foot brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 59)
14.5 Checking the tire condition
Info
Only mount tires approved and/or recommended by KTM.
Other tires could have a negative effect on handling characteristics.
The type, condition, and pressure of the tires all have a major impact on the handling characteristic of the
motorcycle.
Worn tires have a negative effect on handling characteristics, especially on wet surfaces.
400602-10
– Check the front and rear tires for cuts, embedded objects, and
other damage.
» If the tires have cuts, run-in objects, or other damage:
– Change the tires.
– Check the tread depth.
Info
Adhere to the legally required minimum tread depth.
Minimum tread depth ≥ 2 mm (≥ 0.08 in)
» If the tread depth is less than the minimum tread depth:
– Change the tires.
