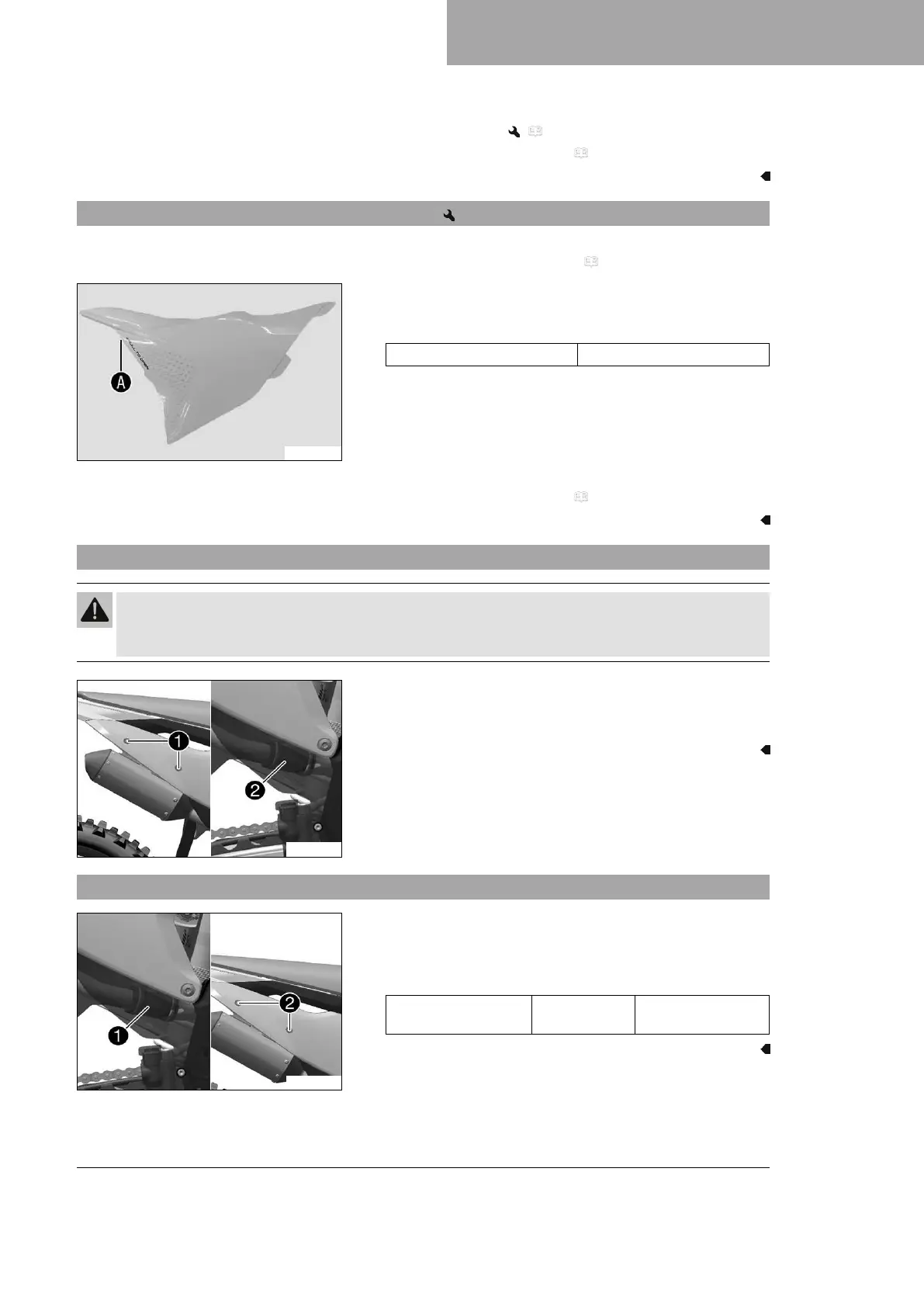

KTM 250 EXC 2024 User Manual

SERVICE WORK ON THE CHASSIS 12
75
Finishing work
– Install the air filter. ( p. 74)
– Install the air filter box cover. ( p. 73)
12.27 Preparing air filter box cover for securing
Preparatory work
– Remove the air filter box cover. ( p. 72)
W00334-10
Main work
–
Drill a hole at marking
A
.
Guideline
Diameter 6 mm (0.24 in)
Finishing work
– Install the air filter box cover. ( p. 73)
12.28 Removing the main silencer
Warning
Danger of burns The exhaust system gets hot when the vehicle is driven.
– Allow the exhaust system to cool down before performing any work on the vehicle.
S05505-10
–
Remove screws
1
.
–
Pull off the main silencer with exhaust sleeve
2
and the
spring ring from the manifold.
12.29 Installing the main silencer
S05506-10
–
Mount the main silencer with rubber sleeve
1
and the spring
rings.
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

KTM 250 EXC 2024 Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	249 cm³
Bore x Stroke	66.4 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	960 mm
Front Suspension	Ø 48 mm
Fuel Tank Capacity	9.0 liters
Rear Suspension	WP XACT shock absorber with linkage
