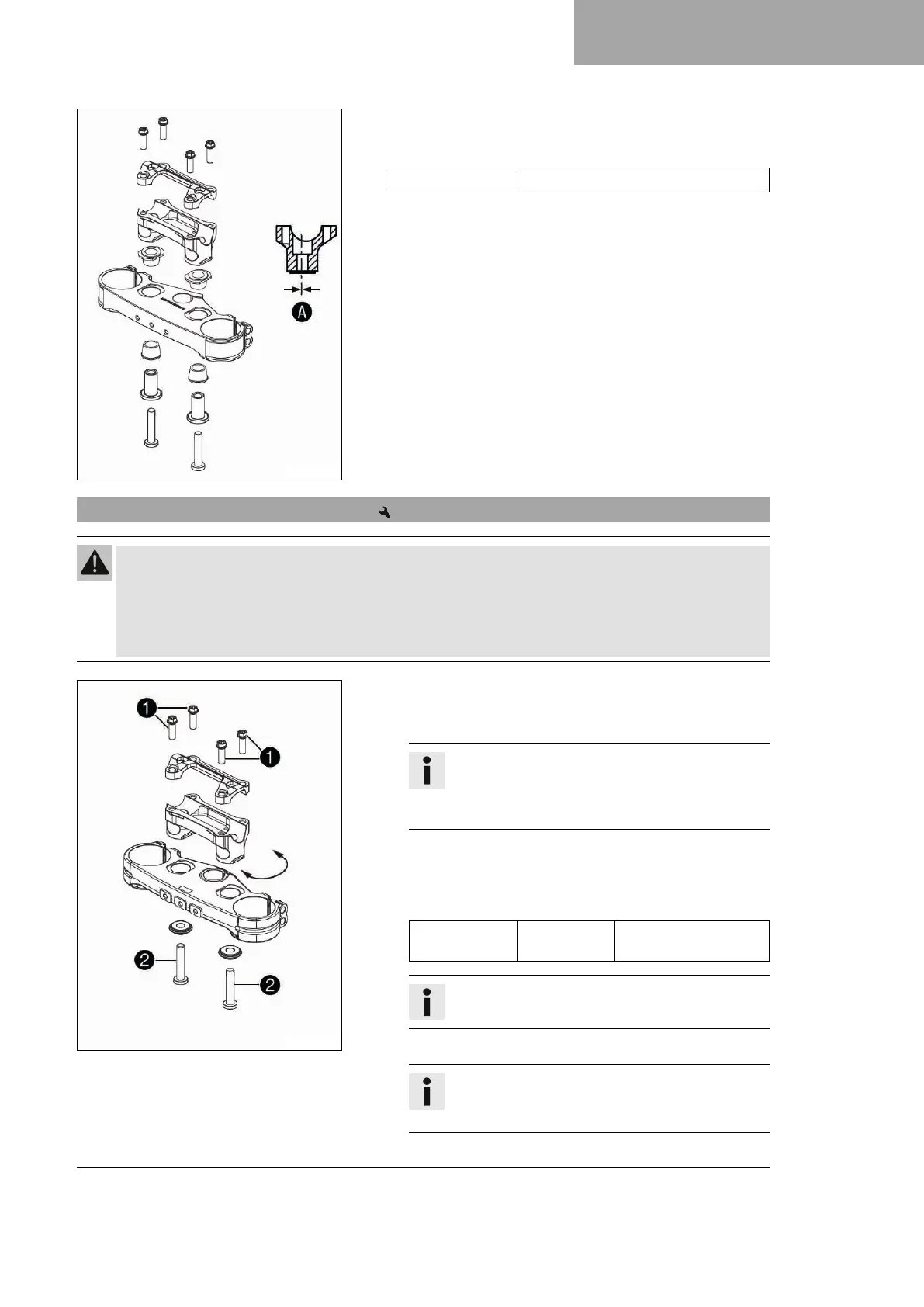

TUNING THE CHASSIS 11
57
W00322-10
(Option: Triple clamp milled)
The holes on the handlebar support are placed at a distance
of
A
from the center.
Hole distance
A
3.5 mm (0.138 in)
The handlebar support can be mounted in two different posi-
tions.
11.15 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
W00324-10
(Option: Triple clamp forged)
–
Remove screws
1
. Take off the handlebar clamp. Take
off the handlebar and lay it to one side.
Info
Cover the components to protect them against dam-
age.
Do not kink the cables or lines.
–
Remove screws
2
. Take off the handlebar support.
– Place the handlebar support in the required position.
Mount and tighten screws
2
.
Guideline
Screw, handle-
bar support
M10 40 Nm (29.5 lbf ft)
Loctite
®
243™
Info
Position the handlebar support so that it is even.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
