15 ELECTRICAL SYSTEM
122

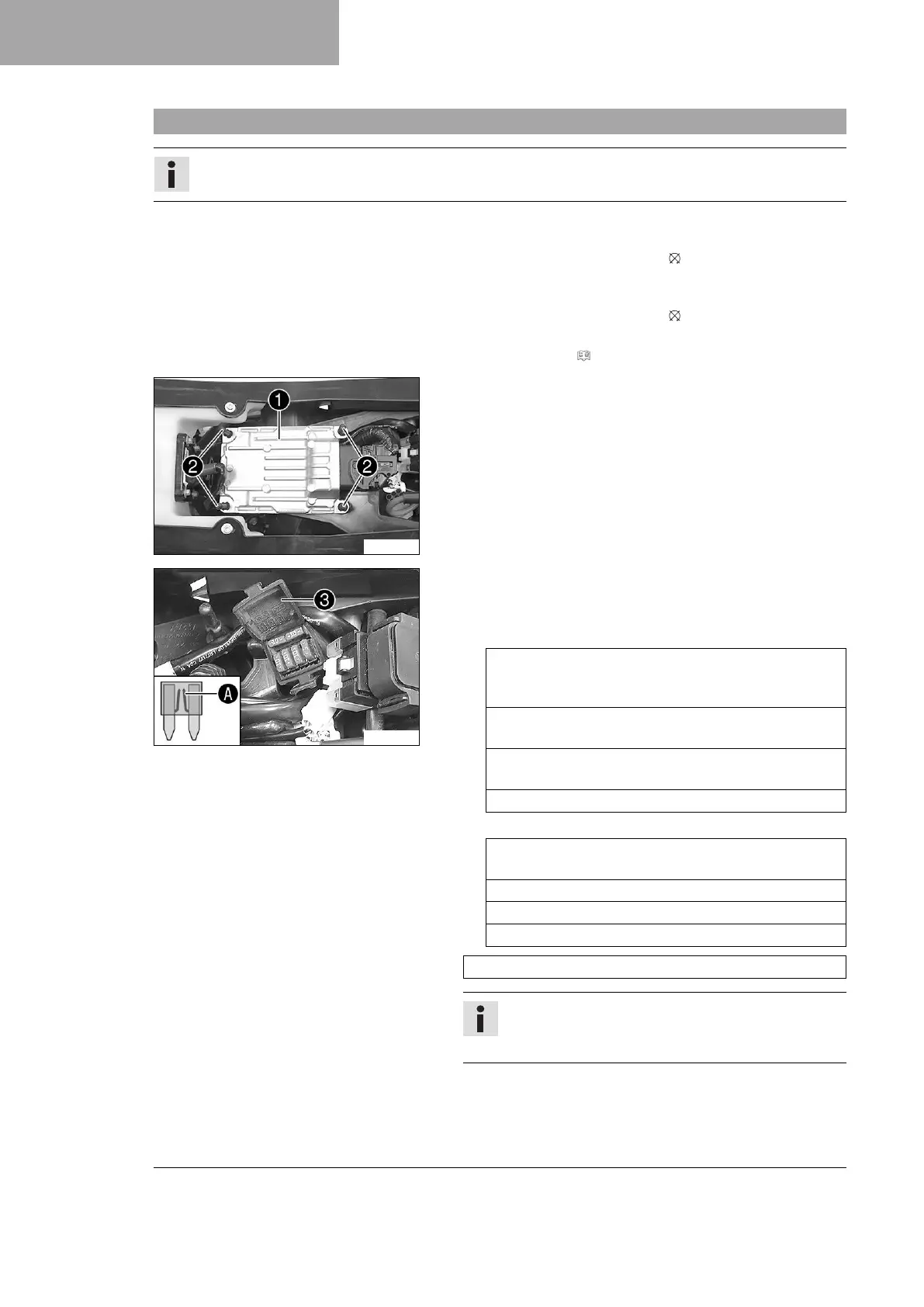

15.5 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
(All EXC models)
– Press and hold the kill switch while the engine is idling
until the engine stops.
(250 XC‑W TPI US)
– Press and hold the kill switch while the engine is idling
until the engine stops.
– Remove the seat. ( p. 80)
E00874-10
Main work
–
Pull the EFI control unit
1
upward off the rubber plugs
2
and hang to the side.
E00875-10
–
Open fuse box cover
3
.
– Remove the defective fuse.
Guideline
(All EXC models)
Fuse 1 - 10 A - EFI control unit, lambda sensor,
oil pump, combination instrument, fuel injection,
diagnostics connector
Fuse 2 - 10 A - horn, brake light, radiator fan (optional),
turn signal (optional)
Fuse 3 - 10 A - high beam, low beam, parking light, tail
light, license plate lamp
Fuse 4 - 5 A - fuel pump
(250 XC‑W TPI US)
Fuse 1 - 10 A - EFI control unit, oil pump, combination
instrument, fuel injection, diagnostics connector
Fuse 2 - 10 A - radiator fan (optional)
Fuse 3 - 10 A - low beam, parking light, tail light
Fuse 4 - 5 A - fuel pump
Fuses res - 10 A - spare fuse
Info
You can recognize a faulty fuse by a burned-out fuse
wire
A
.
