11 TUNING THE CHASSIS
63

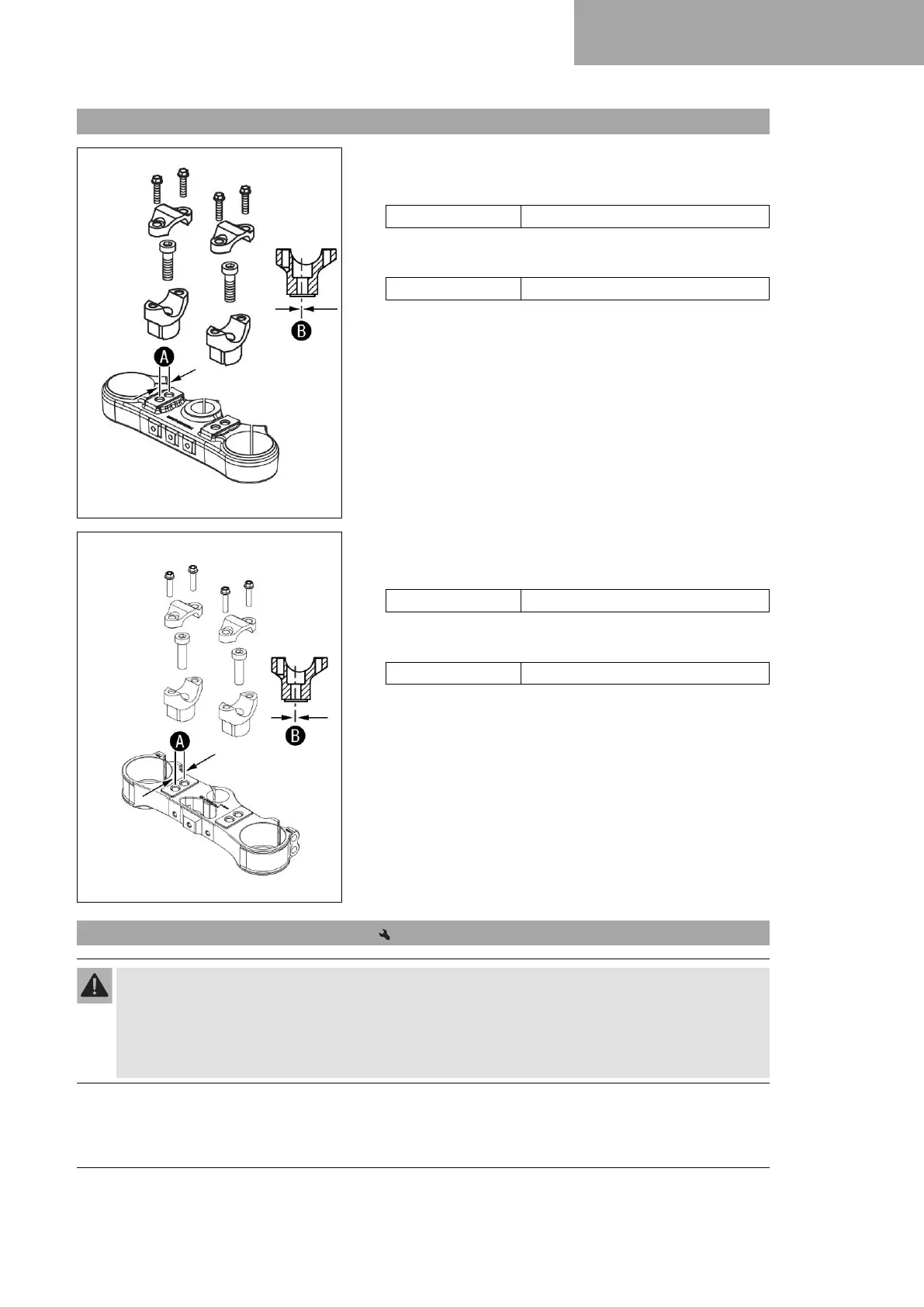

11.15 Handlebar position
M00993-10
(All standard EXC/XC-W models)
On the upper triple clamp, there are 2 holes at a distance
of
A
to each other.
Hole distance A 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance
of
B
from the center.
Hole distance B 3.5 mm (0.138 in)
The handlebar can be mounted in four different positions. This
allows the handlebar to be mounted in the most comfortable
position for the rider.
M00987-10
(All Six Days models)
On the upper triple clamp, there are 2 holes at a distance
of
A
to each other.
Hole distance A 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance
of
B
from the center.
Hole distance B 3.5 mm (0.138 in)
The handlebar can be mounted in four different positions. This
allows the handlebar to be mounted in the most comfortable
position for the rider.
11.16 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
