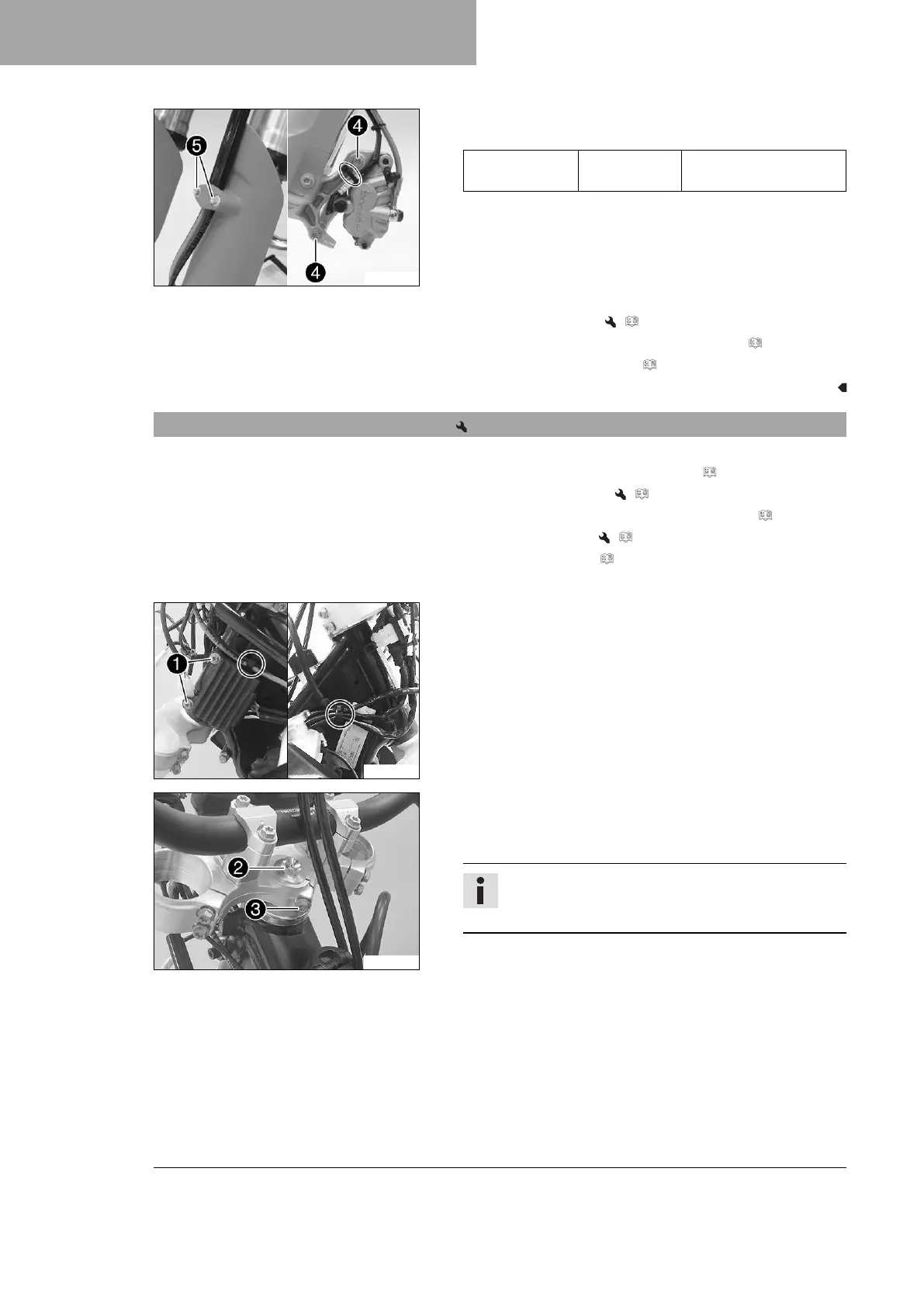

12 SERVICE WORK ON THE CHASSIS
70
E00375-11
–
Position the brake caliper, and mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable tie(s).
– Position the brake line, wiring harness, and clamp. Mount and
tighten screws
5
.
Finishing work
– Install the front wheel. ( p. 112)
– Install the headlight mask with the headlight. ( p. 124)
– Check the headlight setting. ( p. 126)
12.9 Removing the lower triple clamp (All standard EXC/XC-W models)
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 66)
– Remove the front wheel. ( p. 111)
– Remove the headlight mask with the headlight. ( p. 123)
– Remove the fork legs. ( p. 68)
– Remove front fender. ( p. 78)
– Remove the handlebar cushion.
E00920-10
Main work
–
Remove screws
1
and hang the voltage regulator to the side.
– Open the cable holder in front of the left and right radiator and
detach the wiring harness.
E00921-10
–
Remove screw
2
.
–
Loosen screw
3
. Take off the upper triple clamp with the
handlebar and set it aside.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
