12 SERVICE WORK ON THE CHASSIS
74
– Check that the wiring harness, throttle cables, and brake and
clutch lines can move freely and are routed correctly.
– Check the play of the steering head bearing. ( p. 76)
– Remove the motorcycle from the lift stand. ( p. 66)
– Check the headlight setting. ( p. 126)

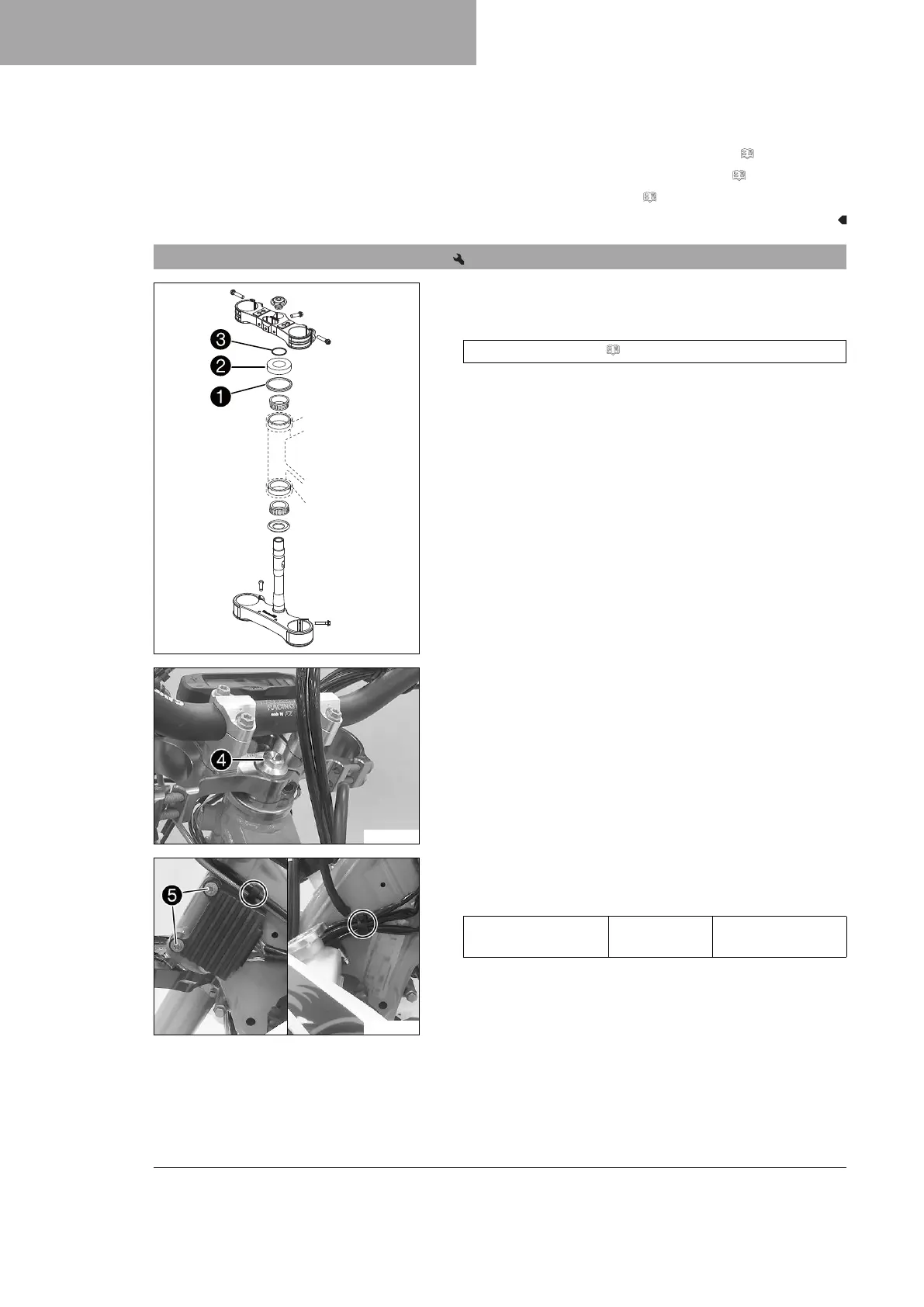

12.12 Installing the lower triple clamp (All Six Days models)
B01218-10
Main work
– Clean the bearing and sealing elements, check for damage,
and grease.
High viscosity grease ( p. 164)
– Insert the lower triple clamp with the steering stem. Mount the
upper steering head bearing.
–
Check whether upper steering head seal
1
is correctly posi-
tioned.
–
Mount protective ring
2
and O-ring
3
.
E00927-10
– Position the upper triple clamp with the handlebar.
–
Mount screw
4
but do not tighten yet.
– Position the clutch line and wiring harness.
E00923-11
– Position the voltage regulator, and mount and tighten
screws
5
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Secure wiring harnesses with cable holders.
