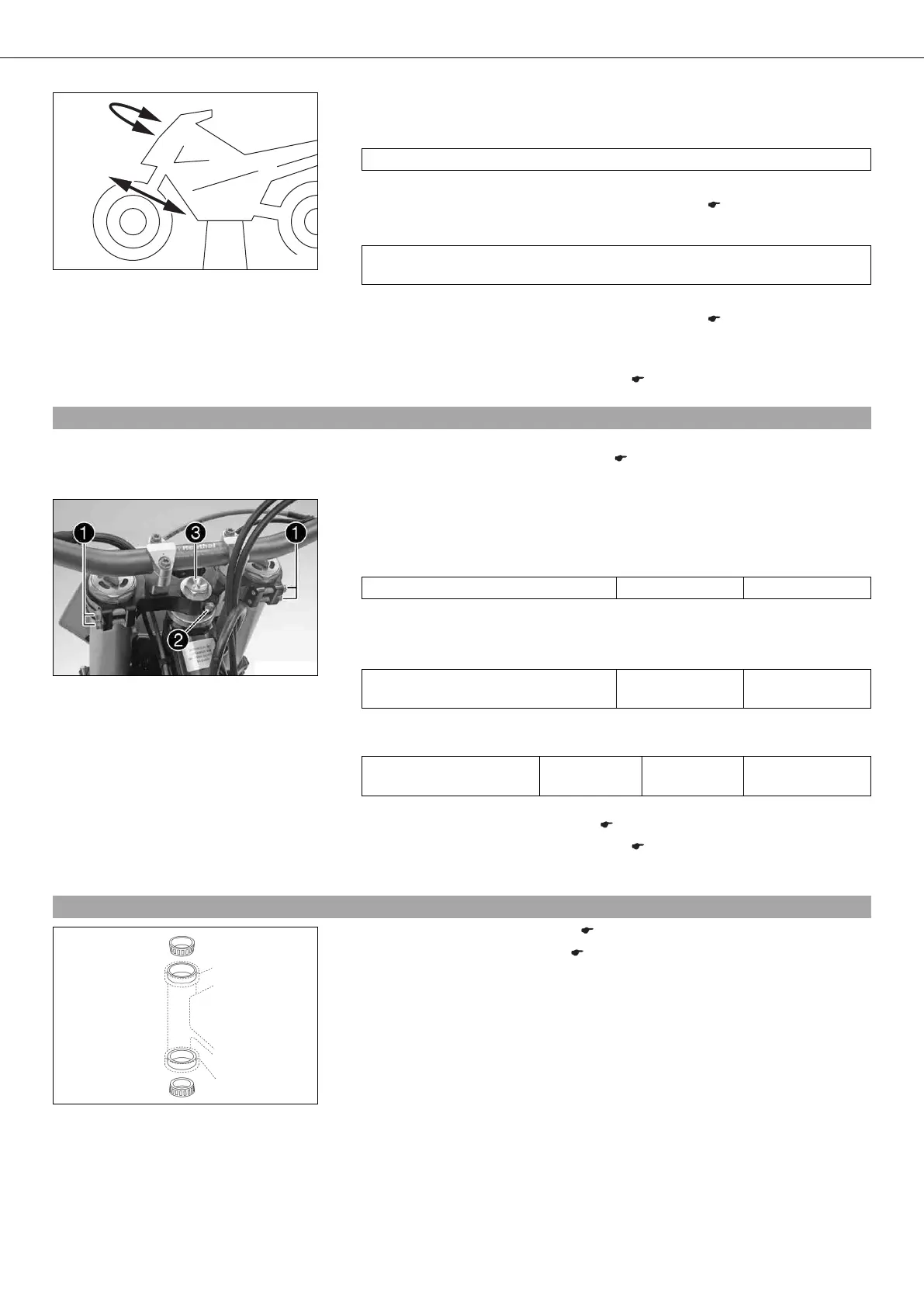

SERVICE WORK ON THE CHASSIS 38
400738-11
Main work
– Move the handlebar to the straight-ahead position. Move the fork legs to and fro in
the direction of travel.
No play should be noticeable in the steering head bearing.
» If there is noticeable play present:
–
Adjust the play of the steering head bearing. x ( p. 38)
– Move the handlebar to and fro over the entire steering range.
The handlebar must be able to move easily over the entire steering range. No
resting locations should be noticeable.
» If click positions are noticeable:
–
Adjust the play of the steering head bearing. x ( p. 38)
– Check the steering head bearing and change if necessary.
Subsequent work
– Remove the motorcycle from the lift stand. ( p. 32)
10.14Adjusting the play of the steering head bearing x
Preliminary work
– Raise the motorcycle with the lift stand. ( p. 32)
– Remove the handlebar cushion.
101277-10
Main work
– Loosen screws 1. Remove screw 2.
– Loosen and retighten screw 3.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp to avoid strains.
– Fully tighten screws 1.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
– Mount and tighten screw 2.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
Subsequent work
– Check the steering head bearing play. ( p. 37)
– Remove the motorcycle from the lift stand. ( p. 32)
– Mount the handlebar cushion.
10.15Greasing the steering head bearing x
800010-10
–
Remove the lower triple clamp. x ( p. 35)
–
Install the lower triple clamp. x ( p. 36)
