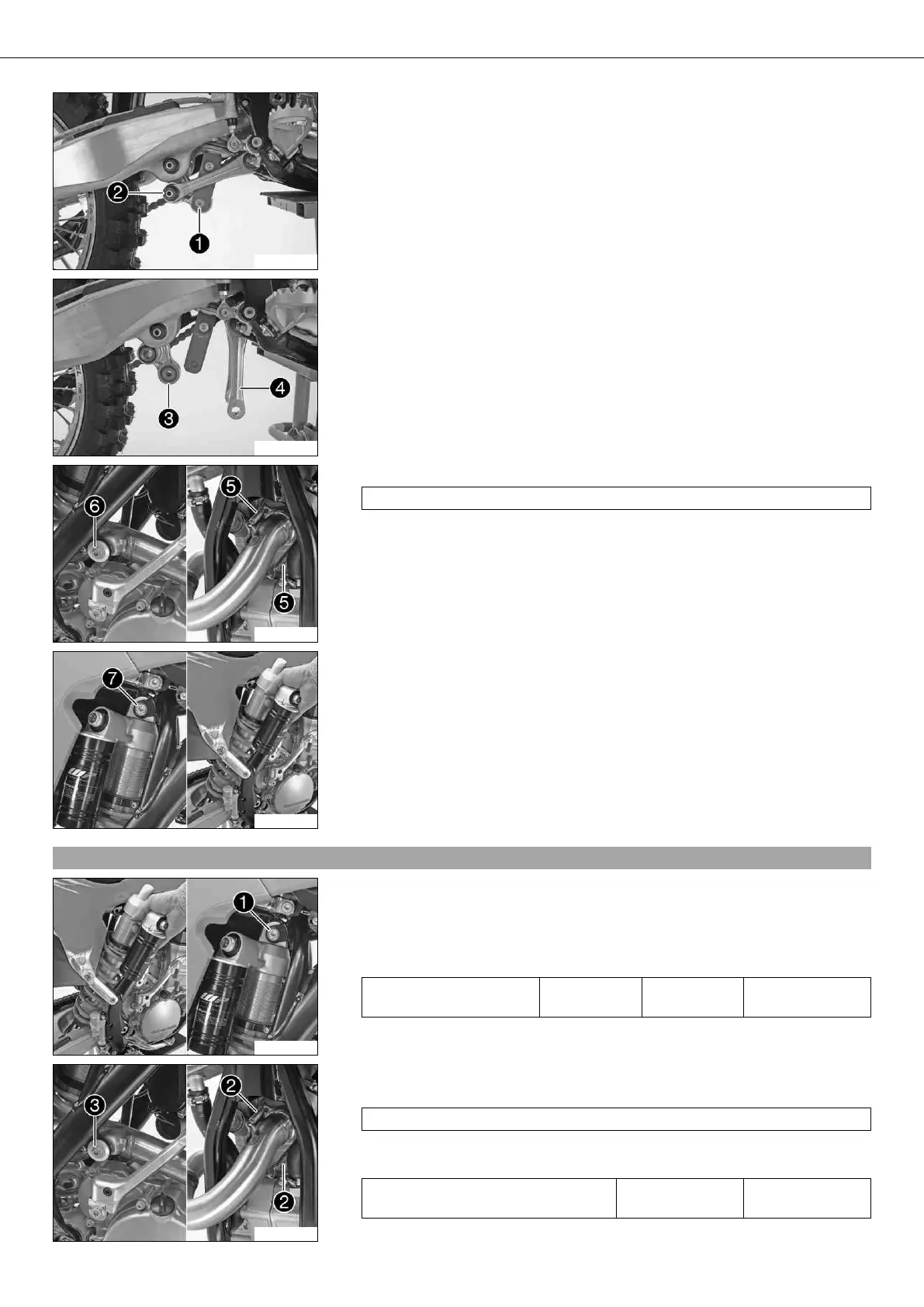

SERVICE WORK ON THE CHASSIS 40
100914-10
Main work
– Remove screw 1.
– Remove screw cap 2.
100915-10
– Press angle lever 3 toward the rear.
– Press linkage lever 4 downward.
100916-10
– Detach springs 5.
Spring hooks (50305017000)
– Remove screw 6.
– Press the shock absorber toward the rear and remove the exhaust manifold.
100917-10
– Remove screw 7.
– Remove the shock absorber from the top.
10.21Installing the shock absorber x
100918-10
Main work
– Insert the shock absorber from above.
– Position the shock absorber.
– Mount and tighten screw 1.
Guideline
Screw, top shock absorber M10 60 Nm
(44.3 lbf ft)
Loctite
®
2701
100916-11
– Position the exhaust manifold.
– Attach springs 2.
Spring hooks (50305017000)
– Mount and tighten screw 3.
Guideline
Remaining screws, chassis M8 25 Nm
(18.4 lbf ft)
