SERVICE WORK ON THE CHASSIS 39

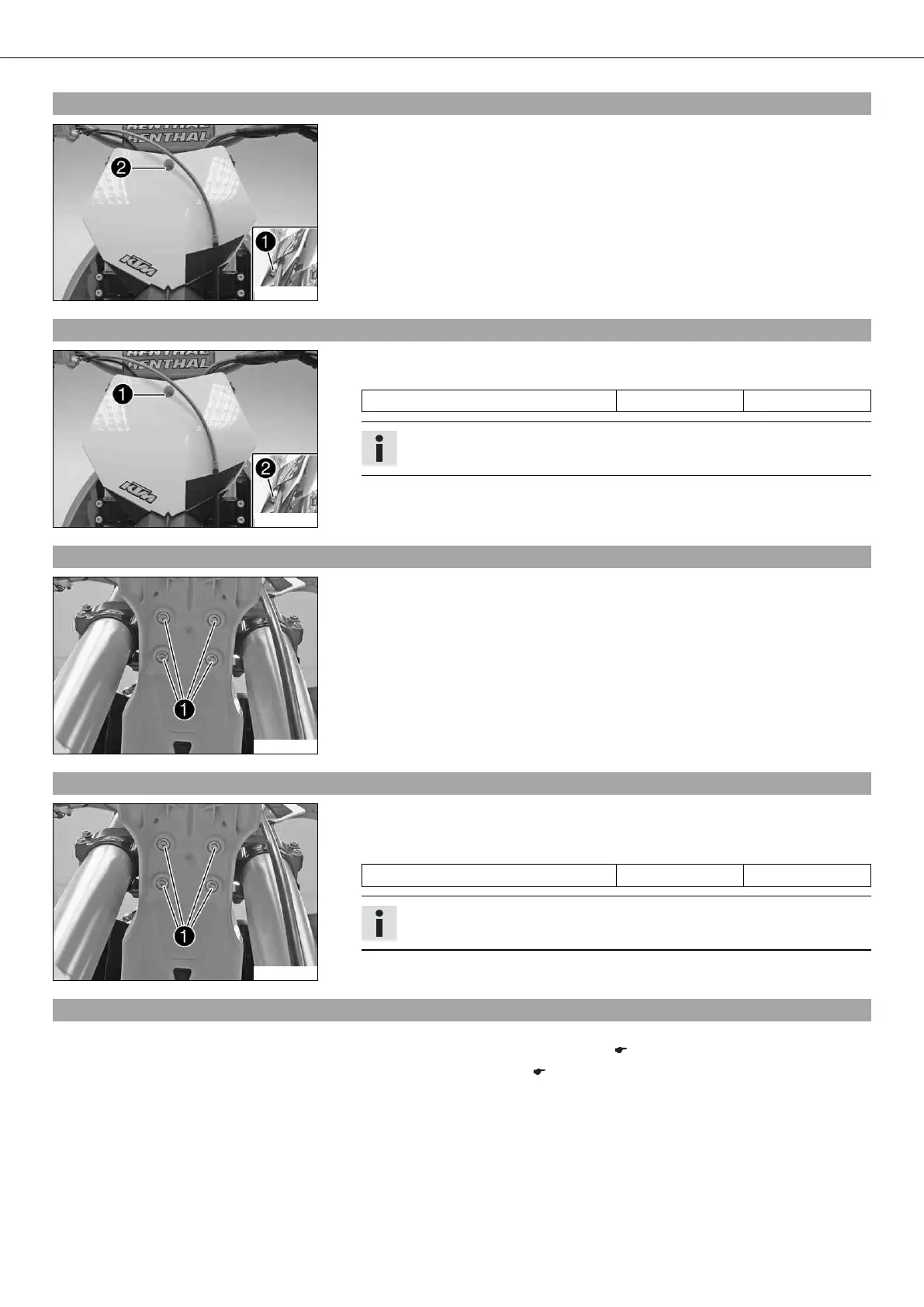

10.16Removing the start number plate
101278-10
– Remove screw 1 and take off the clamp.
– Remove screw 2. Take off the start number plate.
10.17Installing the start number plate
101278-11
– Position the start number plate. Mount and tighten screw 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Info
Make sure that the holding lugs engage in the fender.
– Position the brake line and clamp. Mount and tighten screw 2.
10.18Removing the front fender
B00307-10
– Remove screws 1. Remove the front fender.
– Ensure that the spacers remain in place.
10.19Installing the front fender
B00307-10
– Ensure that the spacers are mounted in the fender.
– Position the front fender. Mount and tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Info
Make sure the holding lugs engage in the start number plate.
10.20Removing the shock absorber x
Preliminary work
– Raise the motorcycle with the lift stand. ( p. 32)
– Remove the main silencer. ( p. 43)
