KTM 390 DUKE 2024 User Manual

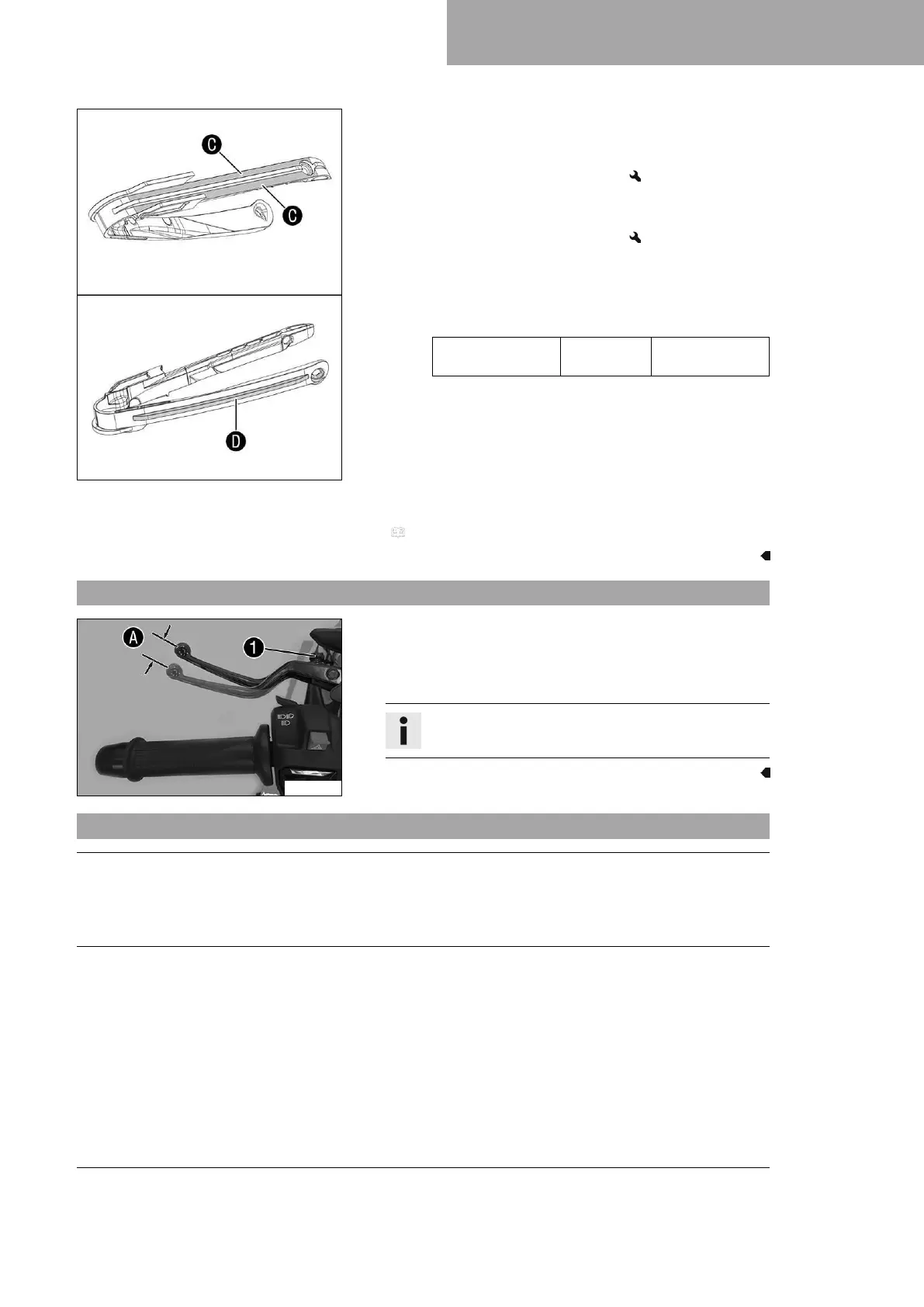

SERVICE WORK ON THE CHASSIS 12
73
T04634-01
– Check the chain sliding guard for wear.
» If continuous signs of wear to the chain are visible on the
chain sliding guard in the area
C
marked:
– Change the chain sliding guard.
» If the chain sliding guard is highly worn on the underside
in the marked area
D
:
– Change the chain sliding guard.
– Check that the chain sliding guard is firmly fitted.
» If the chain sliding guard is loose:
– Tighten the screw of the chain sliding guard.
Guideline
Screw, chain
guard
M5 7 Nm (5.2 lbf ft)
Finishing work
– Remove the rear of the motorcycle from the lifting gear.
( p. 66)
12.15 Adjusting the basic position of the clutch lever
W00568-11
– Adjust the basic position of the clutch lever to your hand size
by turning adjusting wheel
1
.
– Push the clutch lever forward and turn the adjusting wheel
until a suitable position is reached in area
A
.
Info
Do not make any adjustments while riding.
12.16 Checking the clutch lever play
Note
Clutch damage If there is no free travel by the clutch lever, the clutch will begin to slip.
– Check the free travel of the clutch lever each time before using the motorcycle.
– Adjust the free travel of the clutch lever when necessary in accordance with the specification.

KTM 390 DUKE 2024 Specifications

General

Displacement	399 cc
Compression Ratio	12.6:1
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Frame	Steel trellis frame, powder coated
Rear Suspension	WP APEX Monoshock
Front Tire	110/70 R17
Rear Tire	150/60 R17
Wheelbase	1, 357 mm ± 15 mm
Seat Height	820 mm
Engine Type	Single-cylinder, 4-stroke
Power	44 hp
Torque	39 Nm
Clutch	PASC anti-hopping clutch, mechanically operated
Front Suspension	WP APEX 43 mm
Front Brake	4-piston radial fixed caliper, 320 mm disc
Rear Brake	Single-piston floating caliper, brake disc
ABS	Bosch 9.1MB
Fuel Tank Capacity	13.4 liters
Instruments	TFT display
Lighting	LED
Riding Modes	Street, Rain
