ELECTRICAL SYSTEM 15
89
T04608-01
Main work
–

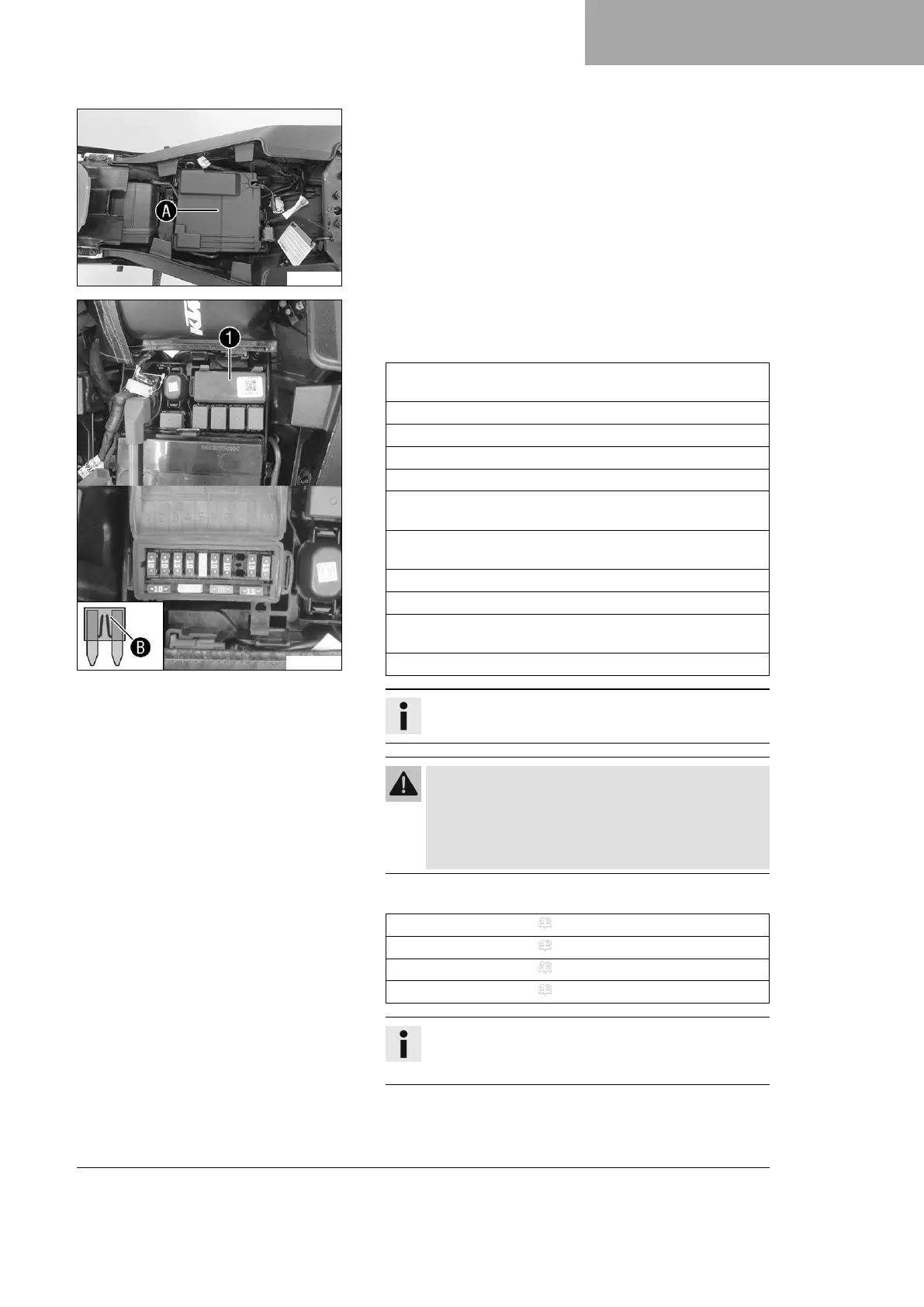

Remove battery cover
A
.
A01475-10
–
Open fuse box cover
1
.
– Remove the faulty fuse.
Guideline
Fuse 1- 10 A - combination instrument, brake light, high
beam, tail light
Fuse 2 - 10 A - combination instrument
Fuse 3 - 15 A - power relay
Fuse 4 - 10 A - start auxiliary relay, horn
Fuse 5 - 20 A - radiator fan
Fuse 6 - 10 A - headlight unit, parking light, license plate
lamp
Fuse 7 - 10 A - engine control unit, ABS control unit, Con-
nectivity Unit
Fuse 8 - not assigned
Fuse 9 - 10 A - permanent positive for accessories (ACC1)
Fuse 10 - 10 A - ignition positive for accessories (ACC2),
USB
Fuse SPARE - 10 A/15 A/20 A/30 A - spare fuses
Info
A faulty fuse has a burned-out fuse wire
B
.
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 114)
Fuse (75011088015) ( p. 114)
Fuse (75011088020) ( p. 114)
Fuse (75011088030) ( p. 114)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check the function of the electrical power consumer.
–
Close the fuse box cover
1
.
