ELECTRICAL SYSTEM 15
121
E00360-10
Main work

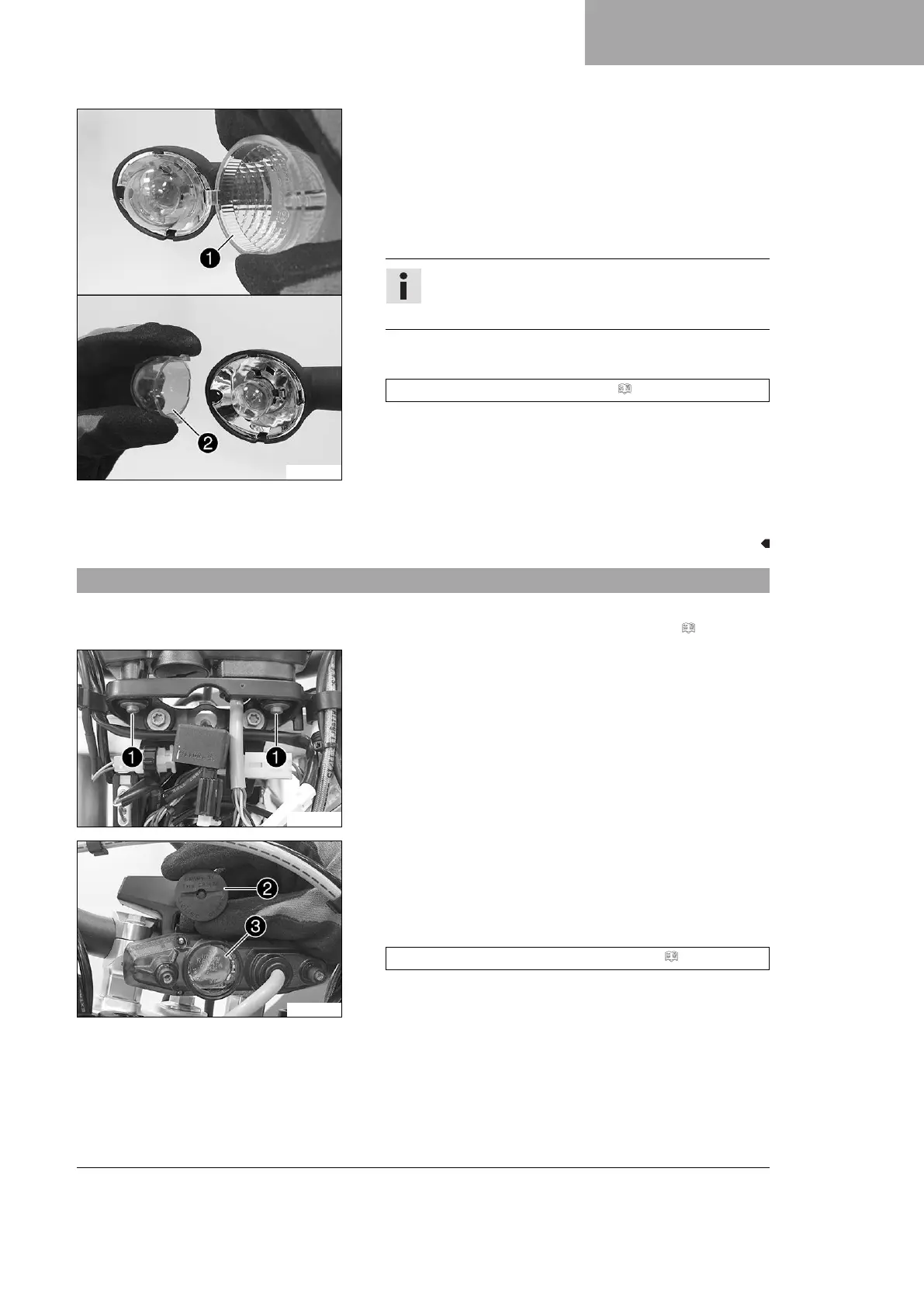

– Remove the screw on the rear of the turn signal housing.
–
Carefully remove diffuser
1
.
–
Lightly squeeze orange cap
2
in the area of the holding lugs
and take it off.
– Press the turn signal bulb carefully into the socket, turn it
counterclockwise by about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it
free from grease.
– Press the new turn signal bulb carefully into the socket and
turn it clockwise until it stops.
Turn signal (R10W / socket BA15s) ( p. 151)
– Mount the orange cap.
– Position the diffuser.
– Insert the screw and first turn it counterclockwise until it
engages in the thread. Tighten the screw slightly.
Finishing work
– Check that the turn signal system is functioning properly.
15.12 Changing the combination instrument
Preparatory work
– Remove the headlight mask with the headlight. ( p. 118)
V00370-10
Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.
V00371-10
–
Using a coin, turn protection cap
2
all the way counterclock-
wise and remove it.
–
Remove combination instrument
3
.
– Insert the combination instrument with the label facing
upward.
Combination instrument battery (CR 2430) ( p. 151)
– Check the O-ring of the protection cap for correct seating.
