BRAKE SYSTEM 13
95

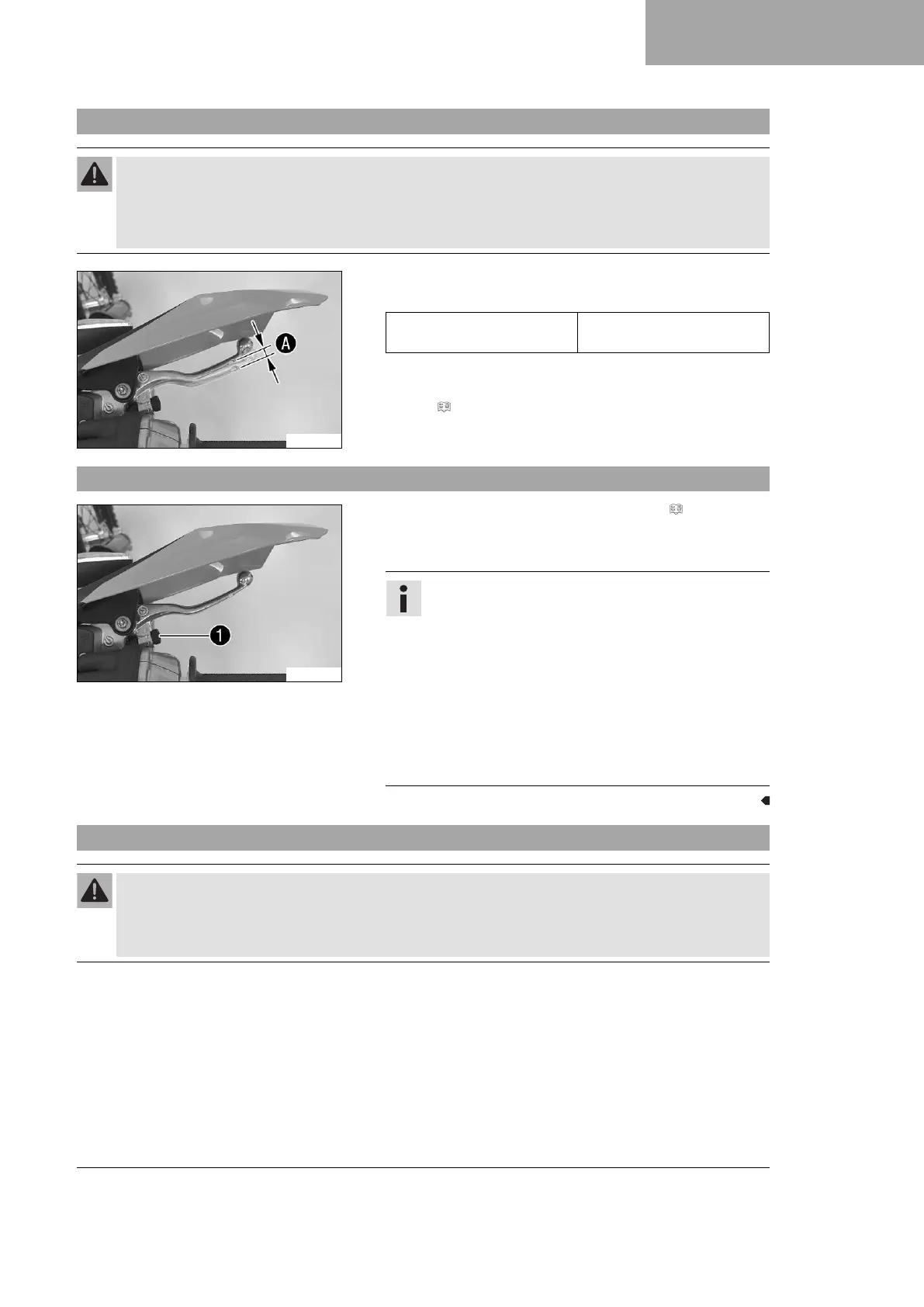

13.1 Checking the free travel of the hand brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the hand brake lever, pressure builds up on the front brake circuit.
– Set the free travel on the hand brake lever in accordance with the specification.
E01208-10
– Push the hand brake lever to the handlebar and check free
travel
A
.
Free travel of hand brake
lever
≥ 3 mm (≥ 0.12 in)
» If the free travel does not match the specification:
– Adjust the free travel of the hand brake lever.
( p. 95)
13.2 Adjusting free travel of hand brake lever
E01208-11
– Check the free travel of the hand brake lever. ( p. 95)
– Adjust the free travel of the hand brake lever with adjusting
screw
1
.
Info
Turn the adjusting screw clockwise to reduce free
travel. The pressure point moves away from the
handlebar.
Turn the adjusting screw counterclockwise to increase
free travel. The pressure point moves towards the han-
dlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not
apply any force.
Do not make any adjustments while riding!
13.3 Checking the brake discs
Warning
Danger of accidents Worn-out brake discs reduce the braking effect.
– Make sure that worn-out brake discs are replaced immediately. (Your authorized KTM workshop will
be glad to help.)
