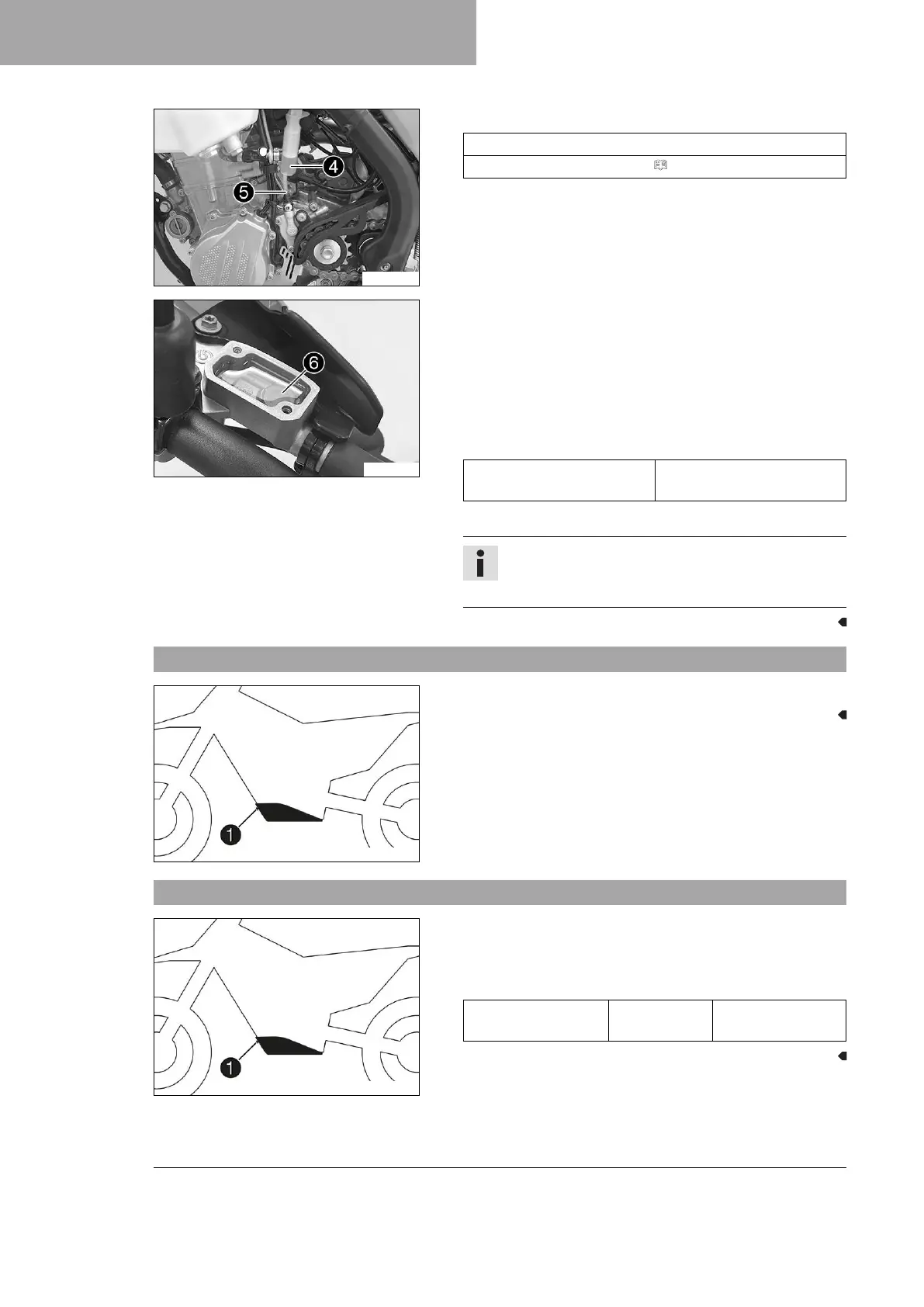

12 SERVICE WORK ON THE CHASSIS
94
H01697-10
–
Fill bleeding syringe
4
with the appropriate hydraulic fluid.
Syringe (50329050000)
Brake fluid DOT 4 / DOT 5.1 ( p. 155)
– On the clutch slave cylinder, remove the protection cap,
remove bleeder screw
5
and mount bleeding syringe
4
.
E00339-10
– Inject the liquid into the system until it escapes from open-
ings
6
of the master cylinder without bubbles.
– Now and then, extract fluid from the master cylinder reservoir
to prevent overflow.
– Remove the bleeding syringe. Mount and tighten screws
bleeder screw. Mount the protection cap.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container
rim
4 mm (0.16 in)
– Position cover with membrane. Mount and tighten screws.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
12.47 Removing the engine guard (EXC‑F Six Days, EXC‑F AU)
H01638-10
–
Remove screws
1
and engine guard.
12.48 Installing the engine guard (EXC‑F Six Days, EXC‑F AU)
H01638-10
– Attach the engine guard on the frame at the rear and swing up
at the front.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
