KTM 505 SX ATV User Manual

MAINTENANCE ON CHASSIS AND ENGINE 72

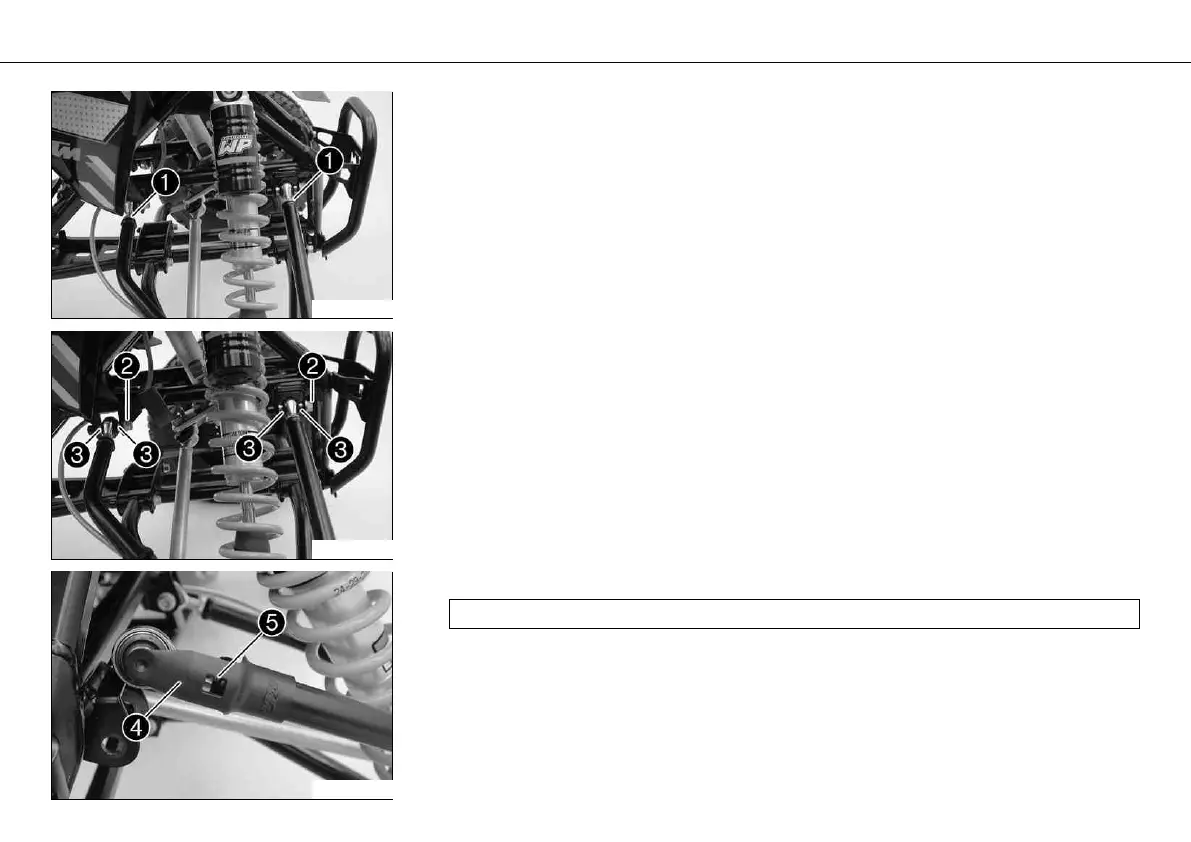

300273-10
– Loosen nuts .
300274-10
– Remove screws  with bushings .
300277-10
– Insert tool  in the heim joint and clip onto the A-arm.
Camber gauge (83019014000)
– Check the camber on both heim joints.
» If marking  is not aligned with the top edge of the A-arm:
– Turn tool  with the heim joint in steps of 180° until the marking is in line
with the top edge of the A-arm.
– Remove tool .
