KTM 85 SX 17/14 User Manual

11 SERVICE WORK ON THE CHASSIS 37

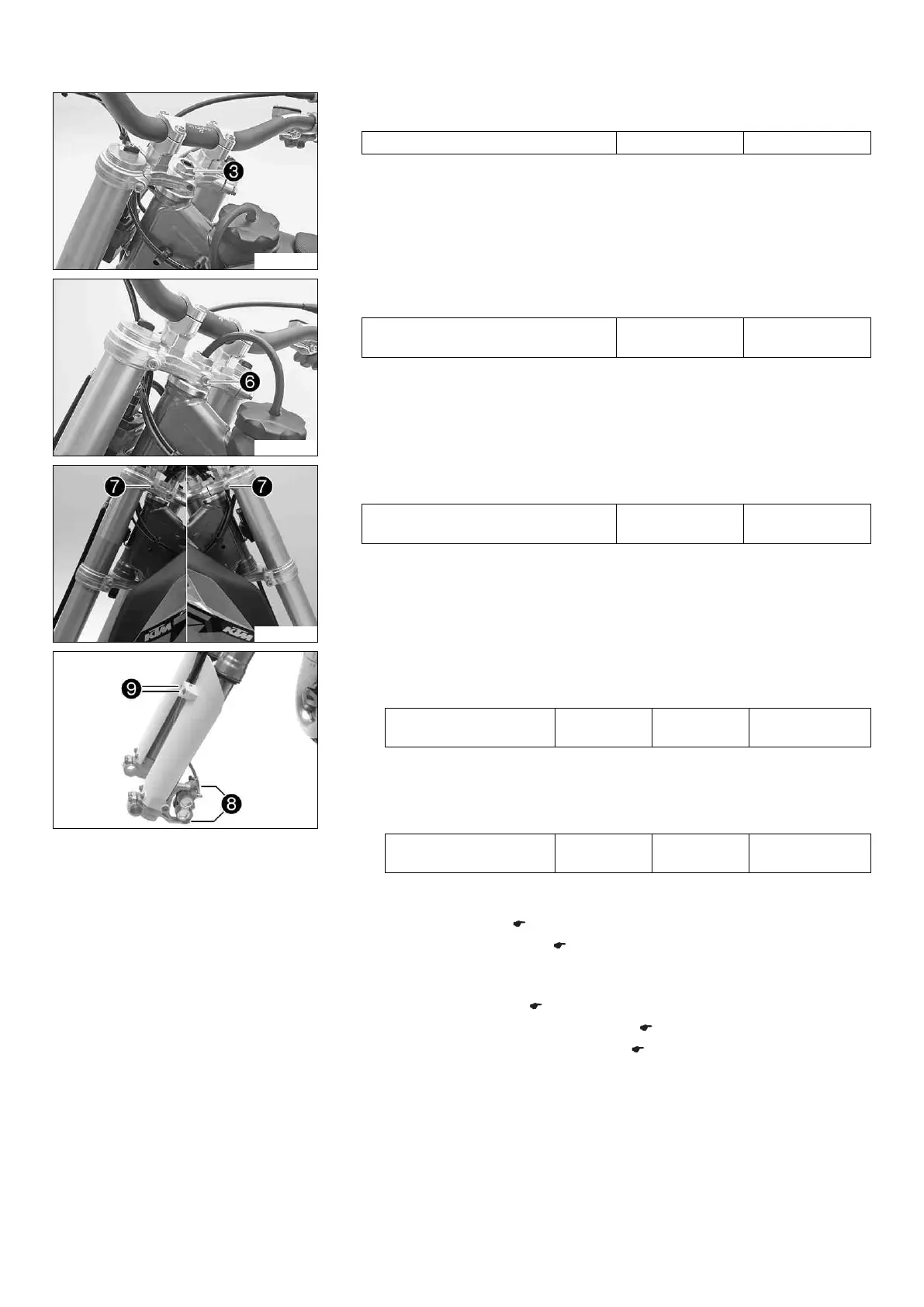

C00253-10
– Tighten nut 3.
Guideline
Nut, steering stem M20x1.5 10 Nm (7.4 lbf ft)
– Position the fuel tank breather.
C00254-10
– Mount and tighten screw 6.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
C00481-11
– Tighten screws 7.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
L00047-12
(85 SX 17/14)
– Position brake caliper, mount and tighten screws 8.
Guideline
Screw of brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Position the brake line and clamp. Mount and tighten screws 9.
(85 SX 19/16)
– Position the brake caliper with spacers and fit and tighten screws 8.
Guideline
Screw of brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Position the brake line and clamp. Mount and tighten screws 9.
Finishing work
– Install the front fender. ( p. 39)
– Install the start number plate. ( p. 39)
– Check that the wiring harness, cables, and brake and clutch lines can move freely
and are routed correctly.
–
Install the front wheel. x ( p. 62)
– Check the play of the steering head bearing. ( p. 38)
– Remove the motorcycle from the lift stand. ( p. 32)
