11 SERVICE WORK ON THE CHASSIS 41

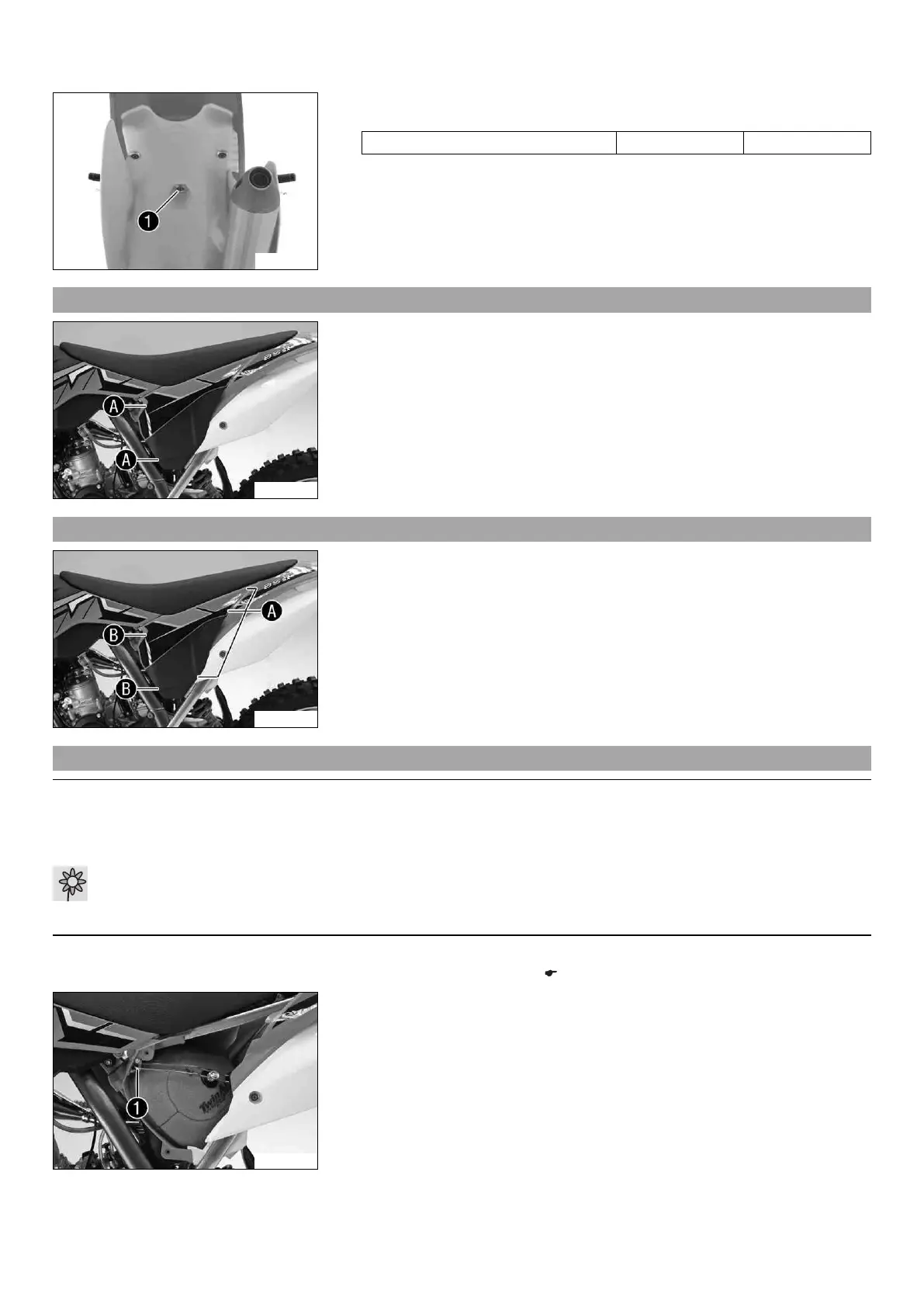

L00052-10
– Mount and tighten screw 1 of the seat fixing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
11.22 Removing the air filter box lid
C00468-10
– Pull off the air filter box lid in area A sideways and remove it toward the front.
11.23 Installing the air filter box lid
C00468-11
– Insert the air filter box lid into rear area A and clip it into front area B.
11.24 Removing the air filter x
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Remove the air filter box lid. ( p. 41)
C00469-10
Main work
– Unhook air filter holder 1 and swing it to the side. Remove the air filter with the
air filter support.
– Remove the air filter from the air filter support.
