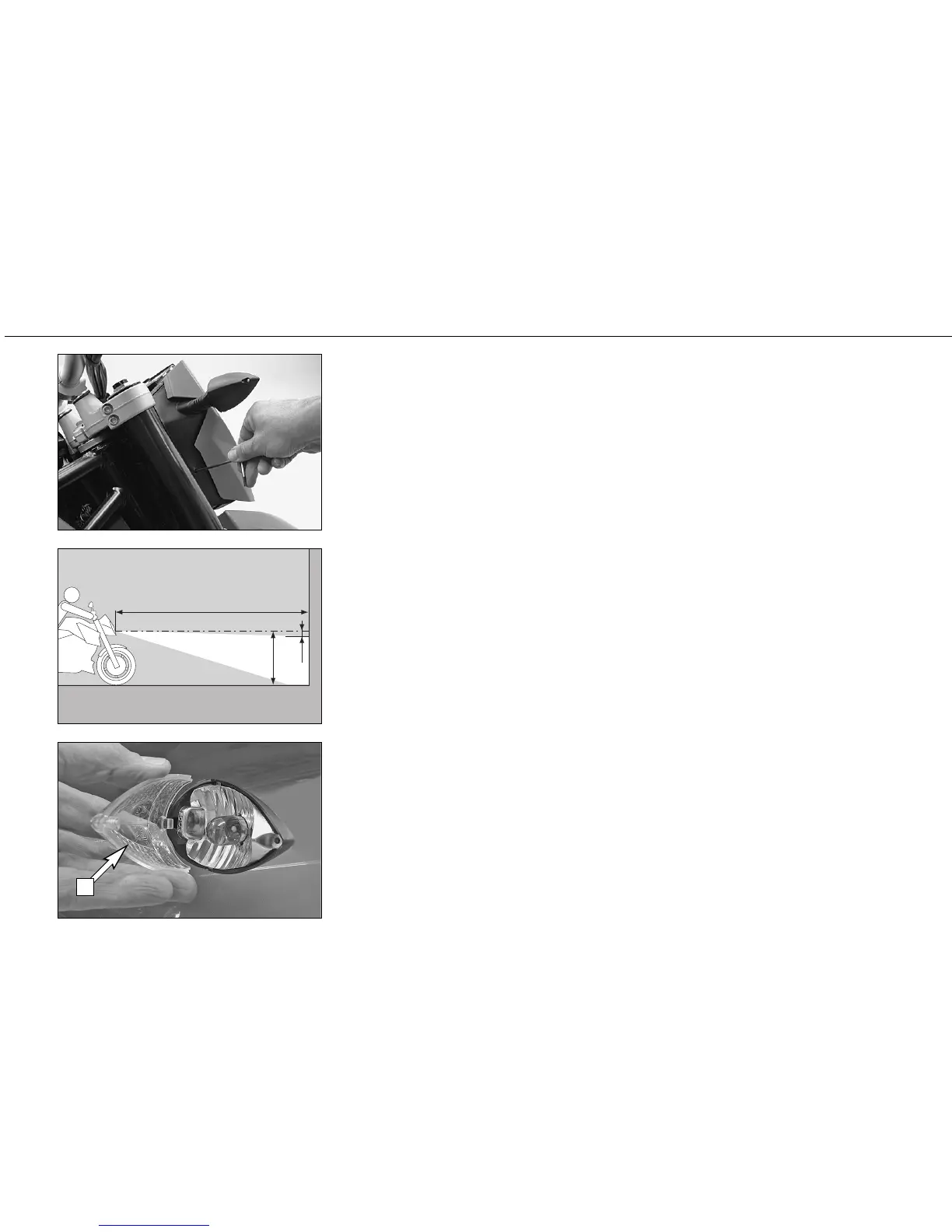

Adjusting the headlight range
The payload can make it necessary to correct the headlight range.
The beam width of the head light can be adjusted using a TORX
®
key T 20 (tool set). Turn
clockwise to increase the beam width and counterclockwise to reduce the beam width.
TO CHECK:
Determine the distance from the ground to the center of the headlight when your motorcy-
cle is loaded and ready for the trip (baggage, driver, passenger). Make a mark on a light wall
behind a level surface at a height corresponding to the center of the headlight. Position your
motorcycle loaded ready for the trip 5 meters (16,4 ft) away from the wall and switch on
the low beam. The light/dark cut-off line should be 5 cm (2 in) under the mark (see
drawing).
MAINTENANCE WORK ON CHASSIS AND ENGINE »
58
5 m
x
5 cm
Replacing the flasher bulbs
Remove the screw on the back of the turn signal, carefully fold the lens [3] towards the
motorcycle and remove.
Slightly depress the bulb, turn it approx. 30° counterclockwise and pull it out of the socket.
Proceed in the reverse order to mount a new bulb.
3
