SERVICE WORK ON THE CHASSIS 41
B01056-11

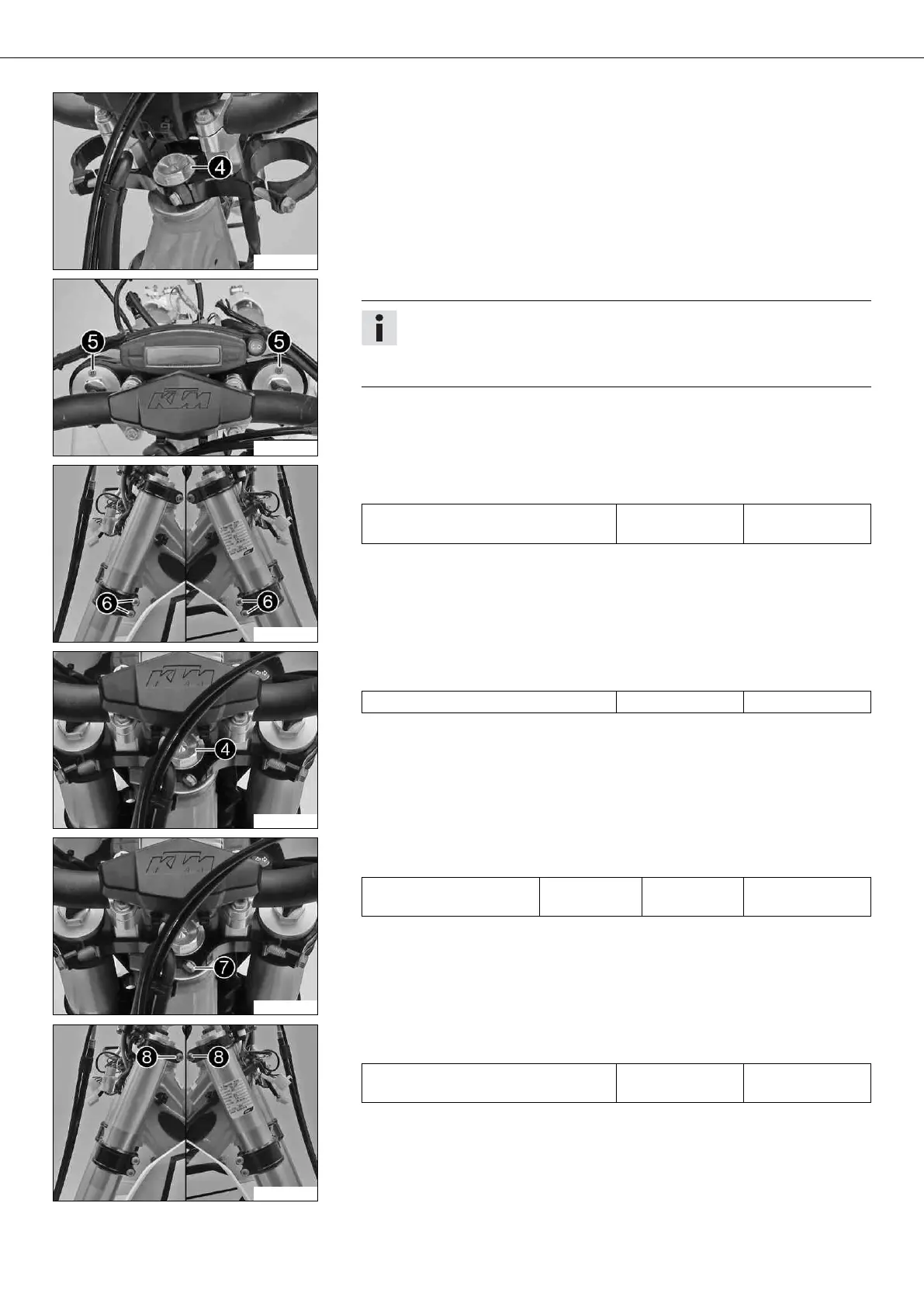

– Position the upper triple clamp with the steering.
– Mount screw 4 but do not tighten yet.
– Position the clutch line and wiring harness.
B01059-10
– Position the fork legs.
Info
The topmost milled groove in the fork leg must be flush with the top edge of
the upper triple clamp.
Position bleeder screws 5 toward the front.
B01054-12
– Tighten screws 6.
Guideline
Screw, bottom triple clamp M8 18 Nm
(13.3 lbf ft)
B01106-10
– Tighten screw 4.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
B01106-11
– Mount and tighten screw 7.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
B01054-13
– Tighten screws 8.
Guideline
Screw, top triple clamp M8 22 Nm
(16.2 lbf ft)
– Secure the wiring harness with the cable holder.

KTM Freeride 350 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	349.7 cc
Bore x Stroke	88 mm x 57.5 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Dry Weight	99.5 kg
Compression Ratio	12.3:1
Weight (without fuel)	99.5 kg
Frame	Central tube frame made of chrome molybdenum steel
Front Suspension	WP Suspension 43 mm upside-down fork
Rear Suspension	WP PDS shock absorber
Front Brake	260 mm
Rear Brake	210 mm
Fuel Tank Capacity	5.5 liters
Fuel System	Electronic fuel injection (EFI)
ABS	No
