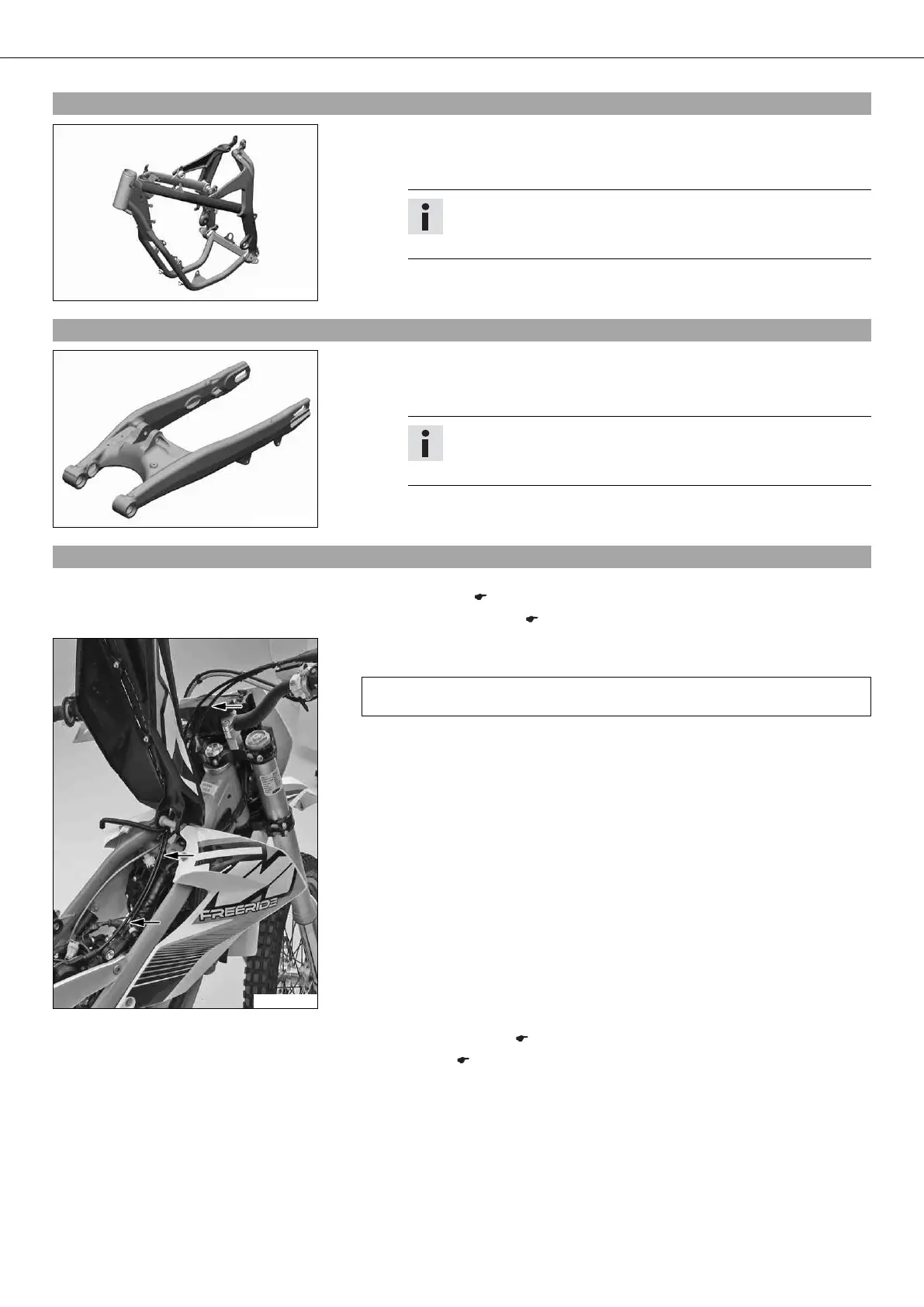

10.36Checking the frame x
401462-01
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a mechanical impact:
–
Change the frame. x
Info
A frame that has been damaged due to a mechanical impact must
always be changed. Repair of the frame is not authorized by KTM.
10.37Checking the swingarm x
401463-01
– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or deformation:
–
Change the swingarm. x
Info
A damaged swingarm must always be changed. Repair of the
swingarm is not authorized by KTM.
10.38Checking the throttle cable routing
Preliminary work
– Fold the seat up. ( p. 44)
–
Remove the fuel tank. x ( p. 48)
B01080-10
Main work
– Check the throttle cable routing.
Both throttle cables must be routed to the throttle valve body side by side behind
the handlebars and above the tank bearing.
» If the throttle cable is not routed as specified:
– Correct the throttle cable routing.
Subsequent work
–
Install the fuel tank. x ( p. 49)
– Lock the seat. ( p. 45)
