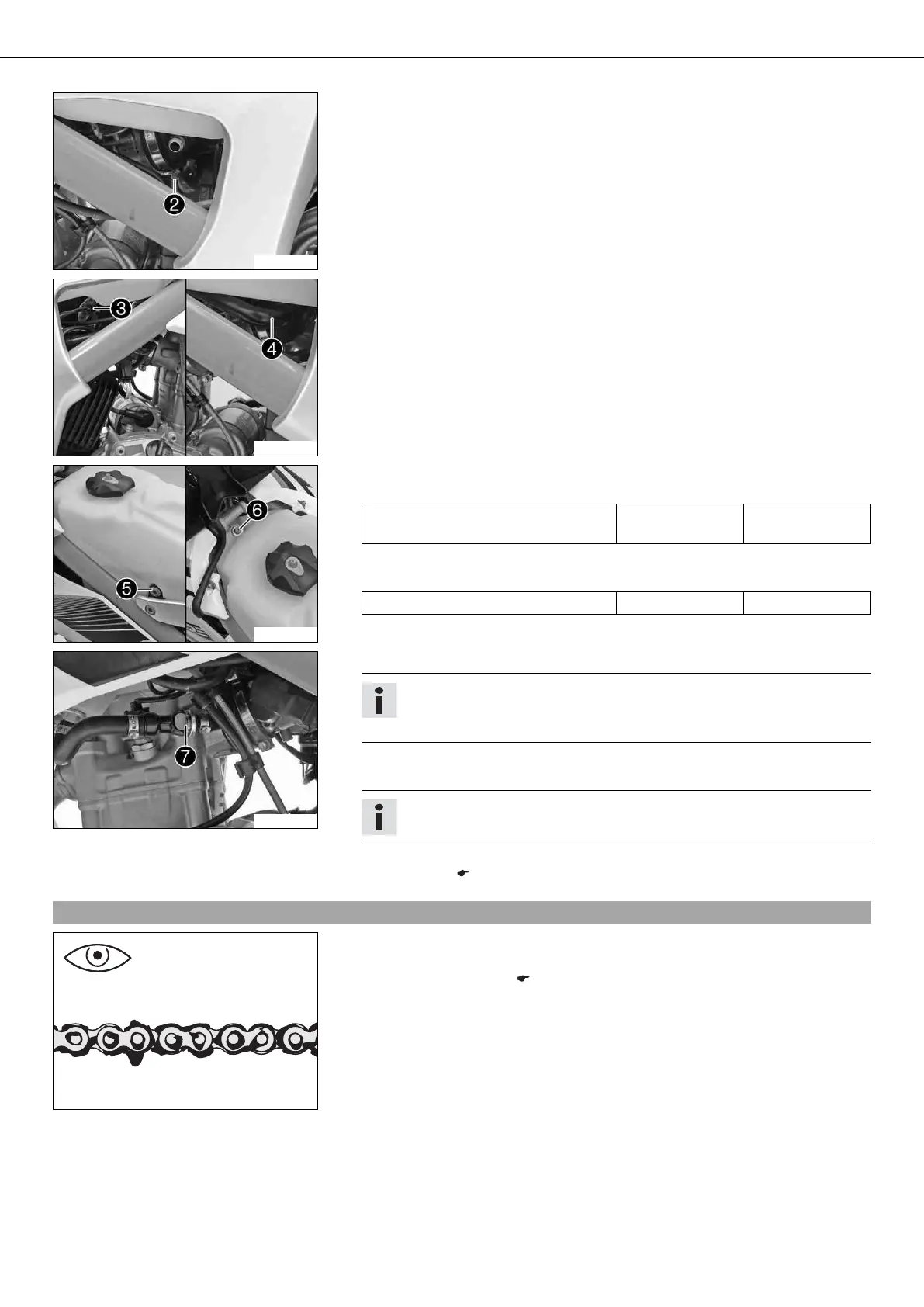

SERVICE WORK ON THE CHASSIS 50
B01077-11
– Position the fuel tank.
– Position the intake flange on the throttle valve body.
– Tighten hose clamp 2.
B01076-11
– Plug in connector 3.
– Position engine breather hose 4.
B01075-11
– Mount and tighten screws 5 on both sides.
Guideline
Screw, fuel tank M8 15 Nm
(11.1 lbf ft)
– Mount and tighten screw 6.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Mount the fuel tank breather.
B01079-10
– Thoroughly clean the plug-in connection of the fuel line using compressed air.
Info
Under no circumstances should dirt enter into the fuel line. Dirt in the fuel
line clogs the injection valve.
– Remove the wash cap set. Lubricate the O-ring and connect plug-in connection 7
of the fuel line.
Info
Route the cable and fuel line at a safe distance from the exhaust system.
Subsequent work
– Lock the seat. ( p. 45)
10.30Checking for chain dirt accumulation
400678-01
– Check the chain for coarse dirt accumulation.
» If the chain is very dirty:
– Clean the chain. ( p. 51)

KTM Freeride 350 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	349.7 cc
Bore x Stroke	88 mm x 57.5 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Dry Weight	99.5 kg
Compression Ratio	12.3:1
Weight (without fuel)	99.5 kg
Frame	Central tube frame made of chrome molybdenum steel
Front Suspension	WP Suspension 43 mm upside-down fork
Rear Suspension	WP PDS shock absorber
Front Brake	260 mm
Rear Brake	210 mm
Fuel Tank Capacity	5.5 liters
Fuel System	Electronic fuel injection (EFI)
ABS	No
