BRAKES 65
B01097-10

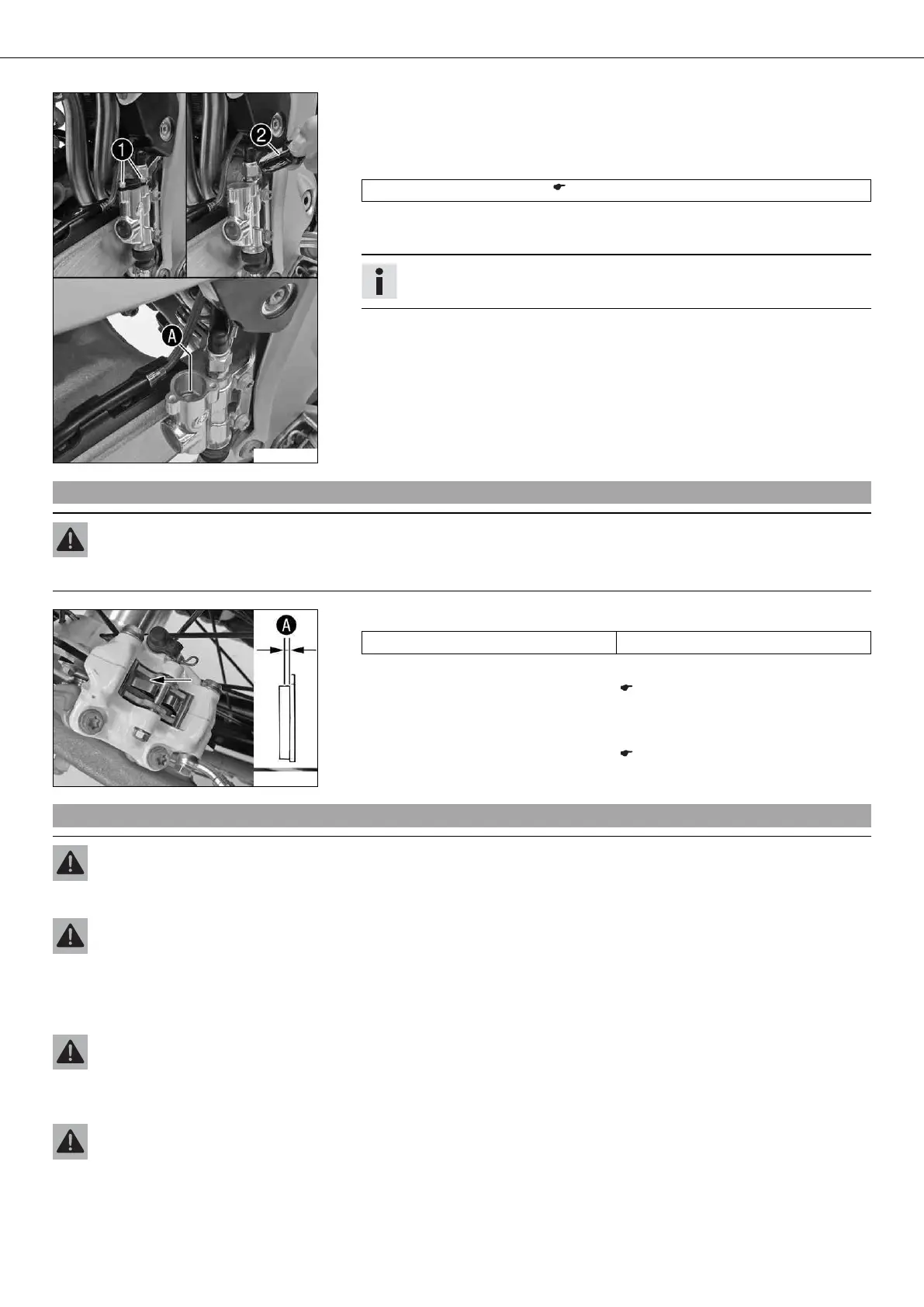

– Stand the vehicle upright.
– Remove screws 1.
– Remove cover with membrane 2.
– Add brake fluid to level A.
Brake fluid DOT 4 / DOT 5.1 ( p. 103)
– Mount the cover with the membrane.
– Mount and tighten the screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.
11.12Checking the rear brake linings
Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately. (Your authorized KTM workshop will be glad to help.)
B01098-10
– Check the brake linings for minimum thickness A.
Minimum thickness A ≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
–
Change the rear brake linings. x ( p. 65)
– Check the brake linings for damage and cracking.
» If damage or cracking is visible:
–
Change the rear brake linings. x ( p. 65)
11.13Changing the rear brake linings x
Warning
Danger of accident Brake system failure.
– Maintenance work and repairs must be carried out professionally. (Your authorized KTM workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will
be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
