KTM Freeride 350 User Manual

ELECTRICAL SYSTEM 75

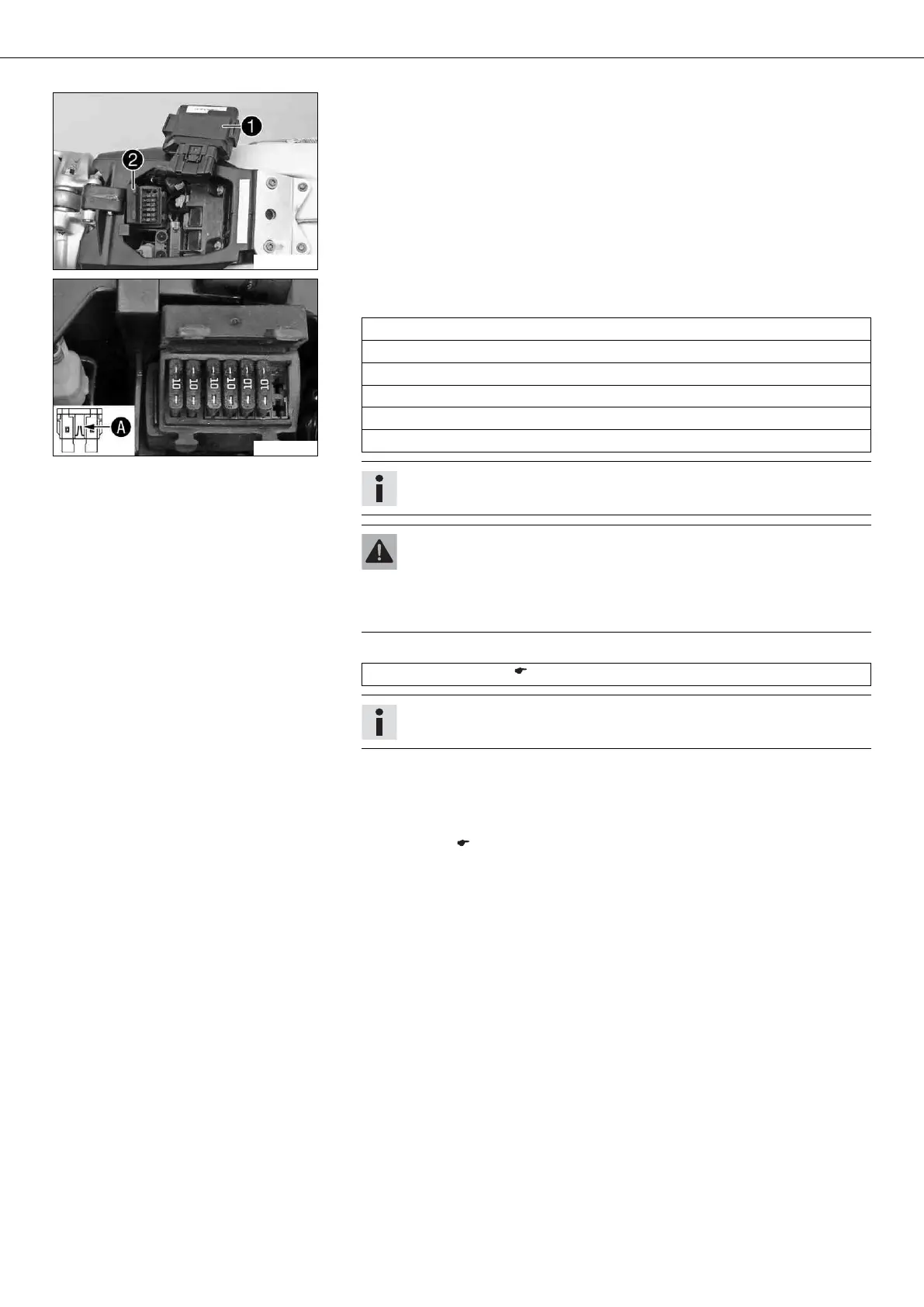

B01111-10
Main work
– Take off EFI control unit 1.
– Open fuse box cover 2.
B01112-10
– Remove the defective fuse.
Guideline
Fuse 1 - 10 A - EFI control unit
Fuse 2 - 10 A - fuel pump
Fuse 3 - 10 A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 4 - 10 A - horn, brake light, turn signal, radiator fan, speedometer
Fuse 5 - not used
Fuses res - 10 A - spare fuses
Info
A defective fuse is indicated by a burned-out fuse wire A.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never by-pass or repair
fuses.
– Use spare fuses with the correct rating only.
Fuse (58011109110) ( p. 98)
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover.
– Position the EFI control unit.
Follow-up work
– Lock the seat. ( p. 45)

KTM Freeride 350 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	349.7 cc
Bore x Stroke	88 mm x 57.5 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Dry Weight	99.5 kg
Compression Ratio	12.3:1
Weight (without fuel)	99.5 kg
Frame	Central tube frame made of chrome molybdenum steel
Front Suspension	WP Suspension 43 mm upside-down fork
Rear Suspension	WP PDS shock absorber
Front Brake	260 mm
Rear Brake	210 mm
Fuel Tank Capacity	5.5 liters
Fuel System	Electronic fuel injection (EFI)
ABS	No
