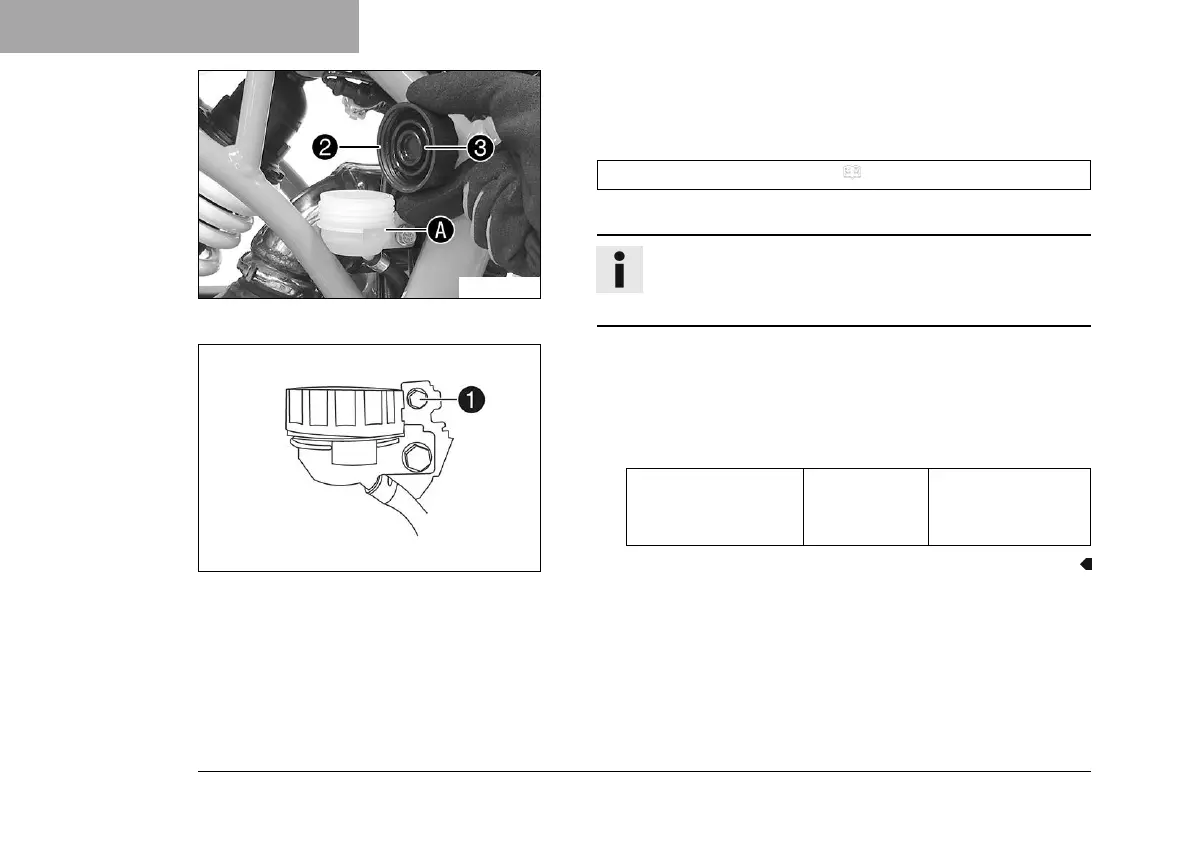

14 BRAKE SYSTEM

152

V00158-11

– Stand the vehicle upright.

–

Remove screw cap

with membrane

–

Add brake fluid to level

Brake fluid DOT 4 / DOT 5.1 ( p. 246)

– Mount screw cap with membrane.

Info

Clean up overflowed or spilled brake fluid immediately

with water.

H01142-10

Condition

The screw cap is locked.

– Position the screw cap lock and mount and tighten

screw

Guideline

Screw, compensat-

ing tank cap lock,

rear brake

M5 7 Nm (5.2 lbf ft)

Default Chapter5
