17

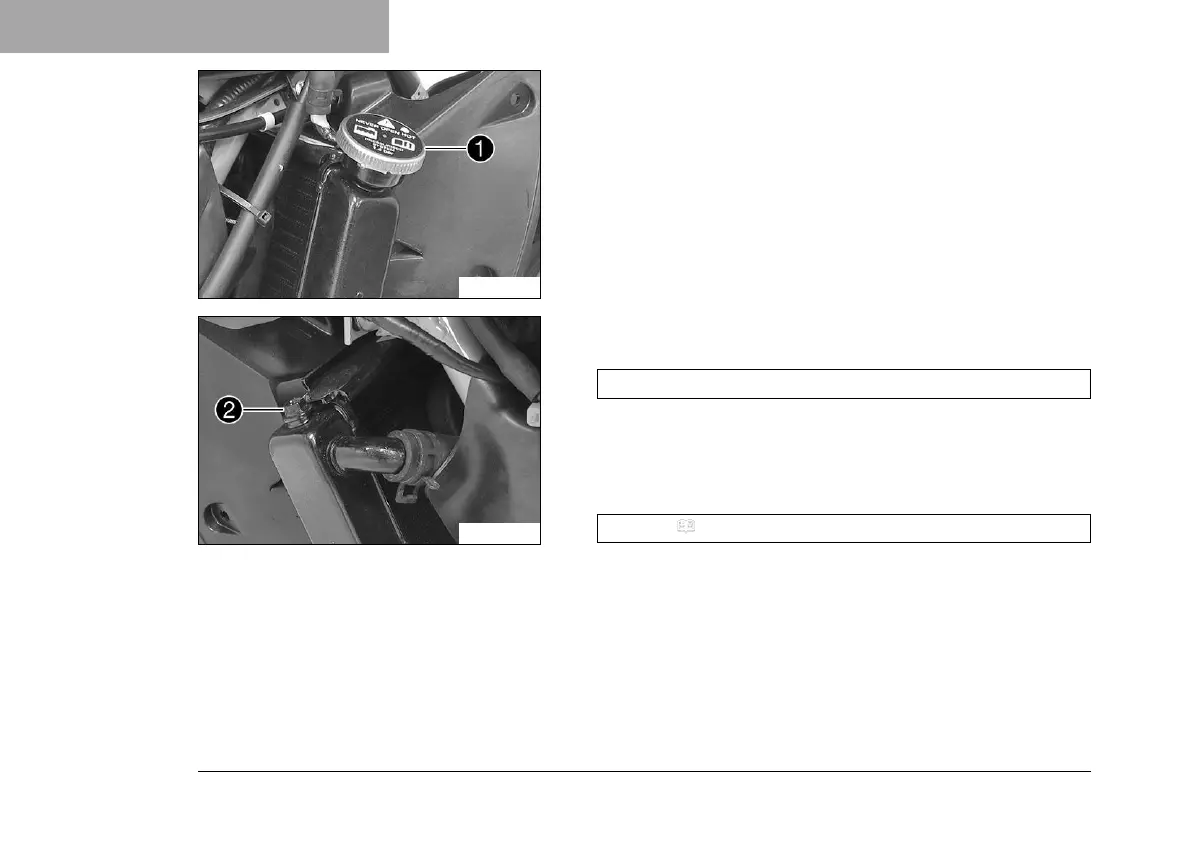

COOLING
SYSTEM
204
V00144-10
Main
work
–
Remove
radiator
cap
1
.
V00145-10
–
Loosen
bleeder
screw
2
.
Guideline
3
turns
–
Tilt
the
vehicle
slightly
to
the
right.
–
Pour
in
coolant
until
it
emerges
without
bubbles
at
the
bleeder
screw,
and
then
mount
and
tighten
the
bleeder
screw
immedi-
ately.
Coolant
(
p.
246)
–
Completely
fill
the
radiator
with
coolant.
Mount
the
radiator
cap.
–
Rest
the
vehicle
on
the
side
stand.
205
207
Table of Contents
Default Chapter
5
Table of Contents
5
1 Means of Representation 1
11
Symbols Used
11
Formats Used
12
2 Safety Advice 2
13
Use Definition - Intended Use
13
Misuse
13
Degrees of Risk and Symbols
14
Overview of Labels
16
Reporting Safety Defects
20
Noise Emission Warranty
20
Operating Noise Warning
21
Manufacturer Warranty for the Exhaust Monitoring System
21
Consumer Rights
22
Tampering Warning
22
Safe Operation
23
Protective Clothing
24
Work Rules
25
Environment
25
Owner's Manual
26
3 Important Notes 3
27
Manufacturer and Implied Warranty
27
Fuel, Auxiliary Substances
27
Spare Parts, Accessories
27
Service
28
Figures
28
Customer Service
28
4 View of Vehicle
30
View of Vehicle, Front Left (Example)
30
View of Vehicle, Rear Right (Example)
32
5 Serial Numbers
34
Vehicle Identification Number
34
Type Label
34
Engine Number
35
Key Number
36
6 Controls 6
37
Clutch Lever
37
Hand Brake Lever
37
Throttle Grip
38
Horn Button
38
Light Switch
39
High Beam Flasher Button
39
Turn Signal Switch
40
Emergency off Switch
41
Start Button
41
Ignition and Steering Lock
42
Locking the Steering
42
Unlocking the Steering
43
Opening Fuel Tank Filler Cap
44
Closing the Fuel Tank Filler Cap
46
Seat Lock
47
Tool Set
47
Grab Handles
48
Passenger Foot Pegs
48
Shift Lever
49
Foot Brake Lever
50
Side Stand
50
7 Ergonomics
52
Adjusting the Basic Position of the Hand Brake Lever
52
Adjusting the Basic Position of the Clutch Lever
52
Adjusting the Shift Lever
53
8 Combination Instrument 8
55
Activation and Test
56
Warnings
57
Indicator Lamps
62
Shift Warning Light
64
Display
66
Fuel Level Display
67
Coolant Temperature Indicator
68
Function Buttons
69
TRIP F Display
70
Info Display
71
ODO Display
72
Fuel Range
72
Service
73
Actual F.C
74
TRIP 1 Display
75
Time Trip 1
75
Average Speed Trip1
76
Avg F.C. Trip 1
77
TRIP 2 Display
78
Time Trip 2
78
Average Speed Trip2
79
Avg F.C. Trip 2
80
Setting the Units
80
Setting the Clock
82
Adjusting the Shift Speed RPM1
83
Adjusting the Shift Speed RPM2
84
9 Preparing for Use
86
Advice on Preparing for First Use
86
Running in the Engine
88
Loading the Vehicle
88
10 Riding Instructions 10
91
Checks and Maintenance Measures When Preparing for Use
91
Starting
92
Starting off
94
Shifting, Riding
95
Applying the Brakes
99
Stopping, Parking
101
Transport
103
Refueling
104
11 Service Schedule 11
107
Additional Information
107
Required Work
107
Recommended Work
109
12 Tuning the Chassis 12
111
Adjusting the Spring Preload of the Shock Absorber
111
13 Service Work on the Chassis
112
Raising the Motorcycle with Rear Lifting Gear
112
Removing the Rear of the Motorcycle from the Lifting Gear
112
Lifting the Motorcycle with the Front Lifting Gear
113
Taking the Motorcycle off the Front Lifting Gear
115
Cleaning the Dust Boots of the Fork Legs
116
Removing the Front Rider's Seat
118
Mounting the Front Rider's Seat
119
Removing the Passenger Seat
119
Mounting the Passenger Seat
120
Checking for Chain Dirt Accumulation
122
Cleaning the Chain
122
Checking the Chain Tension
124
Adjusting the Chain Tension
126
Checking the Chain, Rear Sprocket, and Engine Sprocket
128
Removing the Battery Cover
130
Mounting the Battery Cover
132
Removing the Front Spoiler
133
Fitting Front Spoiler
134
Removing the Left Side Cover
136
Installing the Left Side Cover
137
Removing the Right Side Cover
139
Installing the Right Side Cover
140
14 Brake System
142
Anti-Lock Braking System (ABS)
142
Checking the Brake Discs
144
Checking the Front Brake Fluid Level
145
Adding the Front Brake Fluid
146
Checking the Front Brake Linings
149
Checking the Rear Brake Fluid Level
150
Adding Rear Brake Fluid
151
Checking the Rear Brake Linings
155
Checking the Free Travel of Foot Brake Lever
156
Adjusting the Free Travel of the Foot Brake Lever
158
15 Wheels, Tires
160
Removing the Front Wheel
160
Installing the Front Wheel
161
Removing the Rear Wheel
163
Installing the Rear Wheel
165
Checking the Rear Hub Damping Rubber Pieces
167
Checking the Tire Condition
169
Checking Tire Pressure
171
16 Electrical System
173
Electrical System 16
173
Removing the 12-V Battery
173
Installing the 12-V Battery
175
Charging the 12-V Battery
176
Changing the ABS Fuses
179
Changing the Fuses of Individual Power Consumers
182
Changing the Low Beam Bulb
185
Changing the High Beam Bulb
187
Checking the Low Beam Headlight Adjustment
189
Checking the High Beam Headlight Adjustment
191
Adjusting the Headlight Range of the Low Beam
192
Adjusting the Headlight Range of the High Beam
193
Diagnostics Connector
194
Front ACC1 and ACC2
194
17 Cooling System 17
195
Checking the Coolant Level in the Compensating Tank
197
Checking the Antifreeze and Coolant Level
199
Correcting the Coolant Level in the Compensating Tank
202
Draining the Coolant
203
Filling/Bleeding the Cooling System
205
Changing the Coolant
208
18 Tuning the Engine
212
Checking the Clutch Lever Play
212
Adjusting Play in the Clutch Lever
213
19 Service Work on the Engine
214
Checking the Engine Oil Level
214
Changing the Engine Oil and Oil Filter, Cleaning the Oil Screens
215
Adding Engine Oil
219
20 Cleaning, Care 20
221
Cleaning the Motorcycle
221
Checks and Maintenance Steps for Winter Operation
224
21 Storage
226
21 Storage
228
Preparing for Use after Storage
228
Troubleshooting 22
229
22 Troubleshooting
232
23 Technical Data
232
Engine
232
Engine Tightening Torques
233
Capacities
237
Engine Oil
237
Coolant
238
Fuel
238
Chassis
238
Electrical System
240
Tires
241
Fork
241
Shock Absorber
241
Chassis Tightening Torques
242
24 Substances
248
25 Auxiliary Substances 25
251
26 Standards 26
253
27 Index of Special Terms
254
28 List of Abbreviations 28
255
29 List of Symbols
256
Yellow and Orange Symbols
256
Green and Blue Symbols
256
Index
257
