COOLING SYSTEM 17

207

– Remove the left side cover. ( p. 134)

– Remove the front spoiler. ( p. 131)

V00146-10

Main work

– Position the motorcycle upright.

– Place an appropriate container under the engine.

–

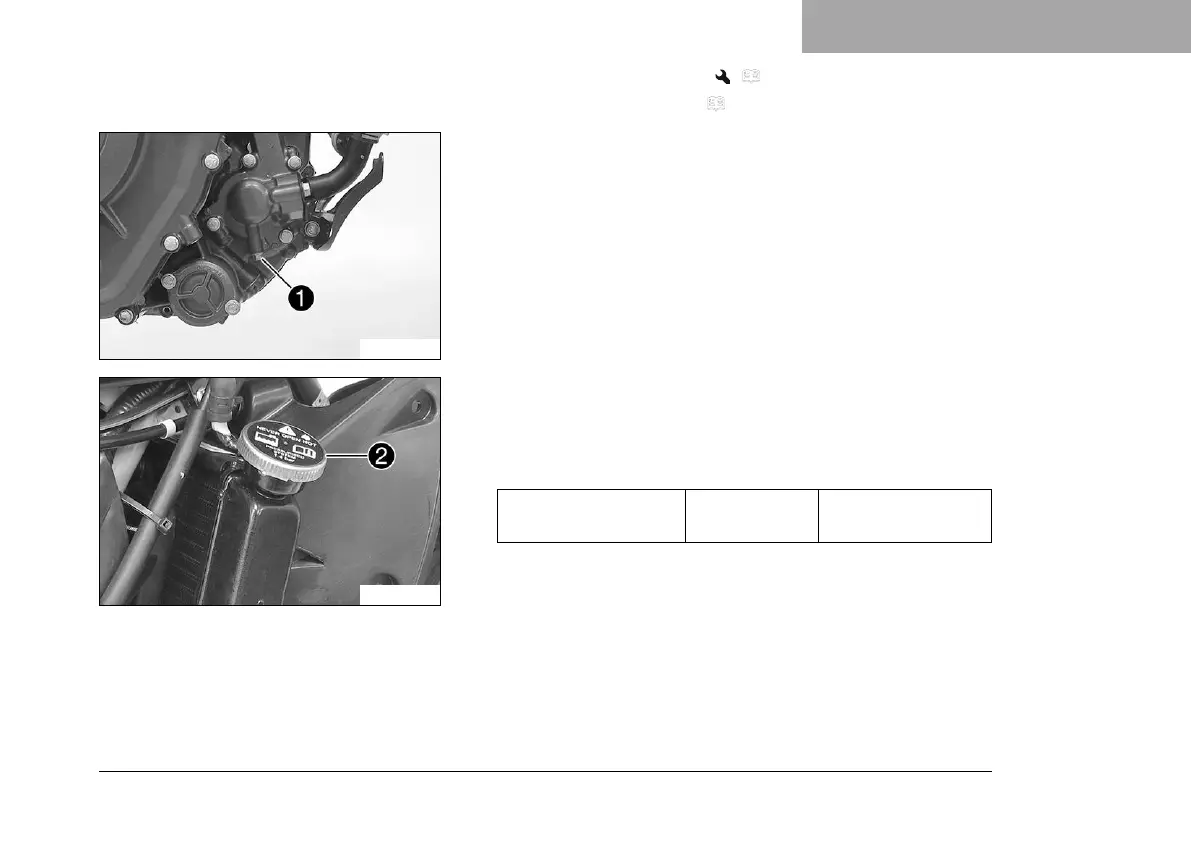

Remove screw

V00144-11

–

Remove radiator cap

– Completely drain the coolant.

–

Mount and tighten screw

with a new seal ring.

Guideline

Screw plug, water

pump drain hole

M6 10 Nm (7.4 lbf ft)
