19 SERVICE WORK ON THE ENGINE
214
V00175-10
Main work

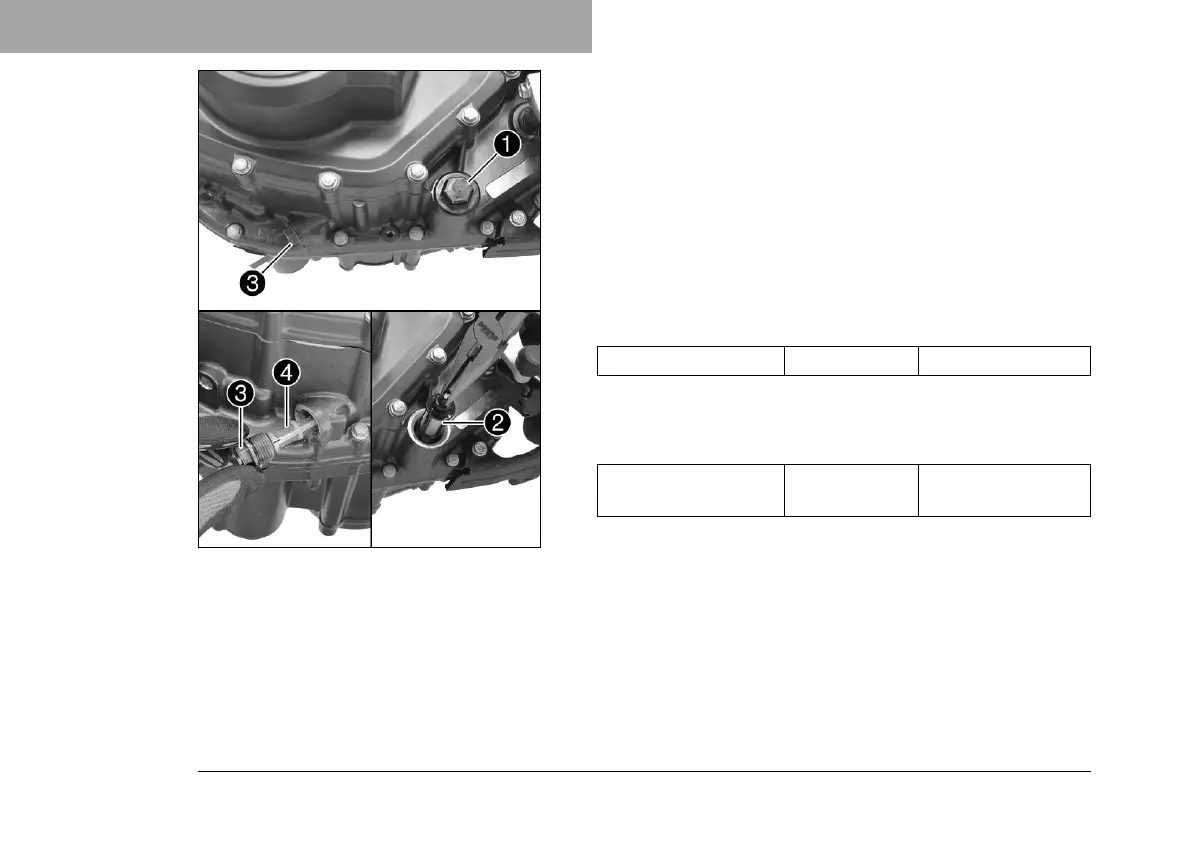

– Position an appropriate container under the engine.
–
Remove oil drain plug
1
with the O-ring.
–
Remove oil screen
2
with the O-ring.
–
Remove screw plug
3
with oil screen
4
.
– Allow the engine oil to drain completely.
– Thoroughly clean the oil drain plugs and oil screens.
–
Position oil screen
2
and mount and tighten oil drain
plug
1
with the O-ring.
Guideline
Oil drain plug M24x1.5 15 Nm (11.1 lbf ft)
–
Mount and tighten screw plug
3
with oil screen
4
and the
O-ring.
Guideline
Oil screen screw
plug, small
M17x1.5 12 Nm (8.9 lbf ft)
