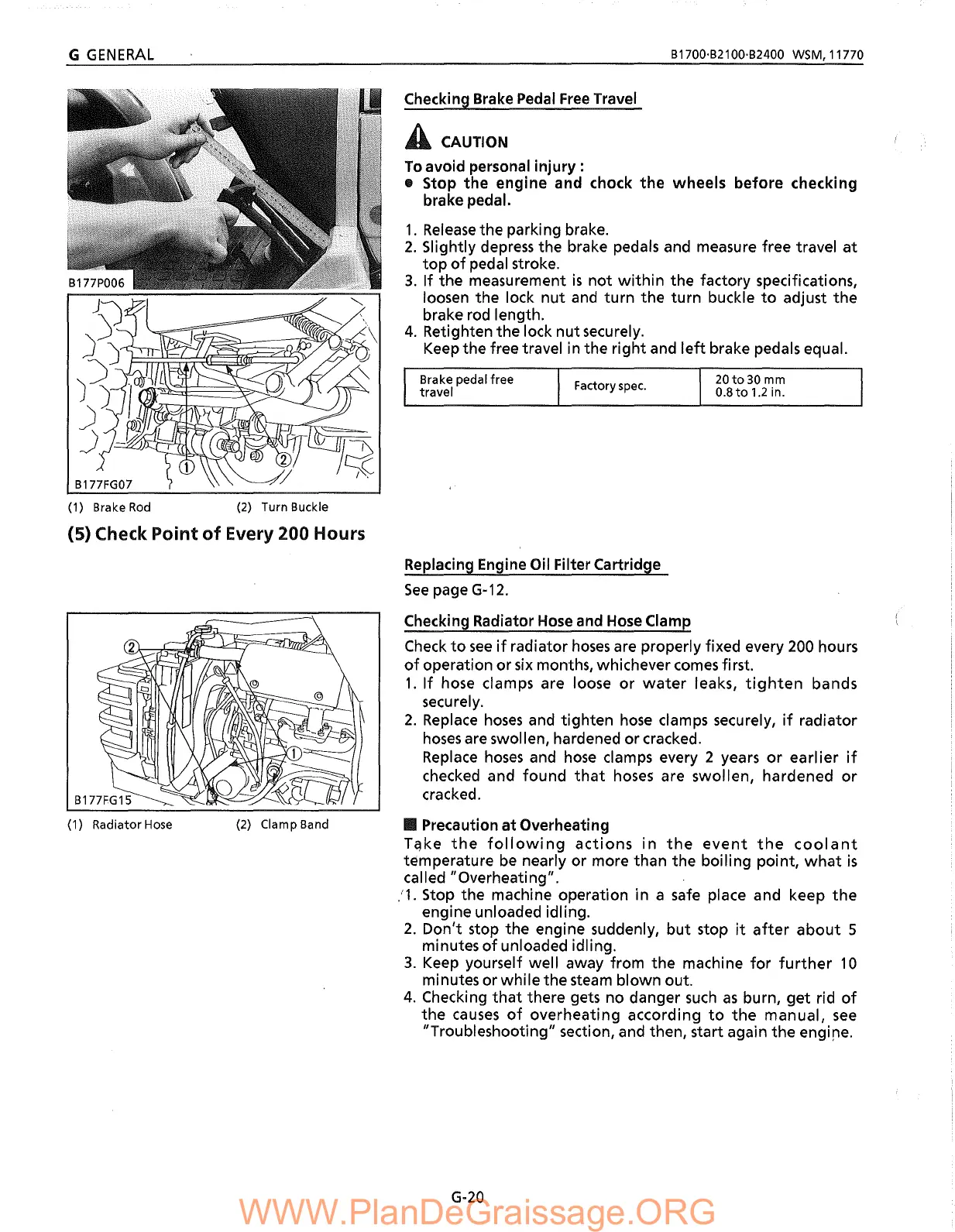

Checking Brake
Pedal
Free
Travel
A
CAUTION
To
avoid personal
injury:
• Stop
the
engine and chock
the
wheels before checking
brake pedal.
1.
Release
the parking brake.
2.
Slightly depress the brake pedals and measure free travel
at
top
of
pedal stroke.
3.
If the measurement
is
not
within
the factory specifications,
loosen the lock
nut
and
turn
the
turn
buckle
to
adjust the
brake rod length.
4.
Retighten the lock
nut
securely.
Keep the free travel in the
right
and
left
brake pedals equal.
(1) Brake
Rod
(2)
Turn Buckle
(5) Check
Point
of
Every 200 Hours
Brake pedal free
travel
Factory
spec.
20to30
mm
0.8to
1.2
in.
(1) Radiator
Hose
(2)
Clamp Band
Replacing Engine Oil Filter Cartridge
See
page
G-12.
Checking Radiator Hose and
Hose
Clamp
Check
to
see
if
radiator
hoses
are properly fixed every
200
hours
of
operation
or
six
months, whichever
comes
fi
rst.
1.
If
hose clamps are loose
or
water
leaks,
tighten
bands
securely.
2.
Replace
hoses
and tighten
hose
clamps securely,
if
radiator
hoses
are swollen, hardened or cracked.
Replace
hoses
and
hose
clamps every 2 years
or
earlier
if
checked and found
that
hoses are swollen, hardened
or
cracked.
II
Precaution
at
Overheating
Tqke
the
following
actions
in
the
event
the
coolant
temperature
be
nearly or more than the boiling point,
what
is
called "Overheating".
,/1.
Stop the machine operation in a
safe
place and keep
the
engine unloaded idling.
2.
Don't stop the engine suddenly,
but
stop
it
after
about
5
minutes
of
unloaded idling.
3.
Keep yourself well away from the machine
for
further
10
minutes or while the steam blown out.
4.
Checking
that
there gets no danger
such
as
burn,
get
rid
of
the
causes
of
overheating according
to
the
manual,
see
"Troubleshooting" section, and then, start again the engi!"e.
