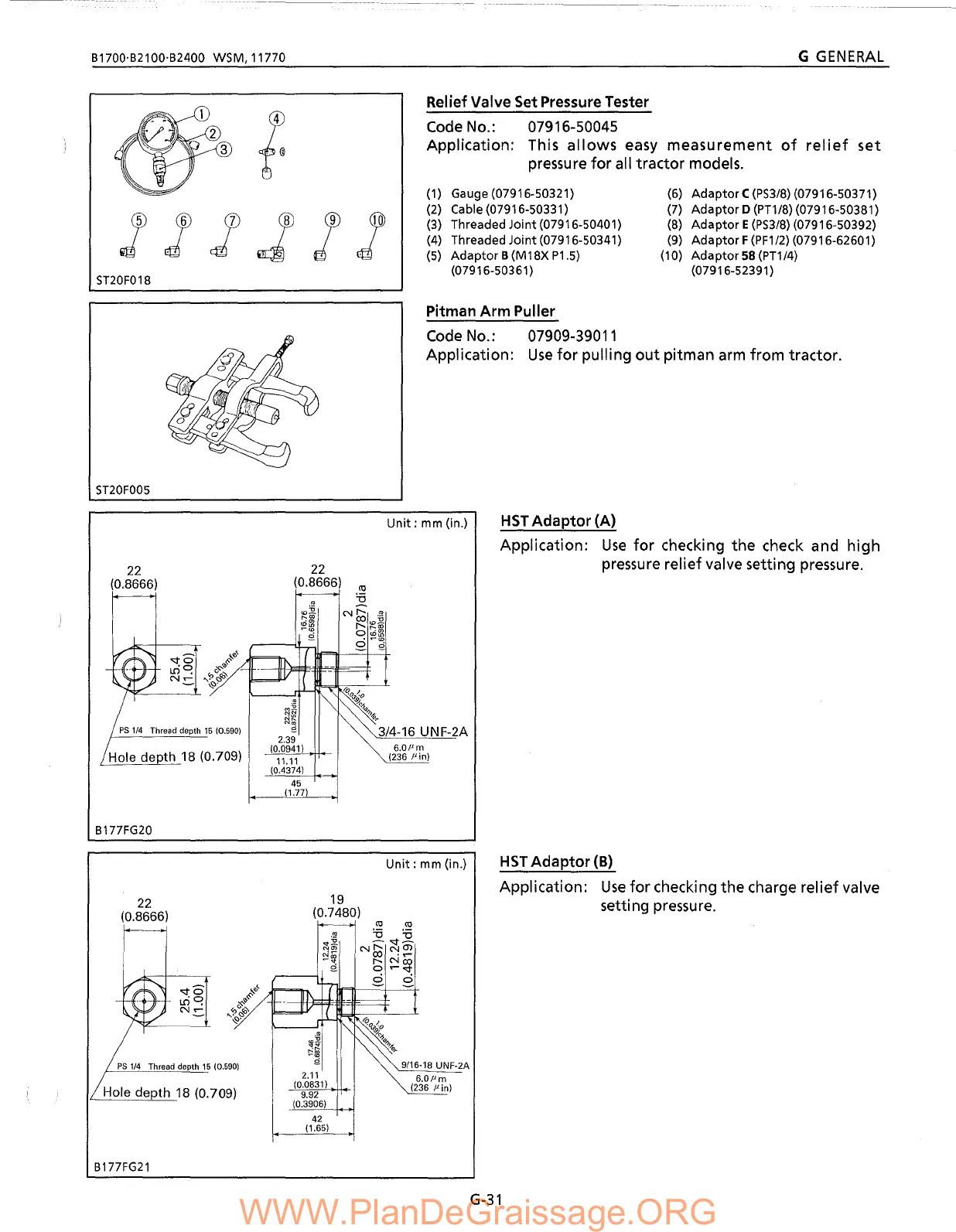

Relief Valve Set Pressure Tester
Code No.: 07916-50045
Application: This allows easy measurement of relief set
pressure for all tractor models.
I
ST20F018
(1) Gauge (07916-50321)
(2) Cable (07916-50331)
(3) Threaded Joint (07916-50401)
(4) Threaded Joint (07916-50341)
(5)
Adaptor B (M18X P1.5)
(07916-50361)
(6)
Adaptor C (PS3/8) (07916-50371)
(7) Ada ptor 0 (PT1 18) (07916-50381)
(8)
Adaptor E (PS3/8) (07916-50392)
(9) Adaptor F (PF1/2) (07916-62601)
(10)
Adaptor 58 (PT1/4)
(07916-52391)
Pitman Arm Puller
Code No.: 07909-39011
Application: Use for pulling out pitman arm from tractor.
ST20F005
22
(0.8666)
PS 1/4 Thread depth 15 10.590)
Hole depth 18 (0.709)
22
(0.8666)
2.39
(0.0941)
11.11
(0.4374)
Unit: mm (in.)
3/4-16 UNF-2A
6.01'm
(236I'in)
HST Adaptor (A)
Application: Use for checking the check and high
pressure relief valve setting pressure.
45
(1.77)
B177FG20
HST Adaptor (B)
Application: Use for checking the charge relief valve
setting pressure.
9/16-18 UNF-2A
6.01'm
(236 I'in)
Unit: mm (in.)
19
(0.7480)
2.11
(0.0831)
9.92
(0.3906)
42
(1.65)
PS
1/4 Thread depth 15 10.590)
22
(0.8666)
B177FG21
