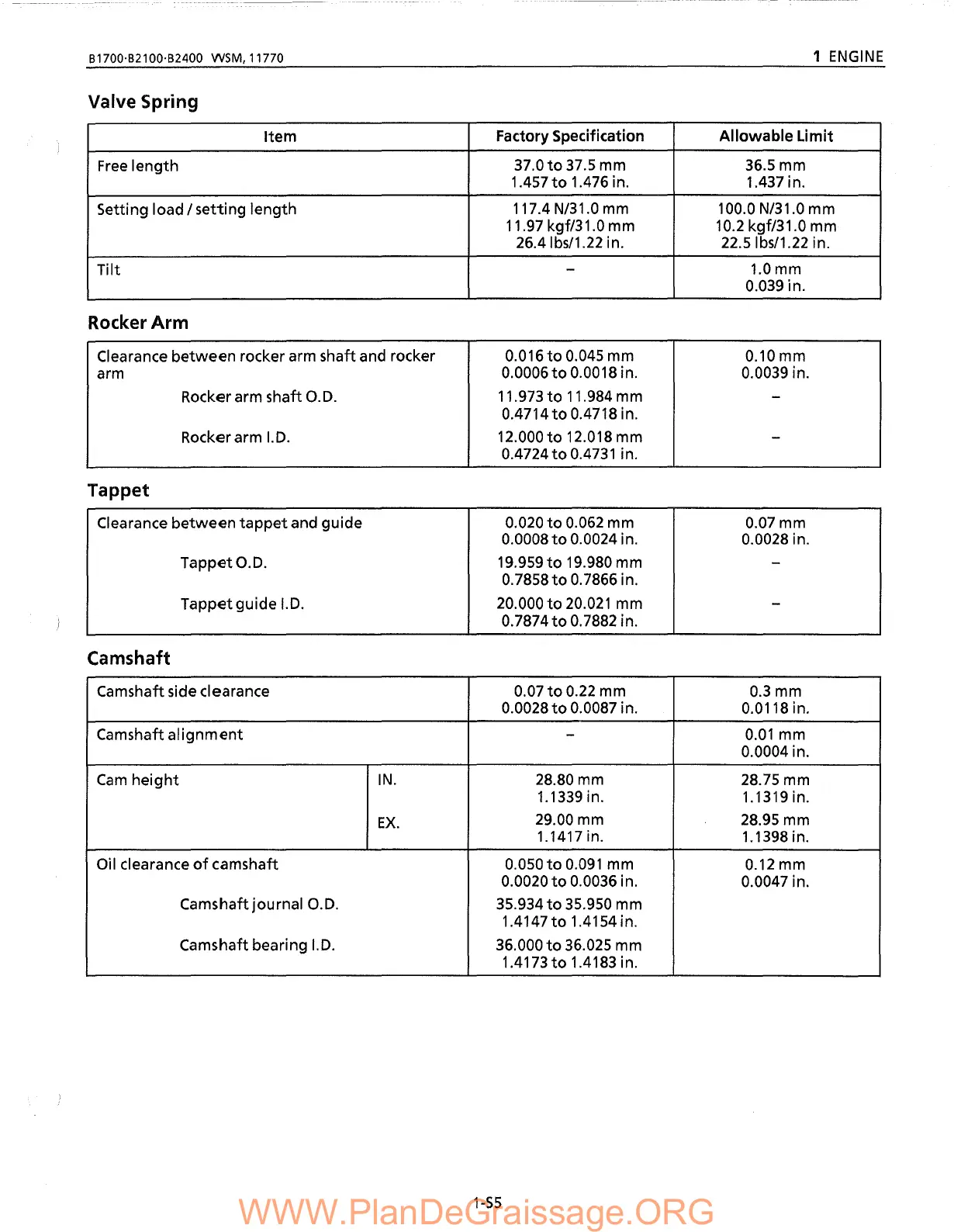

61700·62100·62400 WSM,11770
Valve Spring
1
ENGINE
Item
Factory Specification
Allowable
Limit
Free
length
37.0
to
37.5 mm 36.5 mm
1.457
to
1.476 in. 1.437 in.
Setting load /
setting
length
117.4 N/31.0 mm 100.0 N/31.0 mm
11.97 kgf/31.0 mm 10.2 kgf/31.0 mm
26.4lbs/l.22 in. 22.5 Ibs/l.22 in.
Tilt
-
1.0mm
0.039 in.
Rocker
Arm
Clearance
between
rocker arm shaft and rocker
0.016to
0.045 mm
0.10mm
arm
0.0006to
0.0018 in. 0.0039 in.
Rocker arm shaft O.D. 11.973
to
11.984 mm
-
0.4714to
0.4718 in.
Rocker arm I.D.
12.000
to
12.018 mm
-
0.4724
to
0.4731
in.
Tappet
Clearance
between
tappet
and
guide
0.020
to
0.062 mm 0.07 mm
0.0008to
0.0024 in. 0.0028 in.
TappetO.D.
19.959to
19.980 mm
-
0.7858
to
0.7866 in.
Tappet
guide
I.D.
20.000
to
20.021
mm
-
0.7874
to
0.7882 in.
Camshaft
Camshaft side clearance
0.07
to
0.22 mm
0.3mm
0.0028
to
0.0087 in. 0.0118in.
Camshaft
alignment
-
0.01
mm
0.0004 in.
Cam
height
IN.
28.80 mm
28.75 mm
1.1339in.
1.1319in.
EX.
29.00 mm 28.95mm
1.1417in.
1.1398in.
Oil clearance
of
camshaft 0.050
to
0.091
mm
0.12 mm
0.0020
to
0.0036 in. 0.0047 in.
Camshaft
journal
O.D. 35.934
to
35.950 mm
1.4147to 1.4154in.
Camshaft bearing I.D.
36.000
to
36.025 mm
1.4173
to
1.4183 in.
1-S5
