ASSEMBLY INSTRUCTIONS8

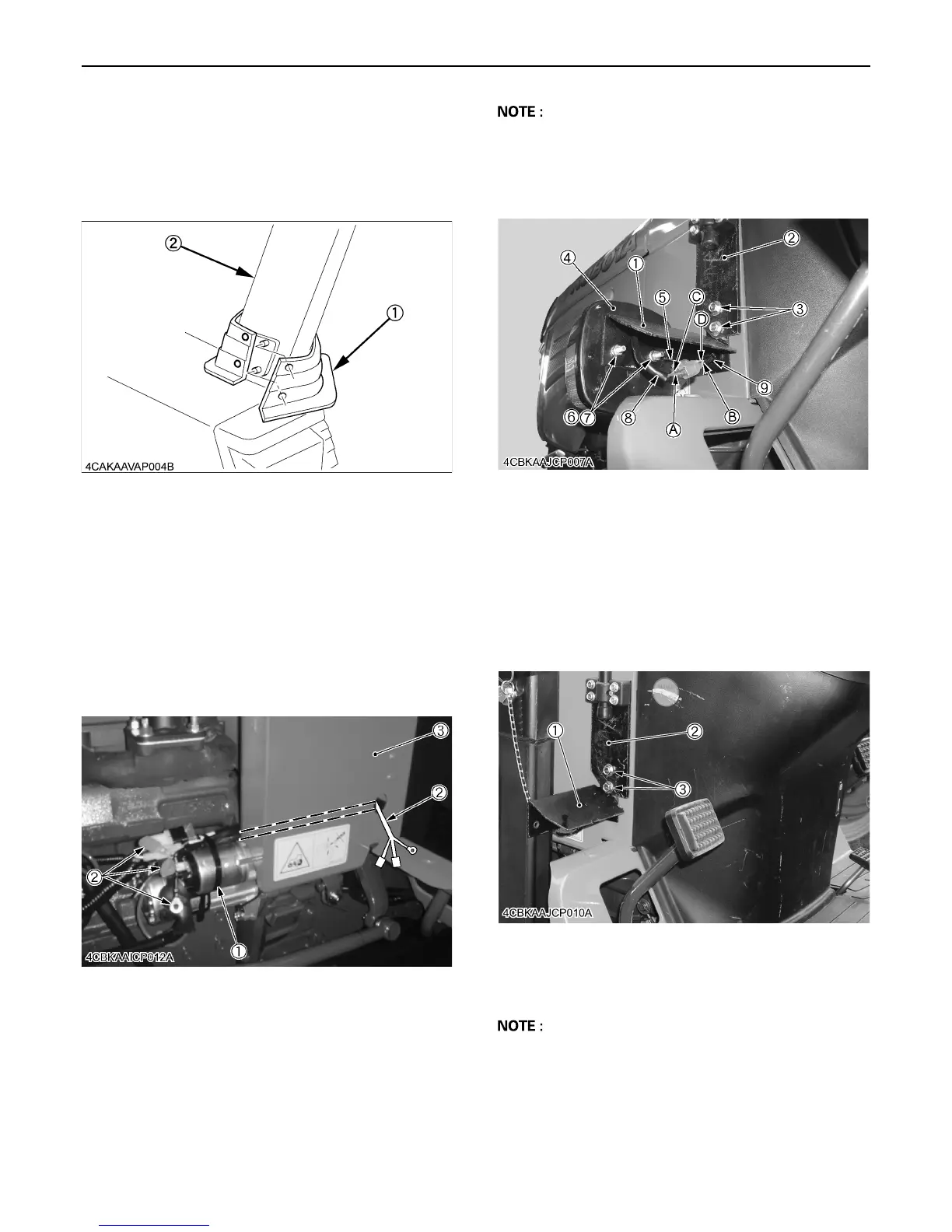

BAttaching the ROPS Cover
Insert the ROPS cover (1) onto the ROPS frame (2).
Be sure the cutting face of the ROPS cover is towards the
inside of the tractor as shown below.
BAttaching the Front Combination Light
and Rearview Mirror
[Rear and Mid mount type ROPS]
1. Loosen the cord band (1), draw out the combination
light wire harness (2) only. Secure the other wire
harness with the cord band in position.
2. Pass the combination light wire harness inside of the
center pillar (3). Take the combination light wire
harness out of the hole of the center pillar. [LH side
only]
[Rear mount type ROPS]
3. Attach the front winker stay LH (1) and rearview mirror
stay (2) with the M8 x 25 bolts (3).
4. Attach the front winker stay RH with the M8 x 25 bolts
(3).
5. Attach the front combination lights (4) and wire
harness (5) to the front winker stay with the star
washers (6) and M6 nuts (7). [Both sides]
A Install the front turn signal / hazard light at the upper
position.
6. Connect the combination light cable (8) to the wire
harness (9). [Both sides]
A Install the front turn signal / hazard light at the upper
position.
(A) Red
(B) Yellow
(C) Orange
(D) Pink
[Mid mount type ROPS]
3. Attach the front winker stay LH (1) and rearview mirror
stay (2) with the M8 x 25 bolts (3).
4. Attach the front winker stay RH with the M8 x 25 bolts
(3).
5. Attach the front combination lights (4) and wire
harness (5) to the front winker stay with the star
washers (6) and M6 nuts (7). [Both sides]
6. Connect the combination light cable (8) to the wire
harness (9). [Both sides]
