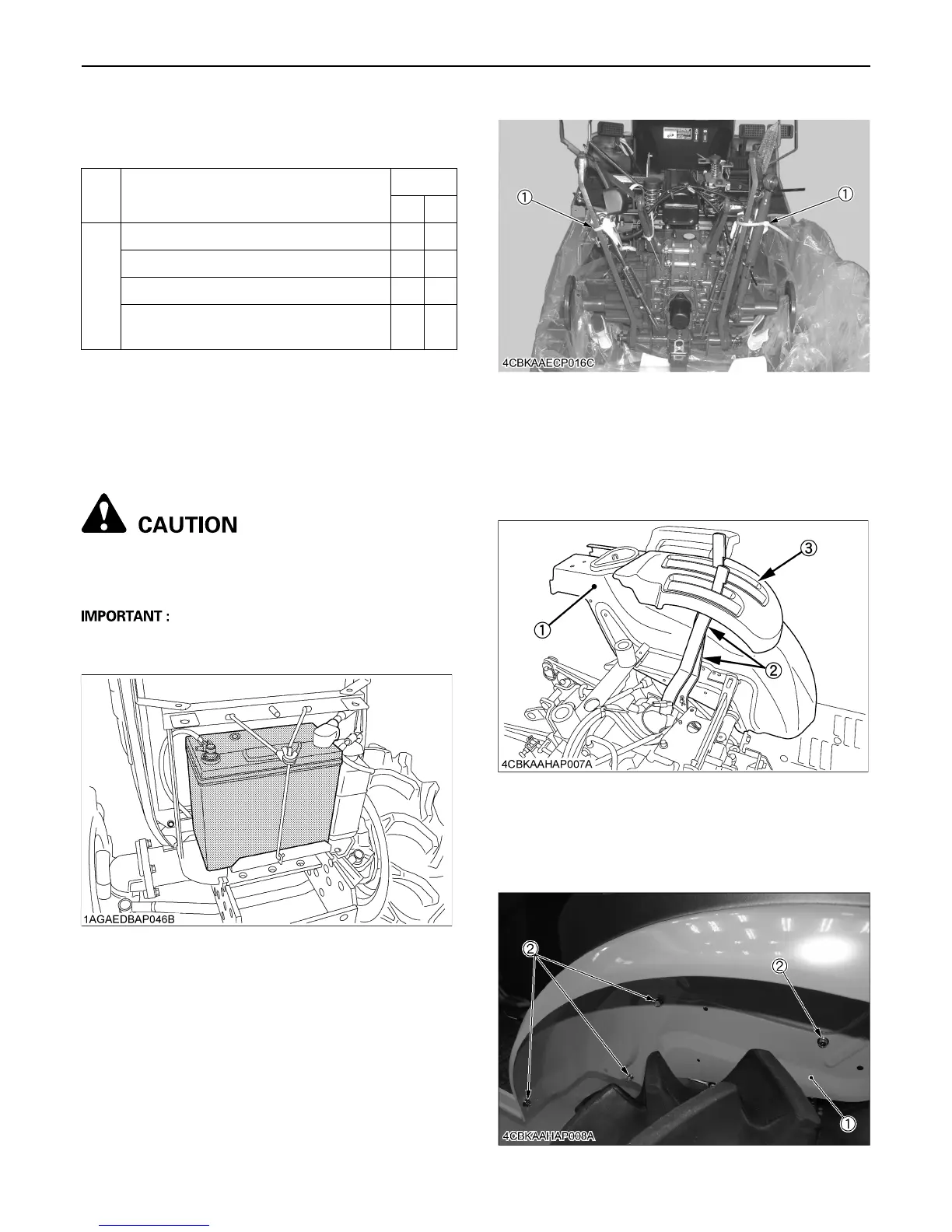

5ASSEMBLY INSTRUCTIONS
BContents of Nylon Bag Attached with the
Accessory Case
A : Rear mount type ROPS / B : Mid mount type ROPS
ASSEMBLY
BRemoving the Battery
Take out the battery.
Charge the battery as indicated in the operator's manual.
To avoid personal injury:
A Thoroughly read the Operator's manual before
charging.
A Insufficient charging will cause the battery to run down
quickly, resulting in premature battery failure.
BUnpacking the 3-Point Link
1. Cut off the wires and release the three-point link.
2. Disconnect the lower link (1) from the three-point link
shaft.
3. Remove the collar (2) from the three-point link shaft.
BMounting the Right and Left Fenders
1. Move the left-side two levers of the tractor to the low
position.
2. Tilt the front of the left-hand fender (1), insert the two
levers (2) in the lever guide (3).
3. For the right-hand fender, insert the lever in the lever
guide.
4. Secure the fender (LH and RH) (1) with the eight M8
bolts (2).
No. DESCRIPTION
UNIT
AB
27
RING 2 2
JOINT PIN 2 2
BOLT (M8 x 20) for FENDER 8 8
3-POINT HITCH LOWERING
SPEED KNOB
11
To Next Page
