7ASSEMBLY INSTRUCTIONS

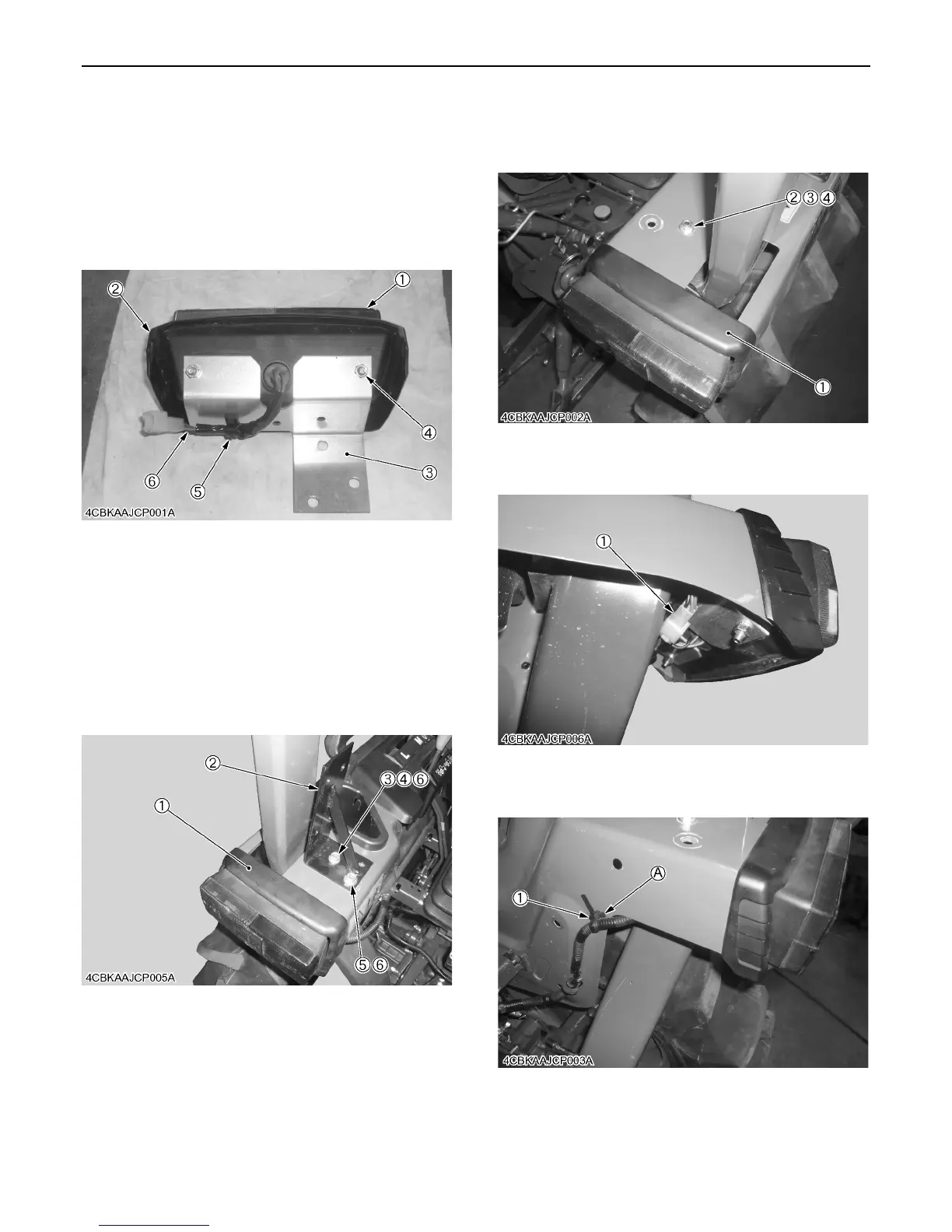

BAttaching the Tail Light
1. Attach the tail light (1) to the tail light cover (2).
2. Attach the tail light stay (3) to the tail light cover (2) with
the nuts (4) and tighten them.
3. Insert the cord clamp (5) into the hole of tail light stay
and attach the rear combination light cables (6) to the
cord clamp (5).
4. [Rear mount type ROPS]
Install the tail light assembly (1) and license holder
stay (2) at the left rear of the tractor with the step bolt
(3), rubber cushion (4), M8 x 20 bolt (5), and M8 nuts
(6).
[Mid mount type ROPS]
Install the tail light assembly (1) at the left rear of the
tractor with the step bolt (3), rubber cushion (4), and
M8 nuts (6).
5. Install the tail light assembly (1) with the step bolt (2),
rubber cushion (3), and M8 nut (4) to the right rear of
the tractor.
6. Connect the rear combination light cables to the wire
harness cables with the 4-P coupler (1). (Both sides)
7. Insert the cord clamp of wire harness (1) into the hole
(A) of fender (RH and LH).
To Next Page
