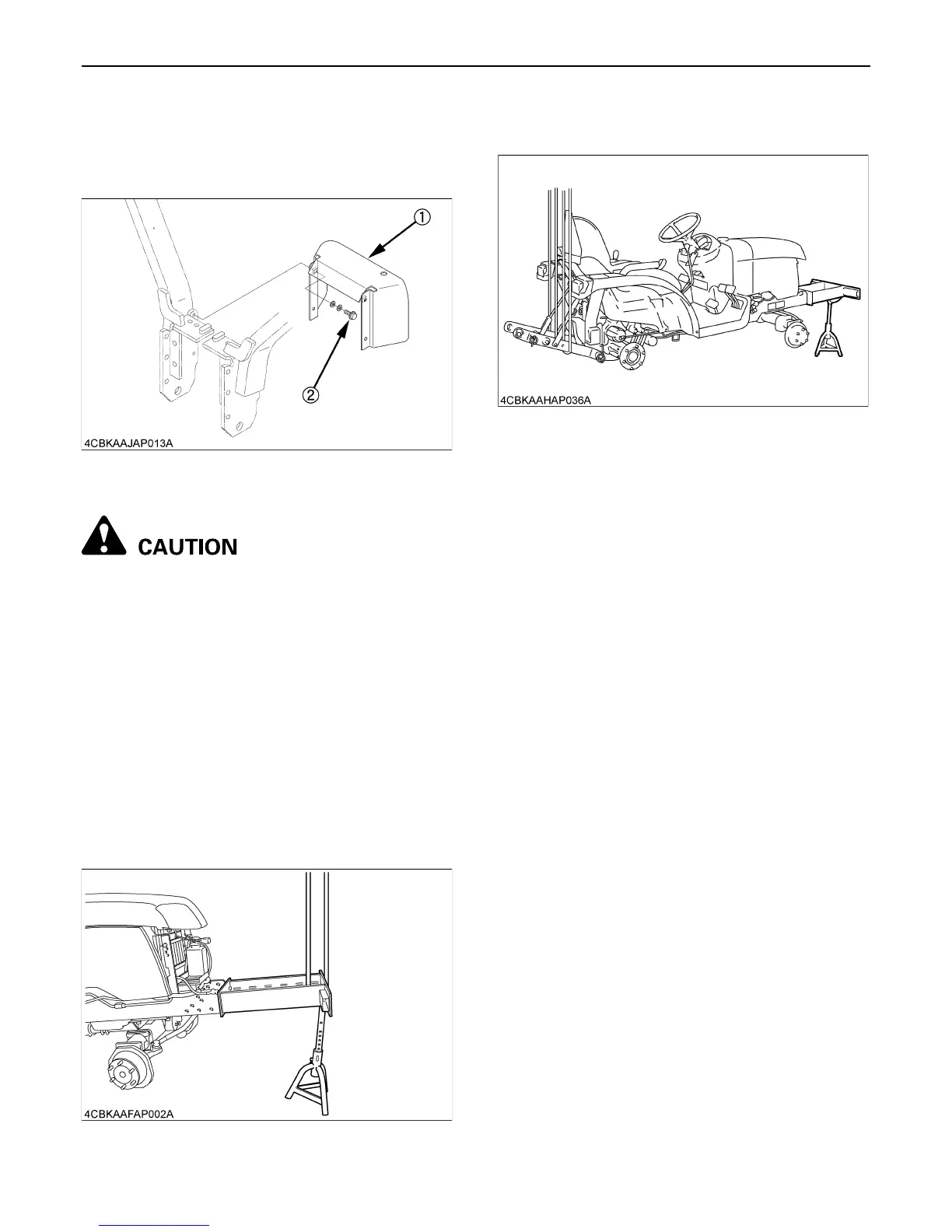

13ASSEMBLY INSTRUCTIONS
BAttaching the PTO Cover
1. Attach the PTO cover (1) to the lower link stay with the
M8 x 25 bolts (2).
BHoisting the Tractor
To avoid personal injury:
A Set blocks and/or safety stands under the
tractor when suspended, to prevent falling,
before working under neath.
C Hoist and jigs
1. Use a 1 ton or larger hoist.
2. Use belt straps to protect the painted surfaces from
scratches.
3. Prepare blocks and safety stands.
C Hoist hook position
Never raise the front and rear ends at the same time.
A Front end: Fit the front hitch to the front bumper with
the four bolts. Lift the assembly as shown in the figure.
A Suspend the front jig, place a safety stands below and
put the jig on the safety stands.
A Rear end : Hook to lower links as indicated in the
figure.
