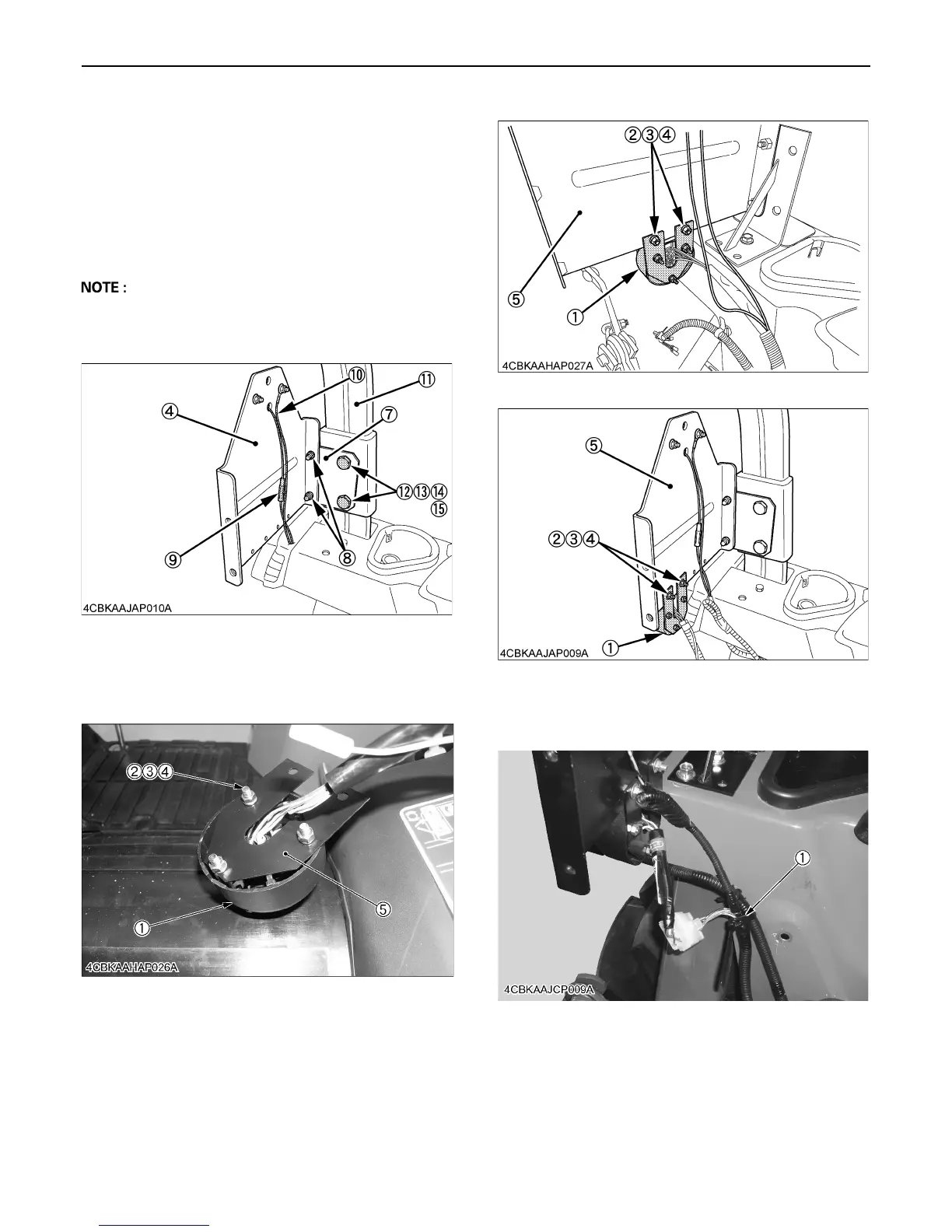

ASSEMBLY INSTRUCTIONS10
[Mid mount type ROPS]
3. Attach the license holder stay (7) to the ROPS frame
(11) with the bolts (9/16-18UNF x 3-1/4) (12), M14
plain washers (13), spring washers (9/16) (14) and
nuts (9/16-18UNF) (15).
4. Attach the license plate holder (4) to the license holder
stay (7) with the M8 x 20 bolts (8).
5. Connect the license light cables to the wire harness
cables with the 1-P coupler (9).
A When attaching the license light (2), apply the ground
(10) between the license plate holder (4) and the
flange nut (6) as shown below.
[Rear and Mid mount type ROPS]
6. Attach the trailer electrical outlet (1) to the trailer
socket stay (5) with the M5 screw (2), M5 nuts (3), and
spring washers (4).
7. Attach the trailer electrical outlet (1) to the license plate
holder (5) with the M5 screws (2), M5 nuts (3) and
spring washers (4).
[Rear mount type ROPS]
[Mid mount type ROPS]
[Rear and Mid mount type ROPS]
8. Clamp the wire harness with the cord band (1) as
shown in the photo.
BMounting the Front Hitch
1. Mount the front hitch (1) on the bumper with four sets
of M12 x 35 bolt (2) and M12 nut (3).
2. Tightening torque for the M12 nut (3) and M12 bolt (2)
should be 77 to 99 N-m (7.9 to 9.2 kgf-m).
3. Insert the hitch pin (4) into the mounted hitch.
To Next Page
