ASSEMBLY
OM 0361BR-AC 13

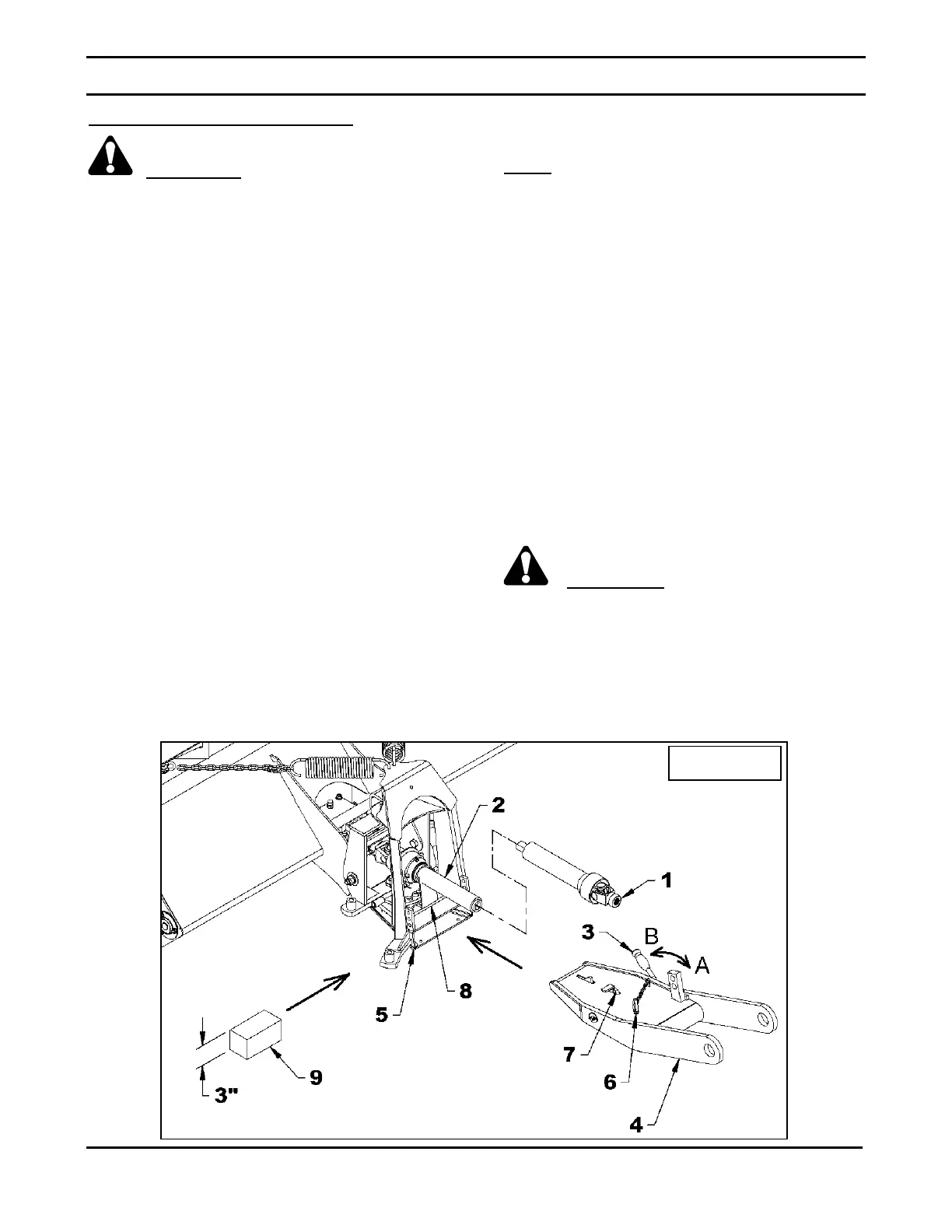

Installation of Rotary Broom (Figures 6-7)
WARNING: To avoid serious
personal injuries: Before getting off the
tractor: Park the tractor on level ground,
place the transmission in neutral, set the
parking brake, disengage the driving
system, lower the nose of the male quick
hitch as much as possible, place all levers
including auxiliary control levers in neutral,
shut off the engine and remove the ignition
key.
1. Place a wooden block about 3" thick
(item 9) under the nose of the female hitch
(item 5).
2. Connect the male driveline (item 1),
included in the drive kit, to the broom's
female driveline (item 2) then place it on
the support (item 8).
3. Place the engagement lever (item 3) in the
"A" position and remove the linchpin
(item 6) from the male hitch (item 4).
4. Lower the nose of the male hitch (item 4)
to about 3" from the ground and move the
tractor forward to insert the male hitch
(item 4) in the female hitch (item 5).
NOTE
: To make locking the male hitch
(item 4) easier, raise it to the highest possible
point with the tractor lift system. Then, placing
yourself in front of the broom, push it while
lifting the housing until the female hitch
(item 5) is sufficiently inserted in the male hitch
(item 4) so the engagement lever can be
locked.
5. Move the engagement lever (item 3) to the
"B" position and insert the linchpin (item 6)
in the hole of the male hitch latch (item 7).
6. Attach the driveline (item 1) to the
subframe drive shaft. To do so, slide the
driveline locking collar and push the yoke
on the drive shaft until the locking collar
goes back in place.
7. Turn the lever of the driveline support
(item 8) to release the driveline.
WARNING: To avoid serious
personal injuries: This shaft turns at high
revolution (RPM). If the collar is not locked
to the shaft at tractor end, or if the yoke at
the broom end is not secured properly (a
"click" must be heard), the driveline can fly
loose with great force capable of causing
serious injury or death.
Figure 6
