2-M3
GL6000, GL7000, GL9000, GL11000, WSM
GENERATOR

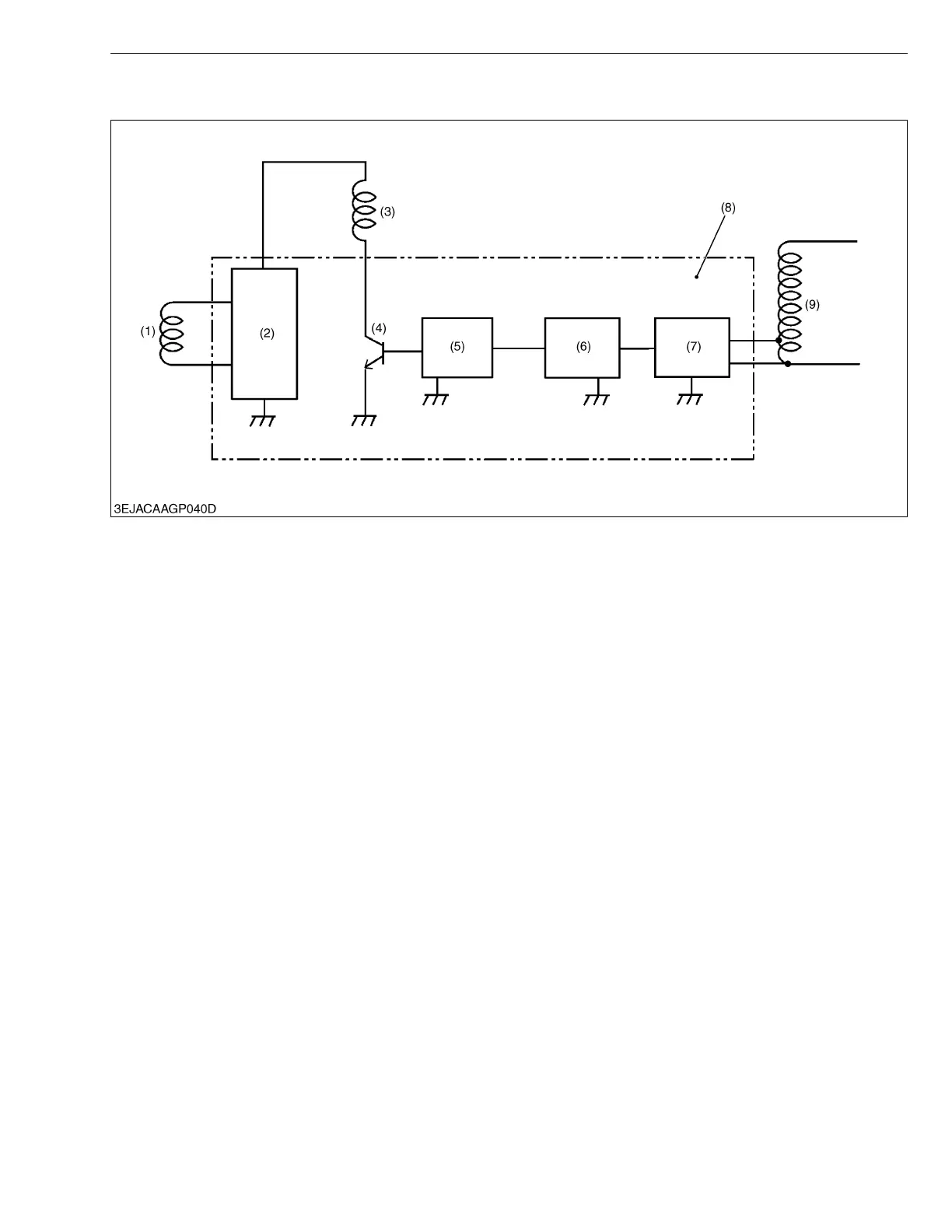

The block diagram of GL Series A.V.R.'s
is shown below. The A.
V.R. consists basically of
the compone
nts detector
(7) throug
h transistor
(4).
(1)
Exciter Co
il
(2)
Rectifier
(3)
Rotor Coil
(4)
T
r
ansistor
(5)
Drive Circuit
(6)
Controller
(7)
Detector
(8)
A.V
.R
.
(9)
Detection Coil
KiSC issued 05, 2015 A
