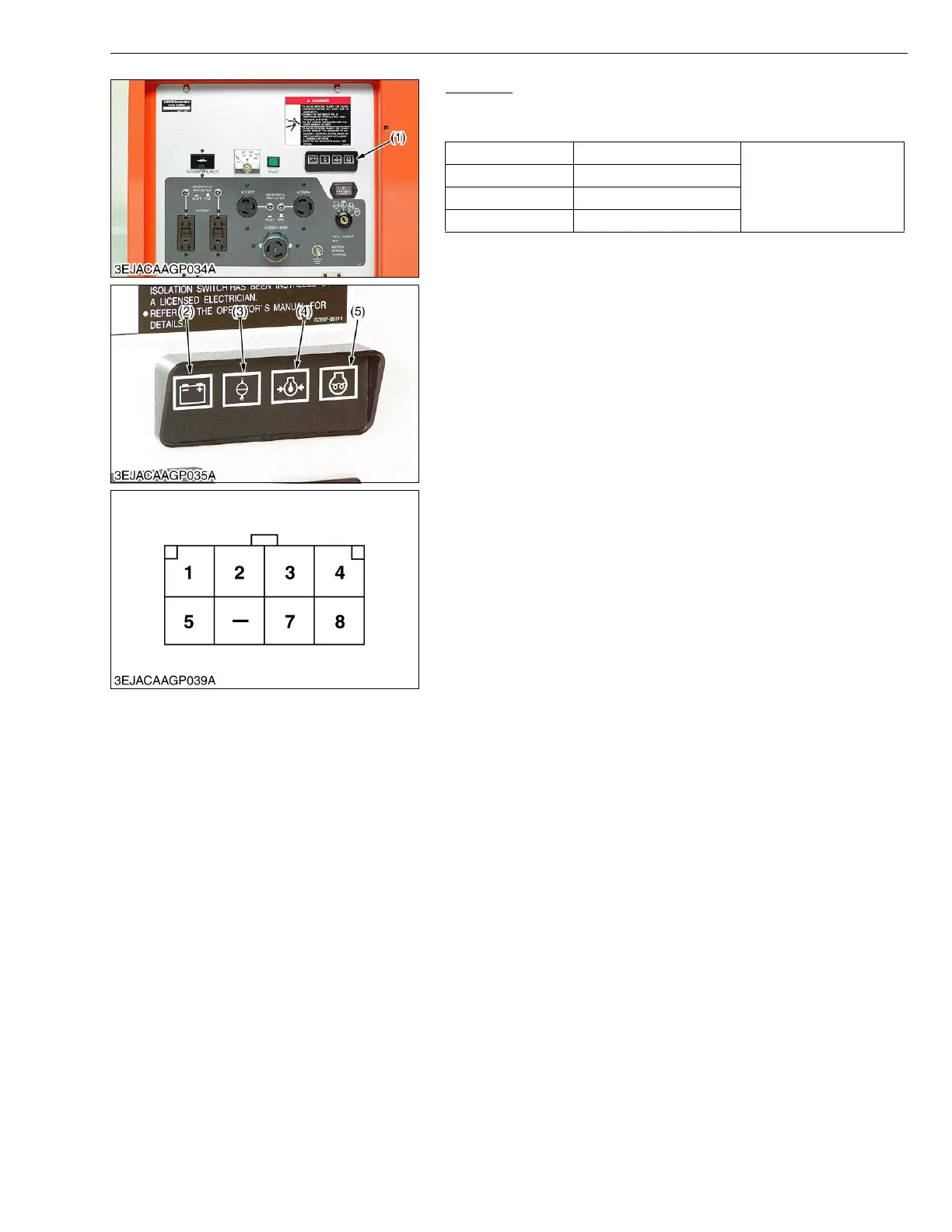

2-S15
GL6000, GL7000, GL9000, GL11000, WSM
GENERATOR
Pilot Box
1.
Continuity sh
ould exist be
tween the t
erminals for
each lamp
.
2.
If there is no con
t
inuity, change the la
mp.
W1022841
Charge
3
terminal –
4
terminal
Approx. 10
W
a
ter temperature
2
terminal –
8
terminal
Oil pressure
7
terminal –
8
terminal
Glow
1
terminal –
5
terminal
(1)
Pilot Box
(2)
Charge
(3)
W
ate
r T
emperature
(4)
Oil T
emperature
(5)
Glow
KiSC issued 05, 2015 A
145
147
Table of Contents
General
14
Default Chapter
4
Safety First
4
Specifications
9
Table of Contents
14
1 Identification
15
Model Name and Engine Serial Number
15
E4B Engine
16
Cylinder Number
17
2 Precaution
18
3 Handling Precautions for Electrical Parts and Wiring
19
Wiring
19
Battery
21
Fuse
21
Connector
21
Handling of Circuit Tester
22
4 Lubricants, Fuel and Coolant
23
5 Tightening Torques
25
General Use Screws, Bolt and Nuts
25
Stud Bolts
25
6 Maintenance Check List
26
7 Check and Maintenance
28
Daily Check
28
Check Points of Initial 50 Hours
29
Check Point of Every 50 Hours
30
Check Point of Every 100 Hours
30
Check Point of Every 200 Hours
32
Check Point of Every 300 Hours
33
Check Point of Every 400 Hours
33
Check Points of Every 500 Hours
34
Check Point of Every 800 Hours
36
Check Point of Every 1000 Hours
37
Check Point of Every 1500 Hours
37
Check Point of Every 1 Year
38
Check Point of Every 2 Years
38
8 Special Tools
40
Mechanism
45
Engine Body
46
Half-Floating Head Cover
46
Lubricating System
47
Cooling System
48
Fuel System
49
Servicing
50
1 Troubleshooting
51
2 Servicing Specifications
54
3 Tightening Torques
60
Tightening Torques for Special Use Screws, Bolt and Nuts
60
Tightening Torques for General Use Screws, Bolts and Nuts
61
4 Checking, Disassembling and Servicing
62
Checking and Adjusting
62
Engine Body
62
Lubricating System
65
Cooling System
66
Fuel System
68
Electrical System
71
Preparation
75
Separating Engine
75
Disassembling and Assembling
78
Cylinder Head and Valves
78
Timing Gears, Camshaft, Fuel Camshaft and Oil Pan
82
Piston and Connecting Rod
86
Crankshaft
88
Water Pump
90
Injection Nozzle
90
Starter
91
Servicing
93
Cylinder Head and Valves
93
Timing Gears, Camshaft and Fuel Camshaft
98
Piston and Connecting Rod
101
Crankshaft
103
Cylinder
107
Oil Pump
108
Starter
109
Mechanism
112
Structure
113
Automatic Voltage Regulator (A.V.r.)
114
Emergency Relay Circuit
117
General
117
Instructions
118
Earth
119
Wiring Diagram
120
Servicing
131
1 Troubleshooting
132
Generator
132
Engine Circuit
135
2 Servicing Specifications
137
3 Tightening Torques
139
Tightening Torques for Special Use Screws, Bolts and Nut
139
Tightening Torques for General Use Screws, Bolts and Nut
140
4 Checking, Disassembling and Servicing
141
Checking and Adjusting
141
Control Panel
141
Emergency Relay Activates
147
Disassembling and Assembling
148
External Components
148
Servicing
151
Terminal Voltage for each Part During Normal Periods (No-Load Periods)
151
Stator Coil
151
Rotor Coil
152
Exciter Coil
