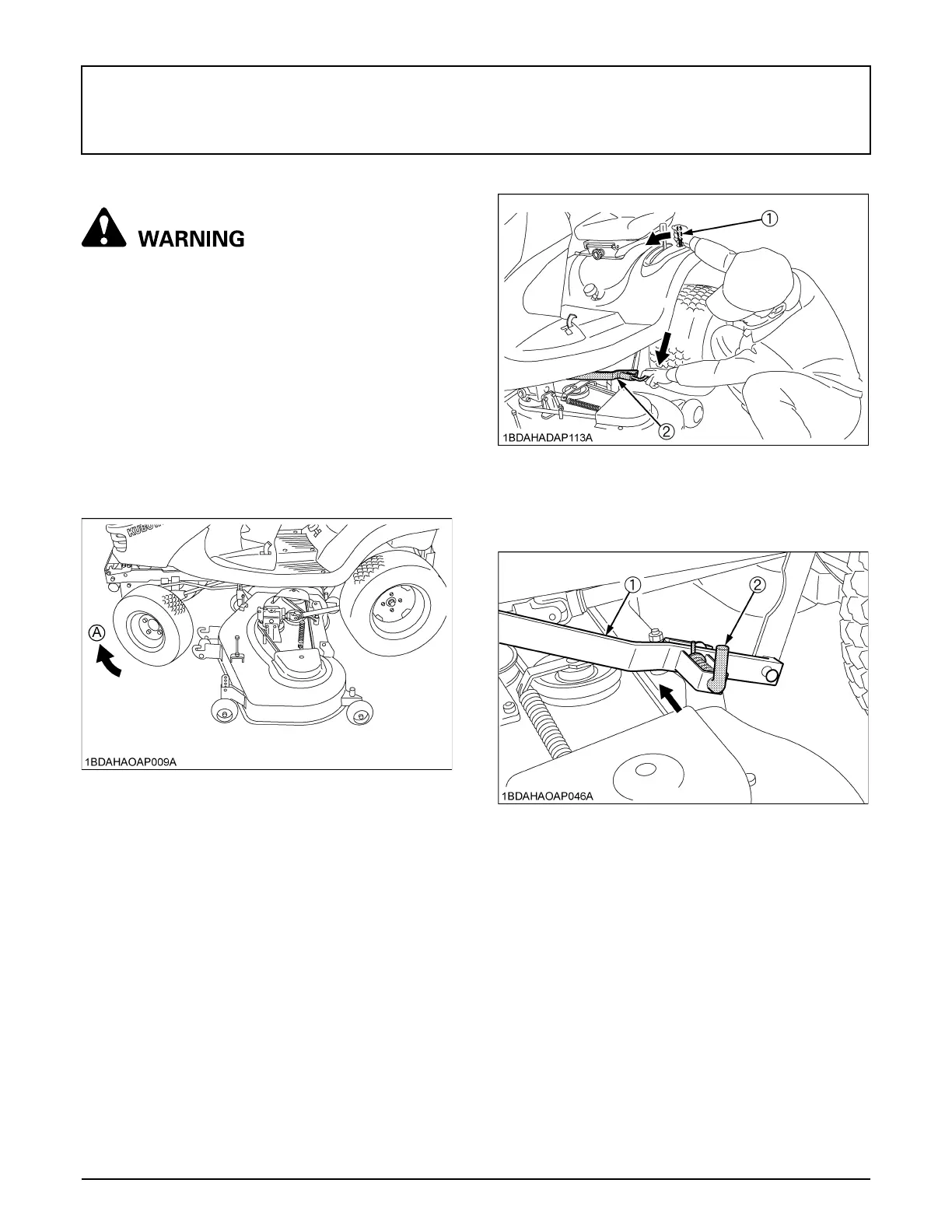

ATTACHING THE MOWER
To avoid serious injury:
A Shut off the engine and remove the key before
attaching the mower.
BMounting the Mower Deck
1. Park the machine on level ground and place the
mower deck at the left side of the machine.
2. Set the front anti-scalp rollers at the topmost position.
Turn the front wheel to the right.
3. Pull the hydraulic lift lever to raise rear links.
4. Adjust the height control dial to "1". Slide the mower
deck under the machine, and then return wheels to
straight ahead position.
5. Place the hydraulic lift lever in the "DOWN" position.
Push down the rear links to align with the mower
bracket.
6. Release the L pins lock to attach the rear links to the
mower deck.
7. Attach the front links to the front roller brackets.
(A) "RIGHT"
(1) Hydraulic lift lever
(2) Mower's rear link
(1) Mower's rear link
(2) L pin
