MOWER MOUNTING10
8. Loosen the locknut at both sides of the machine.
Adjust the cutting height fine tuning bolts so that the
difference between measurements (L) and (R) is less
than 3 mm (0.1 in.).
9. Lock the nuts.
ADJUSTING THE MOWER LIFT STOPPERS
The mower lift stoppers are designed for maintaining the
balance of the mower deck, when lifting the mower to the
highest position. Make sure that the stoppers are in
contact with the underside of the frame.
To adjust:
1. Lift the mower to the highest position.
2. Loosen the lock nuts and adjust the stoppers on both
sides so that the bolt heads are in contact with the
underside of the frame.
3. Lower the mower deck.
4. Turn the stoppers counterclockwise a half turn, and
then secure the lock nuts.
DISMOUNTING THE MOWER DECK
For dismounting the mower deck, reverse the above
procedures.

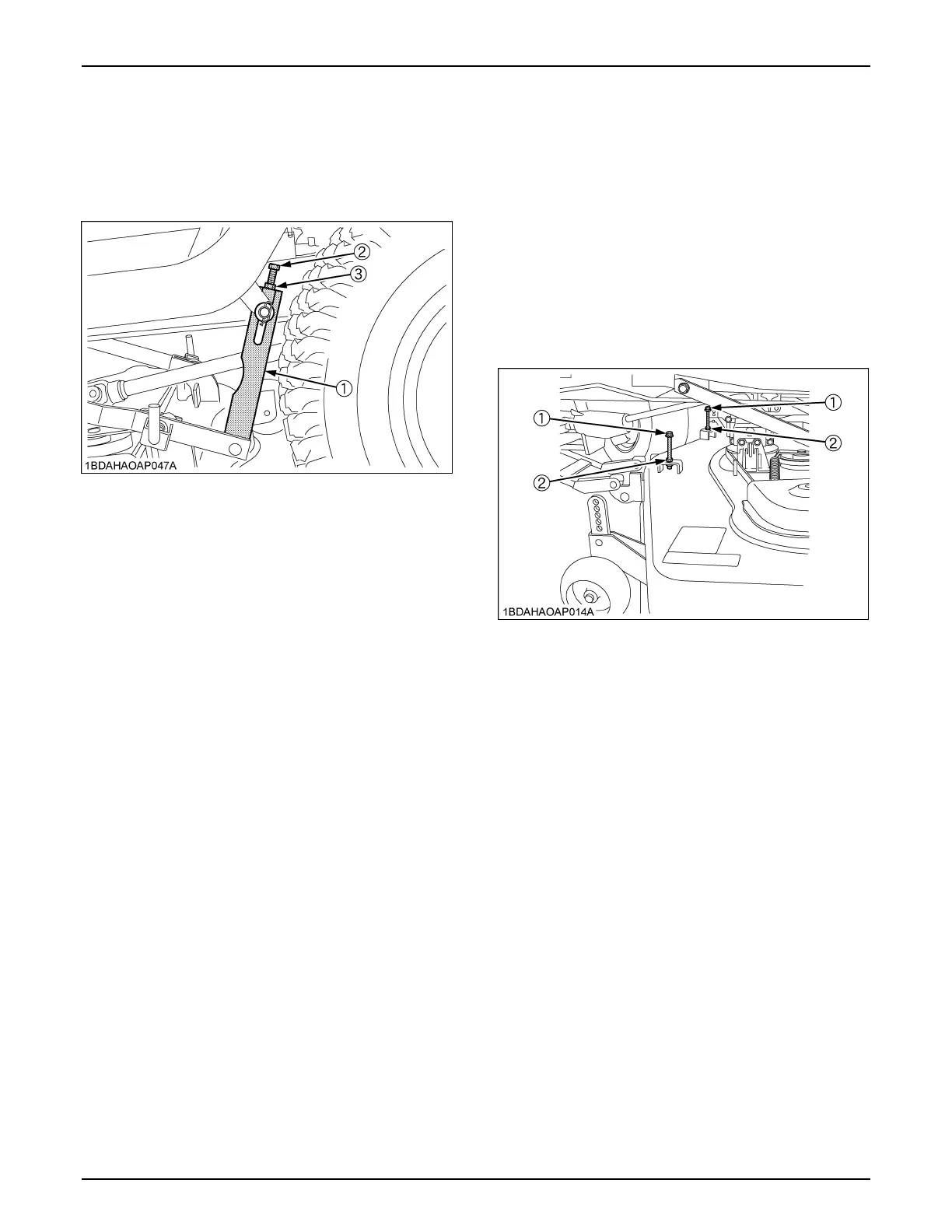

(1) Lift link
(2) Cutting height fine tuning bolt
(3) Lock nut
(1) Mower lift stopper
(2) Lock nut
