PERIODIC SERVICE62
A When replacing the fan drive belt, be careful not to
catch it on the cap under the water pump.
EVERY 150 HOURS
BChanging Gear Box Oil
To avoid serious injury:
A Be sure to stop the engine and remove the key
before changing the oil.
1. To drain the used oil, remove the filler plug at the gear
box, tilt the mower deck and drain the oil completely
into the oil pan.
2. Fill with the new oil up to the check plug port.
(See "LUBRICANTS, FUEL AND COOLANT" in
"MAINTENANCE" section.)
3. After filling reinstall the filler plug and the check plug.

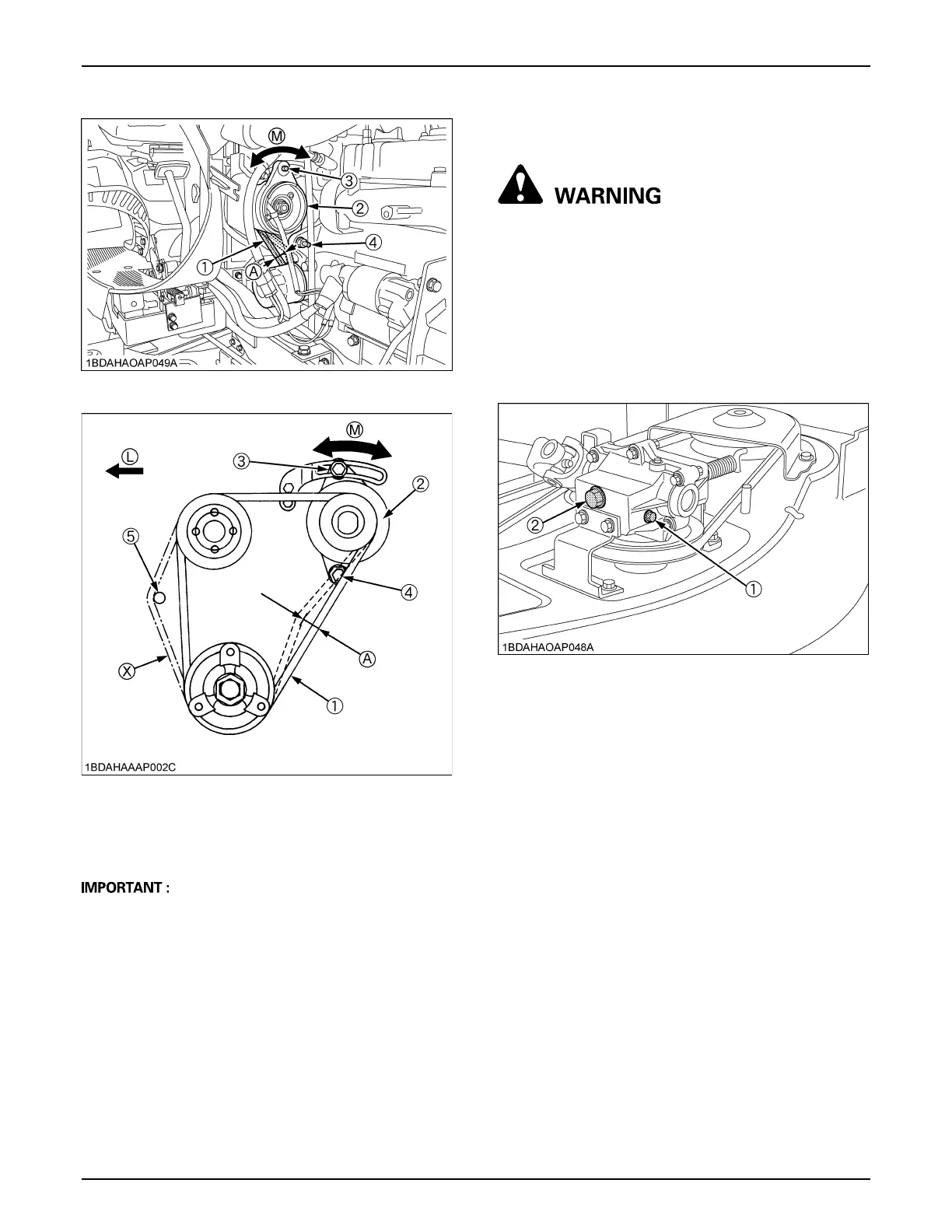

(1) Fan drive belt
(2) Dynamo
(3) Tension bolt
(4) Adjusting bolt
(5) Cap
(A) Approx. 10 mm (0.39 in.)
(M) "MOVE"
(L) "LEFT"
(X) Incorrect belt pass
(1) Check plug (Bolt)
(2) Oil filler plug
