A
ssembl
y
and functions
W9212-8235-4
03/2019
47

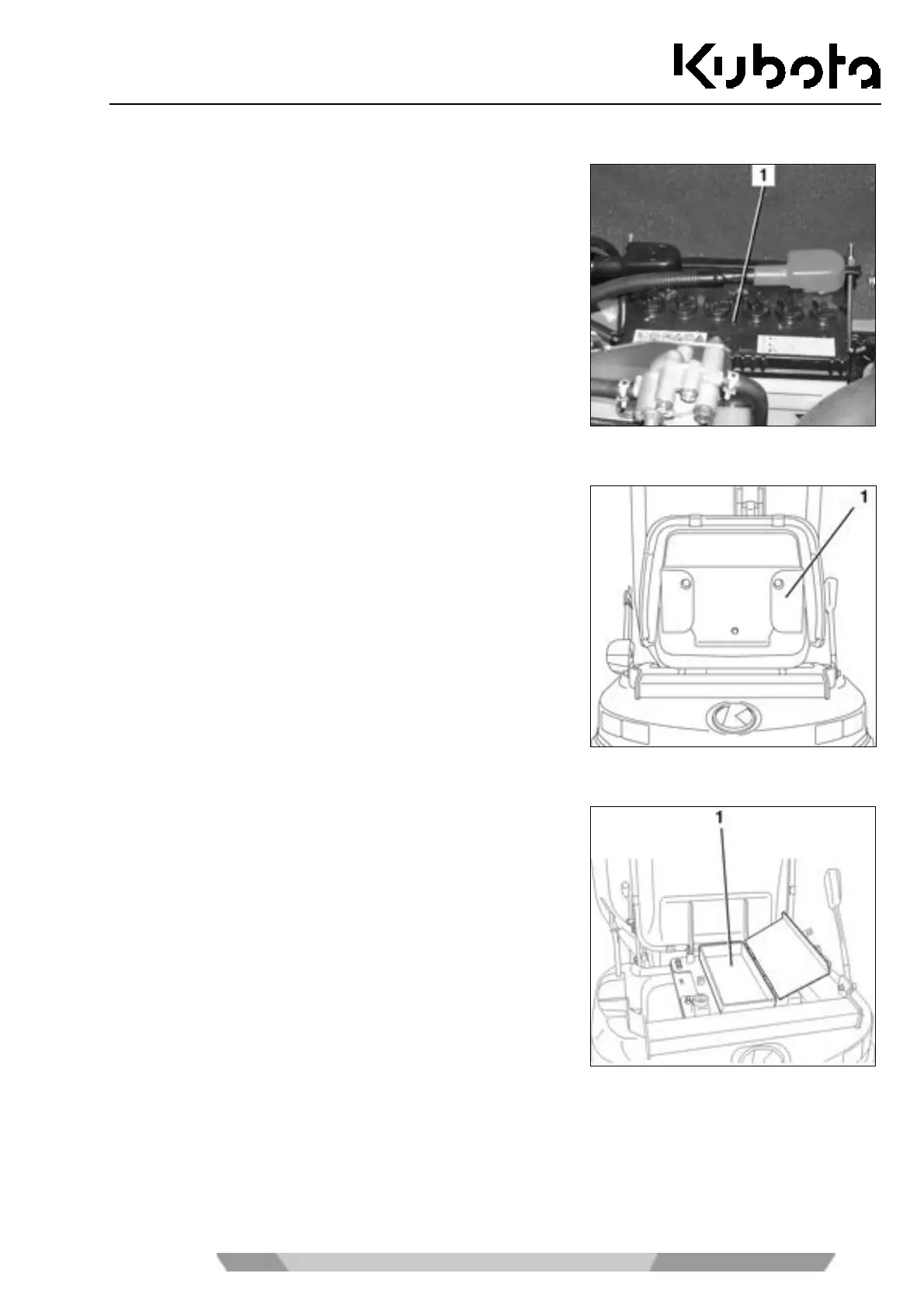

Battery
The
batter
y (1)
is
positio
ned
behin
d
the
engin
e
under
the
e
ngin
e
hood.
Tra
y
The tra
y (1) is pos
itioned
at the re
ar of the
operator
's seat.
Tool compartment
The tool com
partm
ent (1)
is locat
ed belo
w the operator'
s seat.
48
50
Table of Contents
Table of Contents
3
Abbreviations
7
General Symbols
8
General Information
9
Foreword
9
EC Declaration of Conformity
10
Date of Issue of the Operating Instructions
10
Operating Personnel
10
Location of the Operating Instructions
11
Spare Parts
11
Safety Rules
12
Basic Safety Instructions
12
Duties, Liability and Warranty
12
Safety Symbols
14
Approved Use
15
Unapproved Use
15
Special Duties of the Owner
15
Noise Emission and Vibration
16
Noise Emission
16
Vibrations
16
Danger, Warning and Safety Labels on the Machine
17
Safety Devices
26
Locking the Control Lever K008-3/U10-3
26
Locking the Control Lever U10-3 SIDE LEVER
26
Locking the Swivel Frame
27
Manually Stopping the Engine
27
Roll-Over Safety Bar
28
Seat Belt
28
Hazards Coming from the Hydraulic System
28
Fire Protection
29
Recovery, Loading and Transport
30
Safety Rules for Recovery
30
Safety Rules for Hoisting the Excavator with a Crane
30
Safety Rules for Transport
30
Recovery
31
Hoisting the Excavator with a Crane
31
Transport on a Flat Bed Trailer
33
Description of the Excavator
35
Model Overview
35
Model K008-3/U10-3
35
Variant U10-3 SIDE LEVER
35
Dimensions
36
Dimensions of the K008-3/U10-3
36
Specifications
38
Identification of the Excavator
40
Standard Equipment
40
Identification of the Engine
40
Assembly and Functions
41
Component Overview
41
Operator's Place
42
Control Console K008-3/U10-3
42
Control Console U10-3 SIDE LEVER
43
Description of the Components of the Control Console
44
Displays and Indicators - Description
45
Controls K008-3/U10-3
45
Controls U10-3 SIDE LEVER
46
Description of the Controls
46
Other Machine Components
48
Working Light
48
Fuse Box
48
Main Fuse
48
Battery
49
Tray
49
Tool Compartment
49
Fuel Tank Filler Opening
50
Engine Compartment
51
Hydraulic System for the K008-3
52
Hydraulic System for the U10-3
53
Operation
54
Safety Rules for Operation
54
Safety for Children
55
Guiding the Operator
55
Working in the Vicinity of Overhead Power Lines
56
Working in the Vicinity of Underground Power Lines
56
Initial Operation
57
Running-In of the Excavator
57
Operating the Excavator
57
Pre-Operational Services
57
Check the Engine Oil Level
57
Checking the Coolant Level
58
Checking the Radiator
58
Checking the V-Belt
58
Checking the Exhaust System for Leaks
59
Checking the Oil Level of the Hydraulic System
59
Checking the Water Separator of the Fuel System
60
Lubrication
60
Checking the Fuel Level of the Fuel Tank
62
Setting up the Workplace
62
Getting on the Excavator
62
Adjusting the Operator's Seat
62
Fastening the Seat Belt
63
Starting and Stopping the Engine
63
Starting the Engine
63
Stopping the Engine
65
Observation of the Displays after Starting and During Operation
65
Driving the Excavator
66
Adjusting the Track Width of the K008-3
67
Adjusting the Track Width of the U10-3
68
Swivelling the Roll-Over Safety Bar Upward and Downward and Locking It
69
Driving
70
Fast Drive Position U 10-3
71
Turning
71
Driving Uphill and Downhill
72
Notes for Rubber Crawler Operation
73
Operating the Controls During Excavation Work
74
Operating the Dozer Blade
75
Overview of Control Lever Functions
75
Operating the Boom K008-3/U10-3
76
Operating the Boom U10-3 SIDE LEVER
76
Operating the Arm K008-3/U10-3
77
Operating the Arm U10-3 SIDE LEVER
78
Operating the Bucket K008-3/U10-3
78
Operating the Bucket U10-3 SIDE LEVER
79
Swivelling the Swivel Frame K008-3/U10-3
80
Swivelling the Swivel Frame U10-3 SIDE LEVER
80
Swinging the Boom
81
Operating the Auxiliary Port
82
Locking the Auxiliary Port Pedal
83
Pressure Relief of the Hydraulic System K008-3/U10-3
83
Pressure Relief of the Hydraulic System K008-3/U10-3
84
Placing out of Operation
85
Working Light
85
Cold Weather Operation
86
Necessary Preparations Prior to the Winter Season
86
Operation During the Winter Season
86
Jump-Starting the Excavator
87
Emergency Stop Functions
88
Manual Engine Stop
88
Refuelling the Excavator
89
Bleeding the Fuel System
89
Replacing the Fuses
90
Fuse Layout of the Fuse Box
90
Opening and Closing the Engine Hood
91
Replacing the Bucket
91
Troubleshooting
92
Safety Rules for Troubleshooting
92
Troubleshooting: Pre-Operational Services
92
Troubleshooting: Operation
93
Troubleshooting: Displays and Indicators
94
Maintenance
95
Safety Rules for Maintenance
95
Personnel Requirements
96
General Maintenance Chart: 50 to 500 Hours of Operation
97
General Maintenance Chart: 550 to 1000 Hours of Operation
98
Servicing Maintenance Chart: 50 to 500 Hours of Operation
99
Servicing Maintenance Chart: 550 to 1000 Hours of Operation
100
Cleaning the Excavator
101
Maintenance
101
Refilling the Coolant
101
Cleaning the Radiator
102
Checking and Adjusting the V-Belt Tension
102
Checking the Coolant Hoses
102
Replacing the Engine Oil and Oil Filter
103
Draining the Engine Oil
103
Replacing the Oil Filter
103
Filling the Engine Oil
104
Replacing the Coolant
105
Checking, Cleaning and Replacing the Air Filter
106
Replacing the Fuel Filter
107
Draining Water from the Fuel Tank
107
Topping up Hydraulic Oil
108
Working with the Battery
109
Battery Service
109
Charging the Battery
110
Checking the Battery
110
Removing/Installing and Replacing the Battery
111
Lubrication
111
Greasing the Swivel Gear
112
Greasing the Pitch Bearing
113
Greasing the Bucket Bolts
113
Checking and Adjusting the Crawler Tension
114
Checking the Crawler Tension
114
Adjusting the Crawler Tension
115
Greasing the Pilot Valve Linkage
115
Checking the Electric Cables and Connections
115
Checking and Replacing the Fuel Lines
116
Checking the Bolted Joints
117
Tightening Torque for Screws
117
Tightening Torque for Hose Clamps
117
Tightening Torque for Hydraulic Hoses
117
Tightening Torque for Hydraulic Pipes
118
Tightening Torque for Hydraulic Adapters
118
Recommended Lubricants
119
Repair Work on the Machine
121
Safety Inspection
122
Taking out of Service and Storage
123
Safety Rules for Taking out of Service and Storage
123
Storage Conditions
123
Measures before Taking out of Service
123
Measures During Taking out of Service
123
Start-Up after Taking out of Service
124
Lifting Capacity of the Excavator
125
Table Max. Lifting Load During Swivel Operation 360
127
Accessories
130
KUBOTA Bucket Accessories
130
