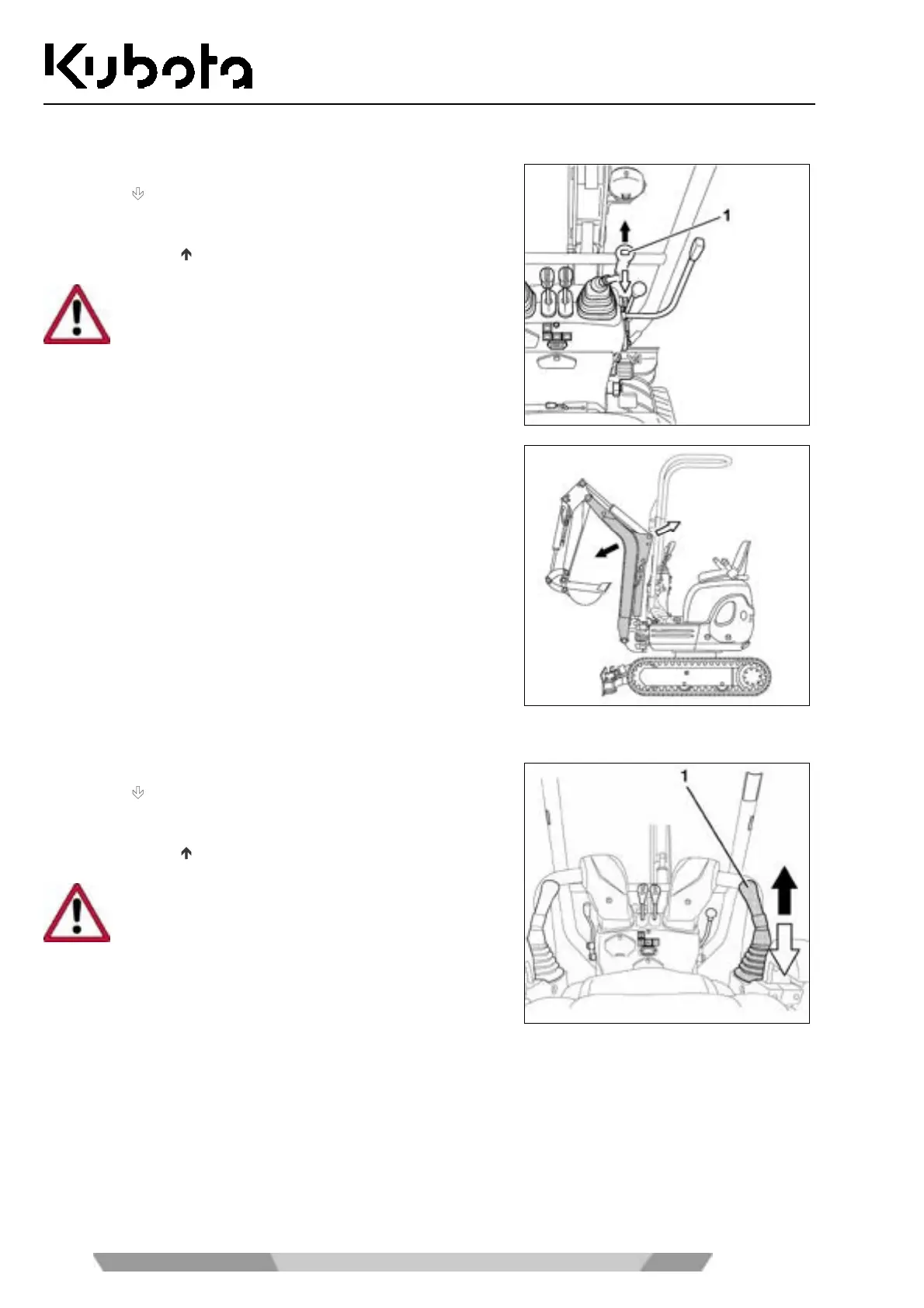

Operating the boom K008-3/U10-3
To raise the boom, pull the right control lever back (figure
position
).
To lower the boom, push the right control lever forward
(figure position
).
Watch the boom during lowering, so that the boom
or the bucket teeth do not hit the dozer blade.
The boom moves as shown in the figure.
Operating the boom U10-3 SIDE LEVER
To raise the boom, pull the right control lever back (figure
position
).
To lower the boom, push the right control lever forward
(figure position
).
Watch the boom during lowering, so that the boom
or the bucket teeth do not hit the dozer blade.
